Gude IP Power Switch

12-fold switched PDU with integrated measurement and evaluation capabilities per load output

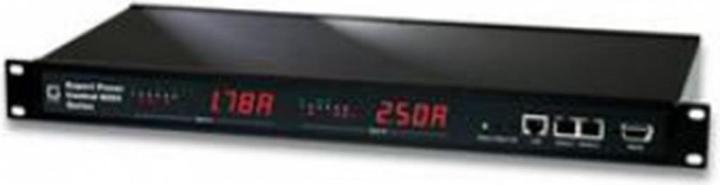

The Expert Power Control 8226-1 allows for switching and measuring the power consumption of electrical devices via a TCP/IP network or a serial connection. On the back of the device, there are 12 load outputs (max. 10 A each). These 12 power ports can be individually controlled through a web interface, serial interface, SNMP, or the button on the device. The power distribution unit features SNMPv3, SSL, and IPv6 capability, and supports Telnet, Radius, and Modbus TCP. The outputs of the Expert Power Control 8226-1 are grouped into two independent banks, each with six power ports. In addition to the two banks, each load output is equipped with two energy meters, allowing for the measurement of various electrical parameters. Through two separate supply lines, 32 A or 7500 W can be switched via the device (Dual Circuit). Thanks to sensor connections, optional sensors can monitor ambient temperature, humidity, and air pressure. The connected consumers can be switched off by the IP-Watchdog if preset sensor or current thresholds are exceeded.
