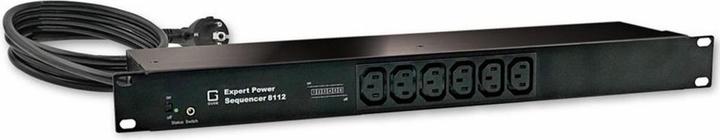

Gude 8112-2 Sequencer C13 UES Mains filter

Increase in operational safety through sequential switching of 6 consumers

Devices connected to the load outputs can be automatically turned on and off in a sequential manner, with the shutdown occurring in reverse order. The switching sequence is triggered by pressing the switch on the front of the 19-inch device. Each power port is switched on with a delay of 3 seconds. This time interval can be individually adjusted for each load output. The integrated Type 3 surge protection in the Expert Power Sequencer 8112-2 and 8112-4 effectively prevents damage to the device and the connected consumers. Additionally, the power distributors are equipped with a network filter that helps avoid interference noise in speakers or audio amplifiers.

Application Examples

• Increased operational safety by avoiding excessive inrush currents, e.g., in amplifiers, media technology installations, and LED walls
• Savings on electricity costs by turning off devices with high standby consumption, such as receivers, servers, external hard drives, displays, and audio amplifiers
• Critical devices, such as an audio amplifier, are switched on last and off first. The typical and unpleasant popping noises that can damage speakers and amplifiers are a thing of the past.
• The jack connection allows for the connection of an external button, enabling control outside of a 19-inch cabinet.

Usage Locations

• AV environments with audio components, such as in conference rooms, theaters/auditoriums, and small meeting rooms
• Installations for display and LED walls
• IT environments, such as in network and server cabinets (19 inches)
• AV systems in the smart home sector with amplifiers, speakers, and projectors.
