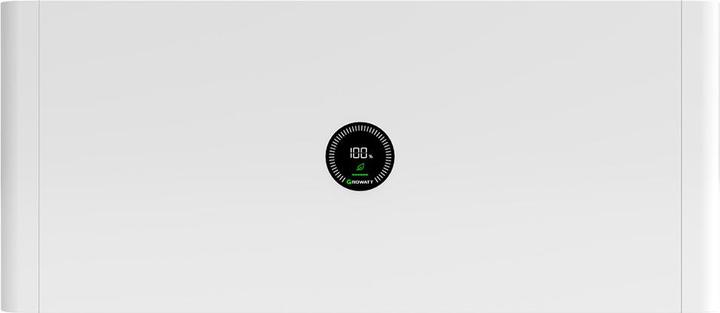

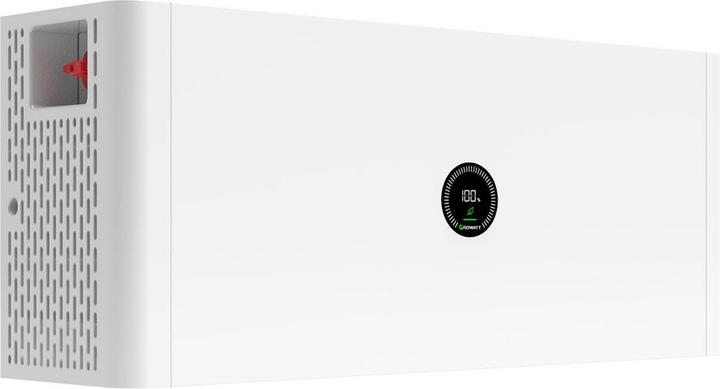

Growatt APX 98034-P2 Power module BMS

The new Growatt APX 98034-P2 Battery Management System (MPN 98034-P2) is a state-of-the-art control unit that protects each APX battery module from adverse conditions while ensuring safe and uninterrupted continuous operation. It does not matter how many modules are in operation at the same time; what is important is that one BMS is used per tower. A tower consists of at least 1 and a maximum of 6 Growatt APX 5.0P-B1 5kWh high-voltage battery modules, resulting in a storage capacity of 5-30 kWh.

Monitoring Parameters:

• SOC
• System Voltage
• System Current
• Cell Voltage
• Cell Temperature
• PCBA Temperature

The APX Battery System:

Thanks to its modular design, the APX system is flexible and can be expanded as needed. A battery tower can be built with a minimum of one and a maximum of 6 storage modules. One power module is required for operation per tower, which must be purchased separately. An additional base is required for floor mounting.

Technical Specifications:

• Dimensions: 690 x 185 x 295 mm
• Weight: 15 kg
• Max. Current: 30 A
• Peak Current: 34 A, 60 s
• Communication: RS485/CAN

Delivery Includes:

1x Growatt APX 98034-P2 BMS.
