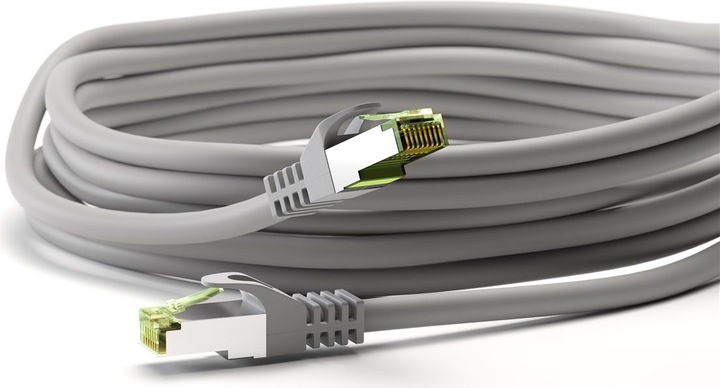

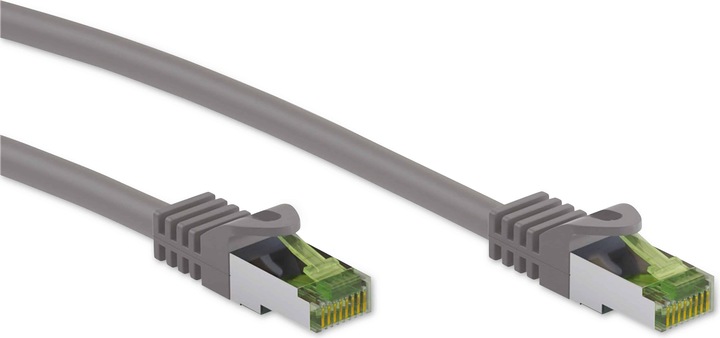

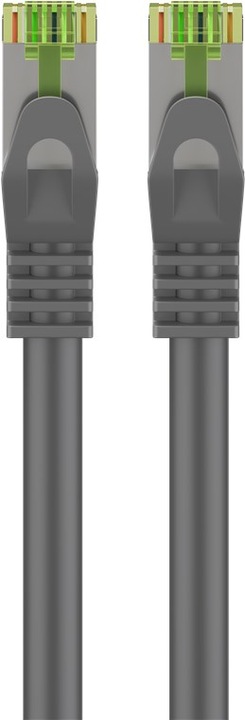

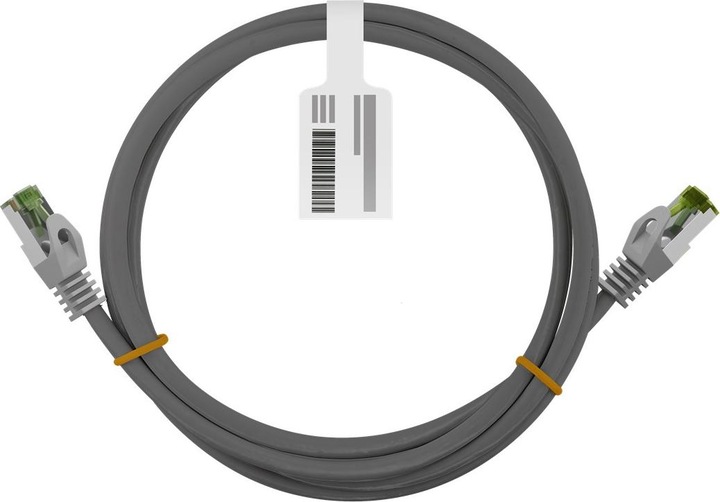

Goobay GHMT-certified CAT 8.1 patch cable, S/FTP PiMF, grey

S/FTP, CAT8.1, 3 m
Save CHF0.90 CHF3.18/1m
1Ratings
BrandMore from Goobay
Delivered between Wed, 15.4. and Sat, 18.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Length5

Product details

Only in combination with the GHMT-certified components listed below is the flawless functionality of this CAT-8.1 patch cable guaranteed for cabling runs. The transmission characteristics were tested in a 2-Connector Channel over a predefined transmission distance of 24 m according to the specifications for Class I up to 2 GHz per ANSI/TIA-568.2-D 2018-09: 2 Connector Channel Copper, Class I up to 2 GHz. GHMT type approval for balanced cable: Wentronic GmbH CAT 8 patch cable, article number: CAT 8.1 - 3 m S/FTP PiMF gray. Certified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117. Certified installation cables: 61126, 61127, 61128. Certified keystone coupler: 61142. The 3 m LAN cable supports 25GBase-T and 40GBase-T Ethernet networks, is 40 Gigabit capable, and backward compatible with 10BASE-T, 100BASE-TX, and 1000BASE-T. With a transmission bandwidth of up to 2000 MHz, this Ethernet cable has four times the bandwidth of CAT-6A cables. GHMT certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in the 2-Connector Channel 8.1 standard Class I with an operating frequency of up to 2 GHz. S/FTP overall shielding: aluminum foil shielding for individual pairs PiMF and aluminum braid shielding for the cable jacket. Equipped on both ends with RJ45 connectors 8P8C with 50 μm gold-plated contact surfaces and latch protection. The CAT-8 LAN cable is suitable for Power over Ethernet PoE, PoE+, UPoE, 4PPoE, and HDBaseT. Low smoke and halogen-free LSZH cable jacket.

Key specifications

Patch cable type
Copper cable

General information

Item number
24073973
Manufacturer
Goobay
Category
Network cables
Manufacturer no.
61117
Release date
20.3.2023

Colour

Cable colour
Grey

Material

Material
Copper
Material of the isolation
LSZH

Cable properties

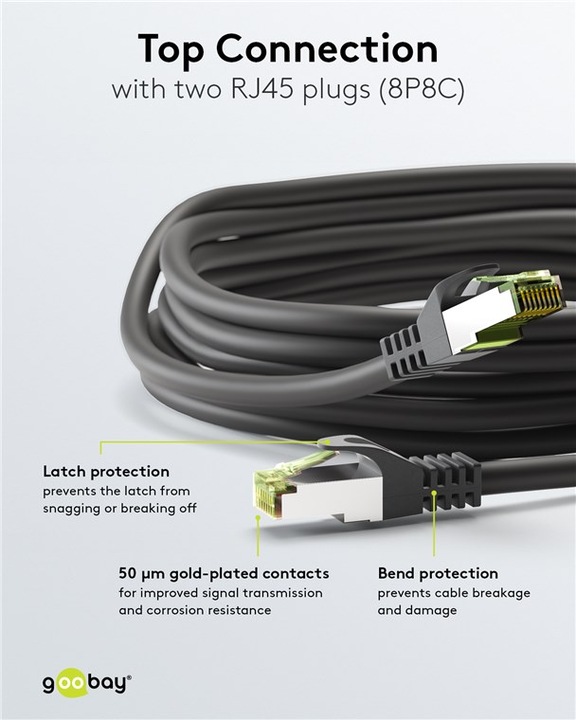

Connection A
RJ45
Connection B
RJ45
Cable Application
Network
Cable design
Round
Plug type
Gold-plated contacts
Cable connection
Connection (m/m)
American Wire Gauge (AWG)
26
Frequency
2000 MHz

Patch cable properties

Patch cable type
Copper cable
Patch cable Features
Halogen-free
Max. data transfer rate
5 GB/s

Twisted-pair cable properties

Cable category
CAT8.1

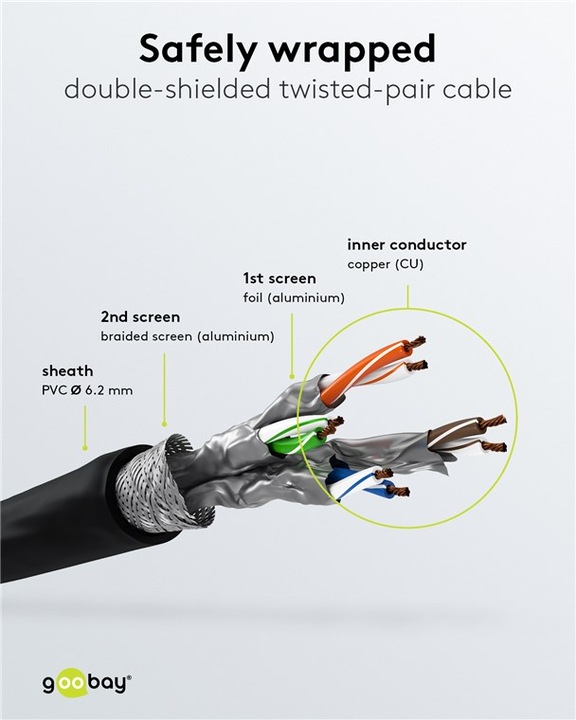

Shield
S/FTP

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
12.38 kg
Climate contribution
CHF 0.30

Scope of delivery

Items per sales unit
1x
Scope of delivery
Goobay GHMT-certified CAT 8.1 patch cable, Grey, S/FTP PiMF

Product dimensions

Diameter
6.20 mm
Length
3 m
Width
6.20 mm

Package dimensions

Length
18.30 cm
Width
15.90 cm
Height
2 cm
Weight
108 g

30-day right of return
24 Months Warranty (Bring-in)
