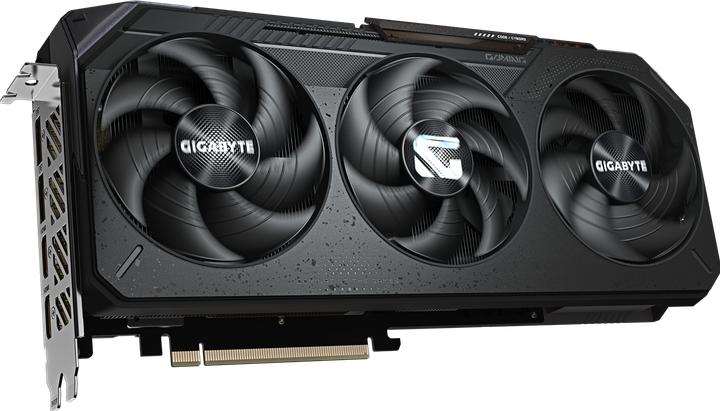

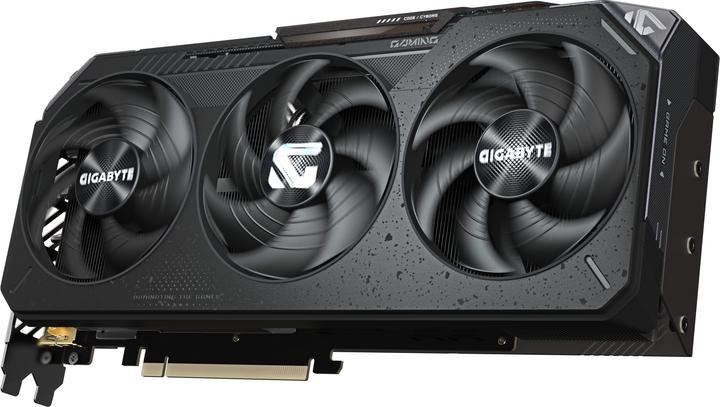

The Gigabyte Technology Radeon RX 9070 XT GAMING OC 16G is a powerful graphics card specifically designed for gaming enthusiasts. With 16 GB of GDDR6 memory, it delivers impressive performance and enables gaming at high resolutions, including 8K. This full-height graphics card falls into the high-end category and is equipped with the latest PCI Express 5.0 interface, ensuring fast data transfer. The active cooling system with three fans provides efficient heat dissipation, even during intense gaming sessions. The graphics card supports up to four connected monitors and offers a variety of video ports, including HDMI and DisplayPort, to ensure flexible connectivity. The Radeon RX 9070 XT is thus an excellent choice for anyone seeking a top-tier gaming experience.
PCI Express version | PCIe 5.0 |
Expansion card form factor | 2.7 Slots |
Graphics card model | Radeon RX 9070 XT |
Video memory clock | 20 GHz |
Graphics card cooling system | Active cooler |
Length | 28.80 cm |
Item number | 54089509 |
Manufacturer | Gigabyte |
Category | Graphics card |
Manufacturer no. | GV-R9070XTGAMING OC-16GD |
Release date | 6.3.2025 |
Sales rank in Category Graphics card | 13 of 1076 |
LED lighting | RGB |
Max. connected monitors | 4x |
PCI Express version | PCIe 5.0 |
Max. video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2.7 Slots |
Graphics chip (GPU) | AMD Radeon |
Graphics card model | Radeon RX 9070 XT |
Clock frequency | 2520 MHz |
Boost frequency | 3060 MHz |
Number of shaders | 4096x |
Video memory type | GDDR6 |
Storage capacity | 16 GB |
Video memory clock | 20 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 640 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 3x |
GPU microarchitecture | AMD RDNA 4 |
DirectX version | 12 |
OpenGL version | 4.6 |
Video connections | DisplayPort (2x), HDMI (2x) |
HDMI version | 2.1b |
DisplayPort version | 2.1a |
Min. recommended system performance | 850 W |
Power connectors | 3x 8-pin PCI-E |
Country of origin | China |
CO₂ emissions | 44.84 kg |
Climate contribution | CHF 1.07 |
Length | 28.80 cm |
Width | 13.20 cm |
Height | 5.60 cm |
Weight | 1.26 kg |
Length | 40.50 cm |
Width | 23 cm |
Height | 9 cm |
Weight | 1.76 kg |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Graphics card» category returned?
Source: Digitec GalaxusStrong and weak With the two new cards, there are also two new versions of the popular RX 9070 XT. AMD's current top GPU remains well cooled here too, but suffers from a high VRAM temperature, as with all the custom designs we are currently testing. In the Asus model, the latter is still within a tolerable range, while the Acer model goes a little overboard...
