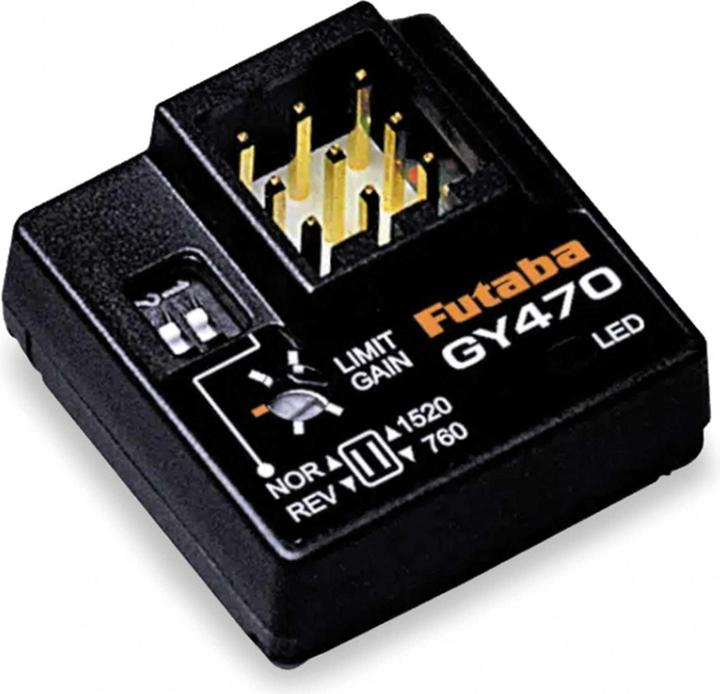

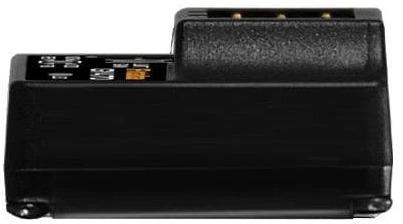

Futaba GY470 3D Gyro Heli Rudder

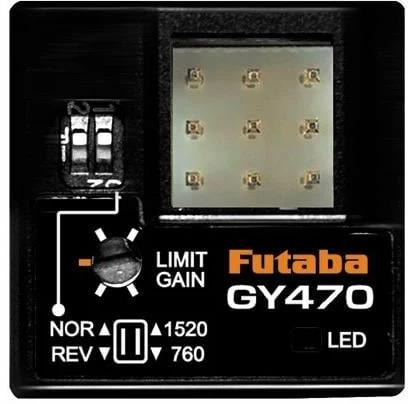

The latest gyro generation GY470 weighs only 3.7 g and is an advancement of the proven GY440. Utilizing the latest MEMS sensor technology (MEMS = Micro-Electro-Mechanical Systems), it achieves a compact size of just 20.5 x 20.5 x 11 mm. Another advantage of MEMS sensors is their speed; particularly for the rapid maneuvers of 3D aerobatics, the GY470 offers quick response behavior and a firm "lock-in." It is suitable for all types of helicopters (electric and combustion) as well as rotor diameters. It is also ideal for micro helicopters, as the low weight of small power E-Helis requires high control speeds. All necessary settings can be made via switches or controls on the gyro itself, eliminating the need for a PC and setup software. Both connection sides are plug-in and can be easily adapted to model requirements using different patch cables (plug/plug) of various lengths.

Note: For digital servos only! Basic settings via switches and adjustment controls on the device, no PC and setup software required, switchable AVCS / Normal Mode, easy setup, with connection for S.BUS / S.BUS2, neutral pulse 760 or 1520 µs, operating voltage: 4.2...8.4 V, current: 30 mA (without servo), weight: 3.7 g, dimensions: 20.5 x 20.5 x 11 mm, temperature range: -10...+45 °C.
