Product details

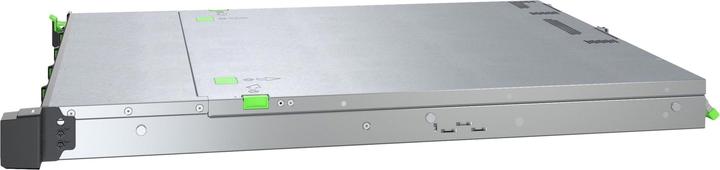

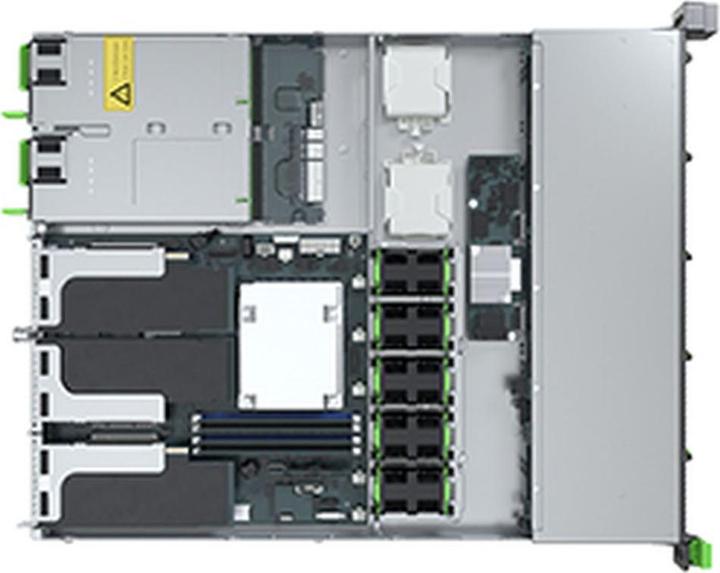

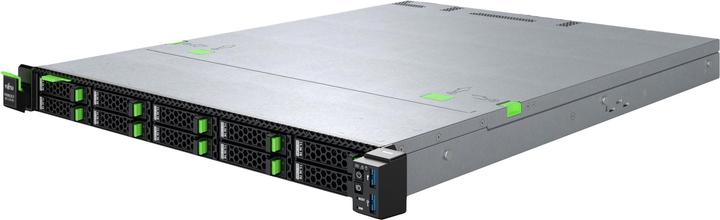

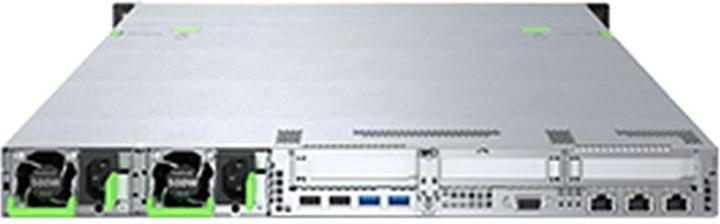

The Fujitsu Server Primergy RX1330 M5 is a 1U rack server with a single socket, designed for small businesses and remote offices that require reliability, performance, and ease of maintenance to support their critical business and customer data needs. The Primergy RX1330 M5 offers the flexibility to increase computing, storage, and memory capacity. The server can be equipped with an Intel Xeon processor and provides the capability to run multiple applications simultaneously. Featuring two PCIe Gen4 slots, one PCIe 3.0 expansion slot, and 2x Gbit LAN onboard, the Primergy RX1330 M5 delivers improved data transfer rates and higher network speeds. By providing highly energy-efficient power supplies with the option of standard or redundant power supplies, as well as a modular approach for RAID and LAN controllers, this single-socket server helps reduce operating costs. It features a simple design for easy maintenance and comes with the integrated Remote Management Controller (iRMC S6) to simplify server management. Built-in security and proven reliability ensure maximum uptime. In addition to several advanced security measures for application data such as Intel SGX, the server also includes a lockable front panel to prevent unauthorised physical access directly in the data centre.

Key specifications

Number of rack units
1 U
Processor family
Xeon E
Processor type
Intel Xeon E-2334
Max. number of hard disks
4
Number of processors
1 x
RAM
16 GB
Operating system
No operating system
Item number
24030113

General information

Manufacturer
Fujitsu
Category
Servers
Manufacturer no.
VFY:R1335SC033IN
Release date
26.10.2022
Sales rank in Category Servers
5 of 626

Hardware form factor

Design
Rack Server
Number of rack units
1 U

Processor

Processor family
Xeon E
Processor type
Intel Xeon E-2334
Number of processors
1 x
Clock frequency
3.40 GHz
Number of threads
1
Number of processor cores
4 -Core
Max. turbo clock rate
4.60 GHz
Max. TDP
500 W
L3 Cache
8 MB

Motherboard properties

Chipset
Intel C256

Memory

Memory type
DDR4-RAM
Max. memory slots
4
Memory configuration
1 x 16GB
RAM
16 GB
Max. RAM
128 GB
RAM speed
3200 MHz
RAM error correction
ECC
RAM buffer
Error Correcting Code

Data storage controller

RAID configuration
1105
Mass storage controller type
SATA III
Data storage controller
Intel C256

Hard drive slots

Max. number of hard disks
4
Storage capacity
16 GB
Form factor
2.5"
Interface
SATA

Internal interfaces

Expansion slot
PCI Express x8 (4x)
PCI express version (max.)
4
Internal connection options
PCI Express x4 (1x)

External interfaces

USB ports
USB-AUSB-B
Exact USB ports
USB-A 2.0 (2x)USB-A 3.2 Gen 1 (4x)
Data ports
PS/2 (2x)
Connectivity
Ethernet

Network

Network connections
RJ45 Gigabit Ethernet (3x)
Ethernet controller
Intel I210
Ethernet controller brand
Intel

Graphics card properties

Hardware interface
EthernetRJ45USBUSB 2.0USB 3.2 Gen 2USB-CVGA

Video connections

Video connections
D-Sub (1x)

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
No operating system
Processor design
64-bit

Mains supply properties

Number of power supply units
1 x
Power
500 W
input voltage
240 V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
612 mm
Width
482.60 mm
Height
43 mm
Weight
13 kg

Package dimensions

Length
90 cm
Width
59 cm
Height
25 cm
Weight
16 kg
