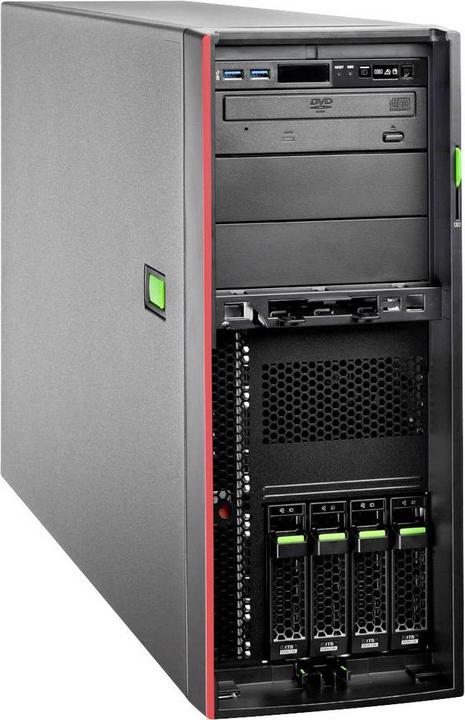

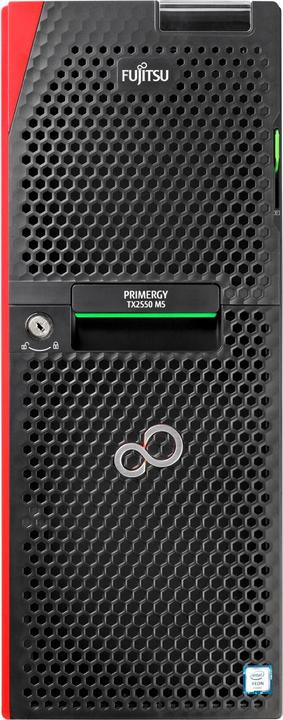

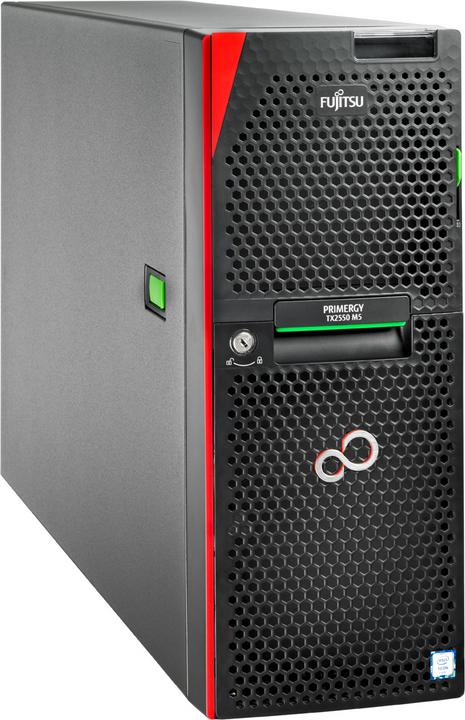

Fujitsu Primergy TX2550 M5
Intel Xeon Silver 4215, 16 GB, Tower ServerProduct details
The Fujitsu Server Primergy TX2550 M5 is a new dual-socket tower server featuring the latest technology, designed for excellent workload flexibility in enterprises, as well as expandability and high cost efficiency. With its combination of Intel Xeon Processor Scalable Family CPUs, 1.5 TB 2,933 MT/s DDR4, and Intel Optane DC Persistent Memory, it is ideal for most CPU- and memory-intensive workloads. Up to 32 storage drives, NVMe capability, cutting-edge RAID, and high-throughput network options support collaboration and IT infrastructure workloads, as well as workloads with high data transfers. Up to 8 expansion slots allow for future growth, while highly efficient, redundant power supplies enhance reliability and provide savings upfront. The iRMC S5 enables optimal management throughout the entire lifecycle.
Number of rack units | 4 U |
Processor family | Xeon |
Processor type | Intel Xeon Silver 4215 |
Max. number of hard disks | 8 |
Number of processors | 1 x |
RAM | 16 GB |
Operating system | No operating system |
Item number | 13310618 |
Manufacturer | Fujitsu |
Category | Servers |
Manufacturer no. | VFY:T2555SC040IN |
Release date | 9.6.2020 |
External links |
Design | Tower Server |
Number of rack units | 4 U |
Processor family | Xeon |
Processor type | Intel Xeon Silver 4215 |
Number of processors | 1 x |
Number of processor sockets | 1 x |
Clock frequency | 2.50 GHz |
Number of threads | 16 |
Number of processor cores | 8 -Core |
Max. turbo clock rate | 3 GHz |
Max. TDP | 85 W |
L3 Cache | 11 MB |
Socket | Socket P |
Chipset | Intel C624 |
Memory type | DDR4-RAM |
Max. memory slots | 12 |
Memory configuration | 1 x 16GB |
RAM | 16 GB |
Max. RAM | 1500 GB |
RAM speed | 2933 MHz |
RAM buffer | Error Correcting Code |
RAID configuration | 0, 1, 10 |
Possible raid configuration | 0, 1, 10 |
Max. number of hard disks | 8 |
Form factor | 2.5" |
Interface | SATA |
Hard disk additional functions | Hot plugging |
PCI express version (max.) | 3 |
Internal connection options | PCI Express x16 (1x), PCI Express x8 (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Connectivity | Ethernet |
Network connections | RJ45 (2x) |
Max. port speed | 1000 Mbit/s |
Video memory type | GDDR4 |
Hardware interface | Ethernet, RJ45, USB 2.0, USB 3.0 |
Video connections | D-Sub (1x) |
Optical drive type | No drive |
Operating system | No operating system |
Processor design | 64-bit |
Power | 450 W |
input voltage | 230 V |
CO₂-Emission | |
Climate contribution |
Length | 448 mm |
Width | 177 mm |
Height | 736 mm |
Weight | 35.50 kg |
