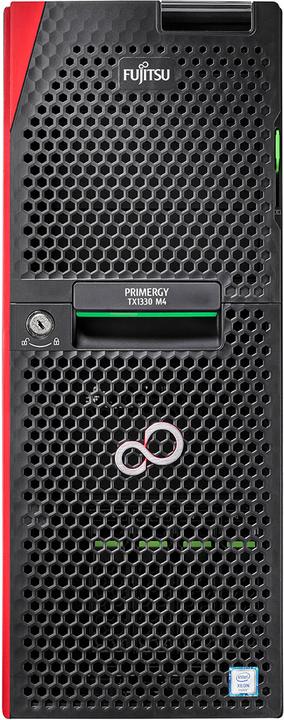

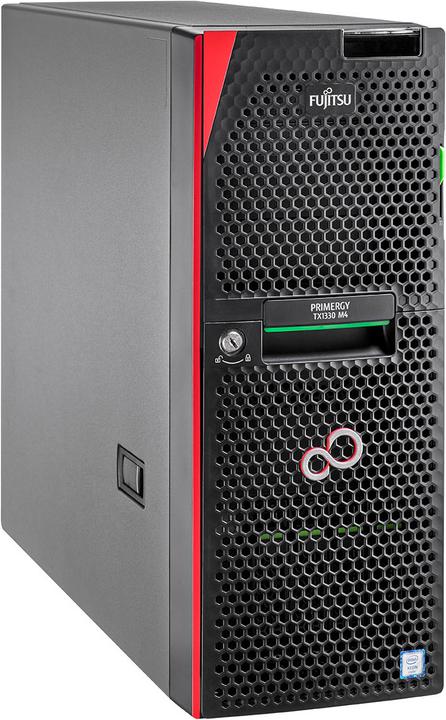

Fujitsu PRIMERGY TX1330 M4 E-2276G 8xSFF (P)
Intel Xeon E-2276G, Tower ServerProduct details
The Fujitsu Server PRIMERGY TX1330 M4 is a highly expandable mono-socket server for small and medium enterprises that need application-oriented performance coupled with high storage expandability and growth potential via a comprehensive range of options. It features the latest Intel® Xeon® E-2200/E-2100 product family processors, with up to 128GB RAM operating at 2,666 MT/s for managing application-oriented performance for today and tomorrow. The server is designed for high-performance scalability and workload versatility with features such as up to four NVMe devices plus sixteen 2.5-inch storage devices or up to twenty-four 2.5-inch devices, data backup options, and 4x PCIe slots coupled with advanced RAID (4/8 Gb cache) and networking options (10/25Gb Ethernet, FC controllers). The server also features dual M.2 device support for efficient operating system boot while dual microSD offers mirrored boot for VMware ESXi. The server also features higher performance USB 3.1 Gen 2 ports for newer generation peripheral devices. Reliability is enhanced with the cost-oriented Fujitsu Battery Backup unit and high-efficiency (94%) redundant power supplies. Comprehensive server management via the iRMC S5 plus silent operation ease both administration and deployment, making the platform ideal for SME environments.
Rack height units | 4 U |
Processor type | Intel Xeon E-2276G |
Number of processors | 1x |
Operating system | No operating system |
Item number | 15848313 |
Manufacturer | Fujitsu |
Category | Servers |
Manufacturer no. | VFY:T1334SC173IN |
Release date | 17.5.2021 |
Design | Tower Server |
Rack height units | 4 U |
Processor type | Intel Xeon E-2276G |
Number of processors | 1x |
Clock frequency | 2.67 GHz |
Max. turbo clock rate | 4.90 GHz |
Max. TDP | 450 W |
L3 Cache | 12 MB |
Socket | LGA 1151 |
Chipset | Intel C246 |
Memory type | DDR4-RAM |
Max. RAM | 128 GB |
RAM speed | 2666 MHz |
RAM error correction | ECC |
RAM buffer | Error Correcting Code |
RAID configuration | 0+1, 10, 5, 6 |
Possible raid configuration | 0, 1, 10, 5, 6 |
Expansion slot | PCI Express x1 (1x) |
Connectivity | USB |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller | Intel I210 |
Ethernet controller brand | Intel |
Graphics card model | UHD Graphics P630 |
Graphics chip (GPU) | Intel UHD Graphics |
Hardware interface | Ethernet, RJ45, USB 2.0, USB 3.1, VGA |
Operating system | No operating system |
Number of power supply units | 1x |
Power | 450 W |
Length | 560 mm |
Width | 177 mm |
Height | 455 mm |
Length | 89 cm |
Width | 39.50 cm |
Height | 40 cm |
Weight | 20 kg |
