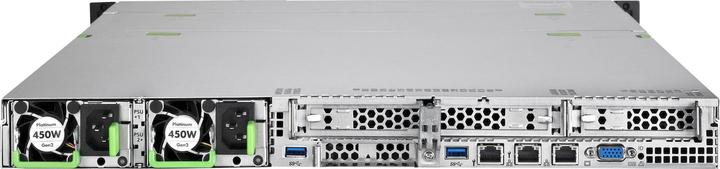

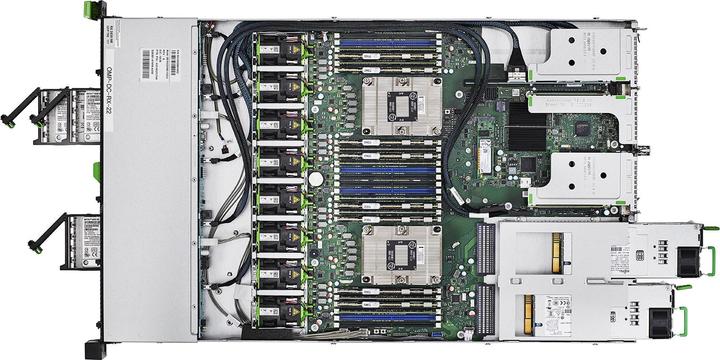

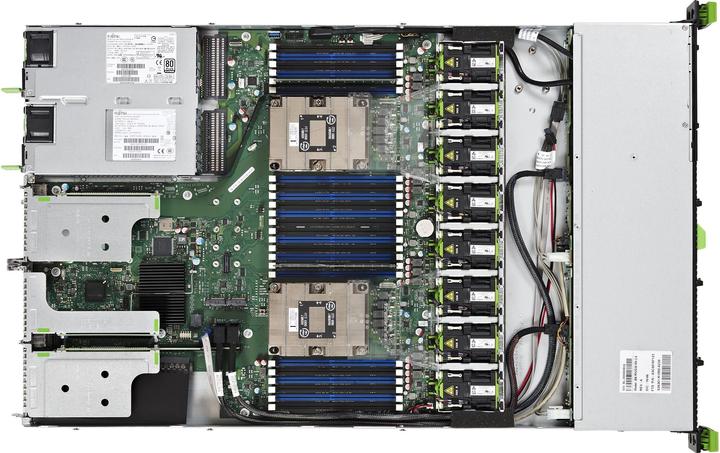

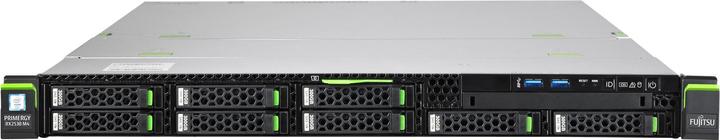

Fujitsu Primergy RX2530 M5

Intel Xeon Gold 6234, 32 GB, Rack Server
Currently out of stock
Free shipping starting at 50.–

Product details

The Fujitsu Server Primergy RX2530 M5 is a dual-socket rack server that offers the high performance of the new Intel Xeon Processor Scalable Family CPUs, expandability up to 3 TB of DDR4 memory with the option to utilize Intel Optane DC Persistent Memory, as well as support for up to 10 x 2.5-inch storage devices—all in a space-saving 1U chassis. The system can also be equipped with the new 2nd generation of Intel Xeon Scalable Family processors (CLX-R), which provide industry-leading clock speeds. Consequently, the Primergy RX2530 M5 is the optimal system for extensive virtualization and scale-out scenarios, databases, and high-performance computing.

Key specifications

Rack height units
1 U
Processor type
Intel Xeon Gold 6234
Number of processors
1x
RAM
32 GB
Max. number of hard disks
8
Operating system
No operating system

General information

Item number
13310610
Manufacturer
Fujitsu
Category
Servers
Manufacturer no.
VFY:R2535SC051IN
Release date
9.6.2020

Hardware form factor

Design
Rack Server
Rack height units
1 U

Processor

Processor type
Intel Xeon Gold 6234
Number of processors
1x
Number of processor sockets
1x
Clock frequency
3.30 GHz
Number of threads
16
Number of processor cores
8 -Core
Max. turbo clock rate
4 GHz
Max. TDP
130 W
L3 Cache
24.75 MB

Motherboard properties

Socket
Socket P
Chipset
Intel C624

Memory

Memory type
DDR4-RAM
Max. memory slots
24
Memory configuration
1 x 32GB
RAM
32 GB
Max. RAM
7680 GB
RAM speed
2933 MHz
RAM error correction
ECC
RAM buffer
Error Correcting Code

Data storage controller

RAID configuration
01
Possible raid configuration
01
Mass storage controller type
SATA III

Hard drive slots

Max. number of hard disks
8
Storage capacity
32 GB
Form factor
2.5"
Hard disk additional functions
Hot swapping

Internal interfaces

Expansion slot
PCI Express x16 (3x)PCI Express x8 (3x)
PCI express version (max.)
3
Internal connection options
PCI Express x8 (1x)

External interfaces

USB ports
USB-A
Exact USB ports
USB-A 3.0 (4x)
Connectivity
Ethernet

Network

Network connections
RJ45 (2x)
Ethernet controller
Gigabit Ethernet
Max. port speed
1000 Mbit/s

Graphics card properties

Video memory type
GDDR4
Hardware interface
RJ45USB 3.0

Video connections

Video connections
VGA (2x)

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
No operating system
Processor design
64-bit

Mains supply properties

Number of power supply units
1x
Power
800 W
Input voltage
230 V
Max. number of power supply units
1

Sustainability

Manufacturer commitment
SBTi

Product dimensions

Length
483 mm
Width
770.70 mm
Height
43 mm
Weight
16 kg
