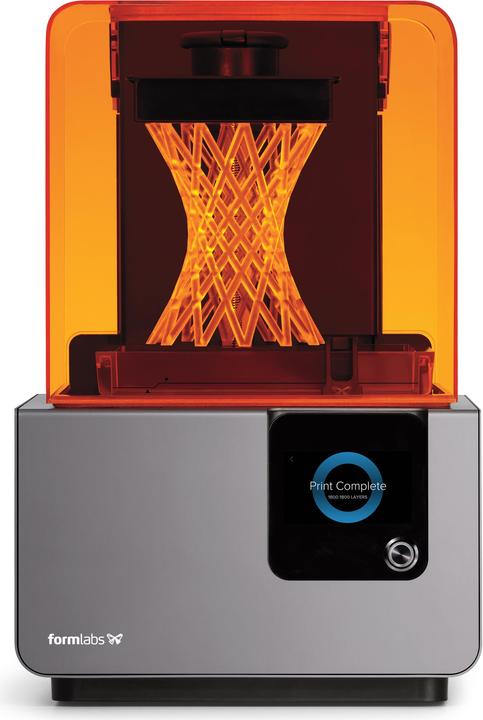

With a 40% higher print volume and a 250 mW powerful laser beam controlled by specially developed galvanometers, the Form 2 produces large print models with spectacular detail fidelity.
A new release mechanism and a heated resin tank ensure reliable printing even for large, solid parts and small, complex details. Sliding mechanism: Reduced release force and less wear on the resin tank improve the printing of large, solid parts. Resin wiper: Enhance print consistency by removing fine dust from the print area and thoroughly mixing the resin. Heated resin tank: The constant internal temperature of 35 °C ensures optimal printing conditions.
Automatic filling: Our new integrated resin system allows for larger print models, clean processing, and a longer lifespan of the resin tank. Resin level detection: The resin tank is automatically filled during printing. Cartridge ID chip: Monitor the fill level and wear of the resin tank. Open mode: If you want to experiment with resins from other suppliers, you can use the open mode for that.
Always completely in control: Thanks to our new touchscreen interface and wireless connection, you can easily send prints over Wi-Fi, reprint previous jobs, and manage your print queue.
Always connected: Stay updated from anywhere. Your printer dashboard allows access to your Form 2 from any location.
Max. print size (LxWxH) | 145 x 145 x 175 mm |
3D printing resolution | 100 microns (0.1mm), 30 microns (0.03mm), 50 microns (0.05mm) |
3D printing method | Stereolithography (SLA) |
Print material | Resin |
Connectivity | LAN, USB, WLAN |
Documents | |
Item number | 6031723 |
Manufacturer | Formlabs |
Category | 3D printers |
Manufacturer no. | formlabs.form2.set |
Release date | 9.12.2016 |
Colour | Grey, Orange |
Exact colour description | Grey, Orange |
3D printer type | Enclosure |
3D printing resolution | 100 microns (0.1mm), 30 microns (0.03mm), 50 microns (0.05mm) |
3D printing method | Stereolithography (SLA) |
Max. print size (LxWxH) | 145 x 145 x 175 mm |
Printer features | Display |
Print material | Resin |
Mechanical features | Heated chamber |
Connectivity | LAN, USB, WLAN |
Supported file formats | OBJ, STL |
Operating system compatibility | Mac OS X 10.7 (Lion), Windows 7 |
input voltage | 100 - 240 V |
Power consumption | 65 W |
CO₂-Emission | |
Climate contribution |

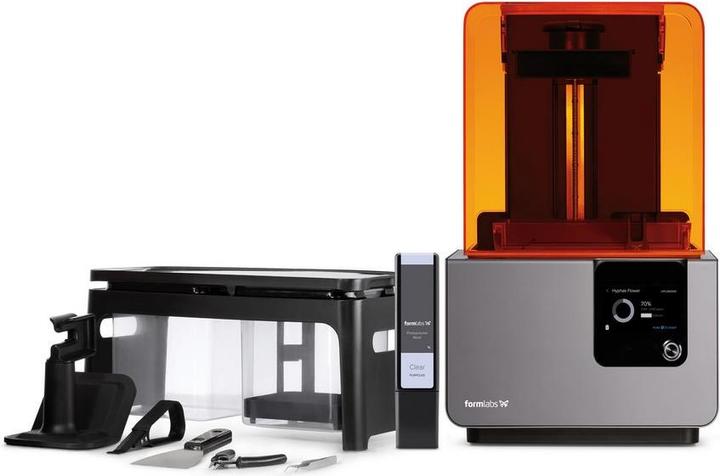

Scope of delivery | 1 L Standard Resin, 1 Year Pro Service Plan, 3D Printer |
Length | 35 cm |
Height | 52 cm |
Depth | 33 cm |
Weight | 13 kg |
Length | 78.30 cm |
Width | 46 cm |
Height | 69.50 cm |
Weight | 25.08 kg |
