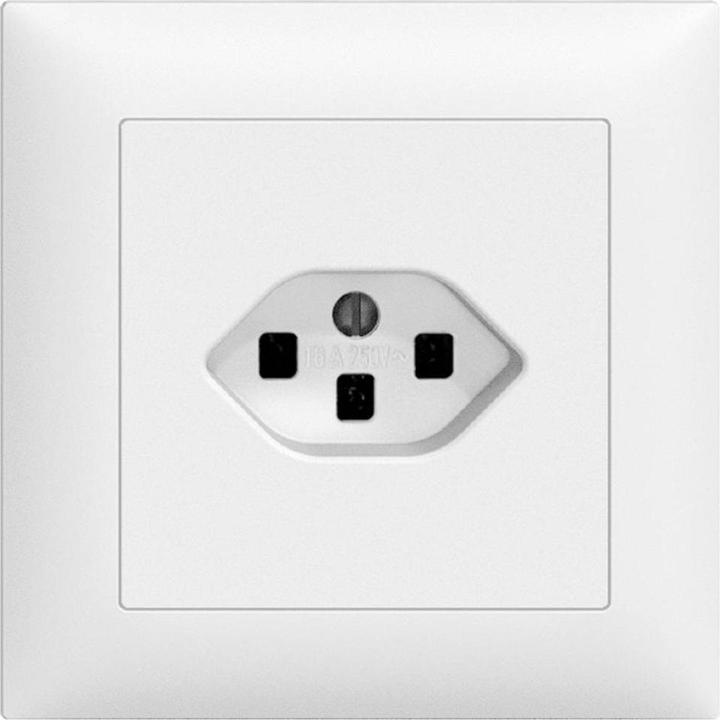

Feller EdizioDue Type 23
More than 10 pieces in stock at supplier
Colour2
Nominal voltage2
Socket type2
Product details
Socket 1x Type 23 / Size 1x1 / Design: Flush-mounted / Current: 16A / Voltage: 250V / Terminal connection: L+N+PE / Additional function: with terminal blocks / Installation height: 8mm / Installation depth: 41mm / Color: white / IP protection class: IP20 / EdizioDue
EdizioDue is much more than an attractive range of light switches and sockets. For the majority of system solutions, it also represents an overarching design philosophy for all functions. EdizioDue utilizes the proven device technology from Feller. The basis is a color-neutral functional insert, which allows for modular designs of flush-mounted, surface-mounted, and built-in installations. Subsequent color changes can be quickly implemented, as EdizioDue covers can be easily replaced with the device connected.
Number of cans | 1 x |
Socket type | Type 23 |
Area of use | Inside |
Exact colour description | White (matt) |
Mounting type | Flush-mounted |
Item number | 52945291 |
Manufacturer | Feller |
Category | Sockets |
Manufacturer no. | 87023.FMI.61 |
Release date | 13.11.2024 |
Colour | White |
Exact colour description | White (matt) |
Material group | Plastic |
Material | Thermoplastic resin |
Socket type | Built-in socket |
Series | Edizio Due |
Socket type | Type 23 |
Number of cans | 1 x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 230 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
connector type | Plug terminal |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Control type | None |
CO₂-Emission | |
Climate contribution |
Stack depth | 4.10 cm |
Length | 8.80 cm |
Width | 8.80 cm |
Height | 4.90 cm |
Weight | 79 g |
Length | 17.60 cm |
Width | 13.80 cm |
Height | 6.10 cm |
Weight | 83 g |
