FeinTech Modulator

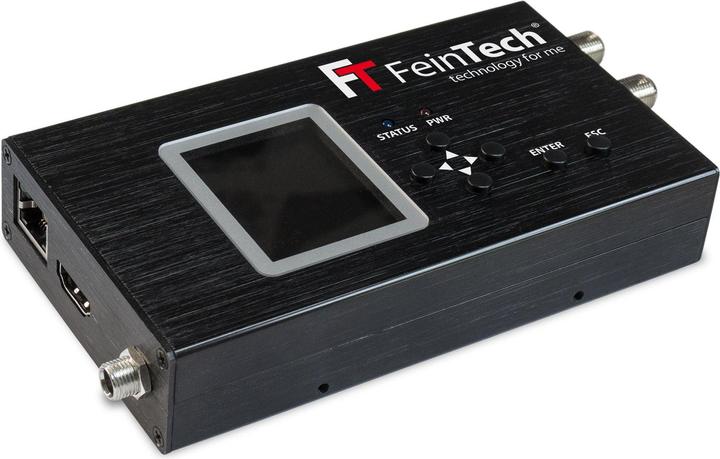

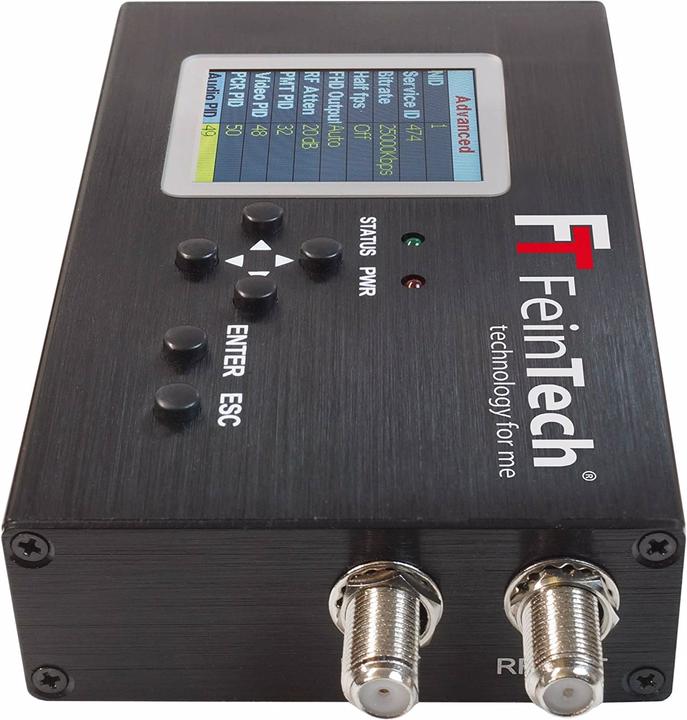

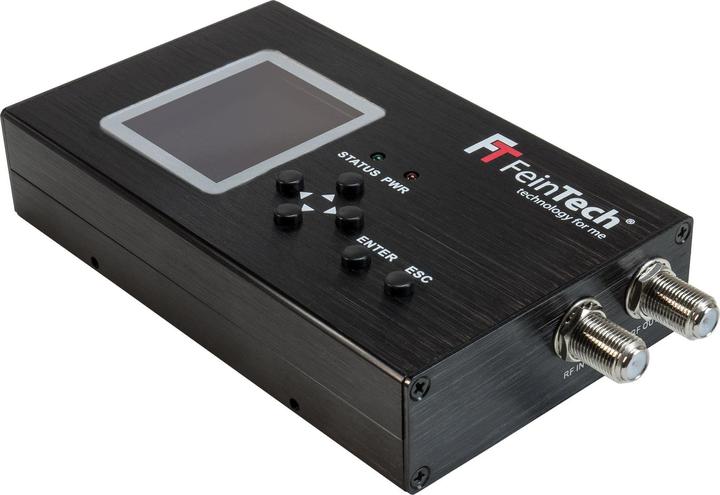

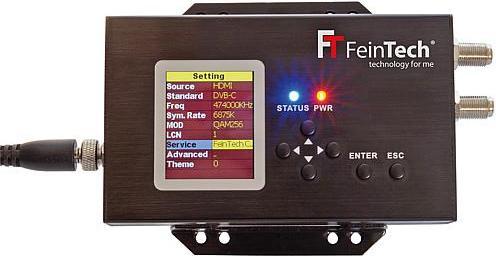

You can feed a signal into the VHQ00101 via the HDMI connection, for example from a camera, streaming box, decoder, PC, or satellite receiver. The VHQ00101 generates a DVB-C or DVB-T television channel from this signal, which you can receive like a TV program on most modern televisions. This is delivered in Full HD picture quality and with digital sound. You can use the same cable for distribution that is also used for satellite signals, DVB-T, or cable television. The output channel and program name are freely selectable. This allows you to provide signals from a surveillance camera, media player, or computer over long distances and for an unlimited number of televisions. The HDMI signal is HF-modulated by the VHQ00101 and can be finely adjusted. You can choose whether the output is in DVB-C and DVB-T at 1080i or 1080p. The audio format can be selected as MPEG1 Layer II, AAC, or AC3 Stereo. Professional settings for NIDs, SID, PIDs, etc., can also be configured. There is a signal input available for injecting into the cable network. Through this, you can operate additional VHQ00101 units if needed, allowing you to inject multiple channels. After a channel scan on the television or receiver, you will receive the additional program. Operating notes: If you are simultaneously injecting signals from a cable network operator or DVB-T, please ensure that the settings do not conflict. In particular, choose a free output channel. If you are testing the modulator directly on a television, please reduce the output level by 30 dB. Otherwise, the receiver may overload.
