Product details
With an FPV headset, you experience your flight up close. You see the camera image from the perspective of the aircraft on the integrated display and feel as if you are sitting in the cockpit. This provides a more intense visual impression and allows you to enjoy unforgettable flying experiences.

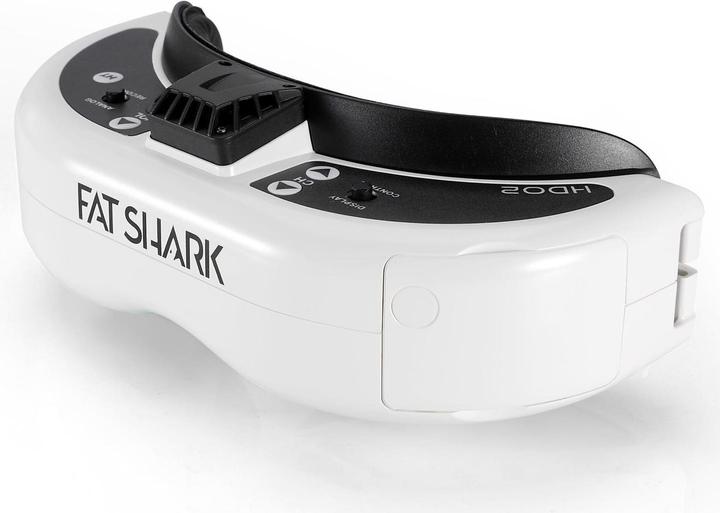

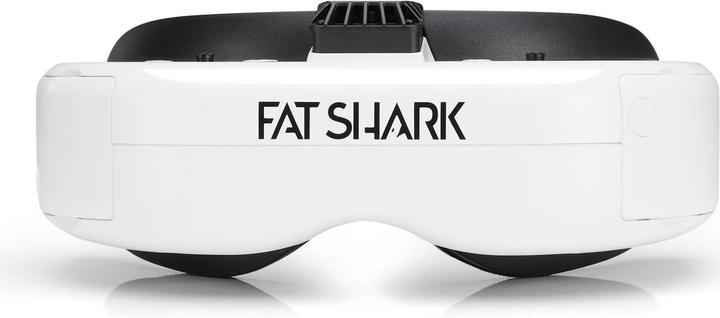

Fatshark HDO2 Goggles: The Dominator HDO2 headset is introduced as the successor to the popular Dominator HDO. The HDO2 uses large 1280 x 960 OLED panels to achieve an improved image with a 46-degree field of view. Display adjustment is now possible through a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable front panel curvature, selectable aspect ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot seeking the best flying experience.
FOV (field of view): 46 degrees diagonal
IPD (interpupillary distance): 54 to 74 mm (adjustable)
Focus: +2 to -6 diopters (adjustable)

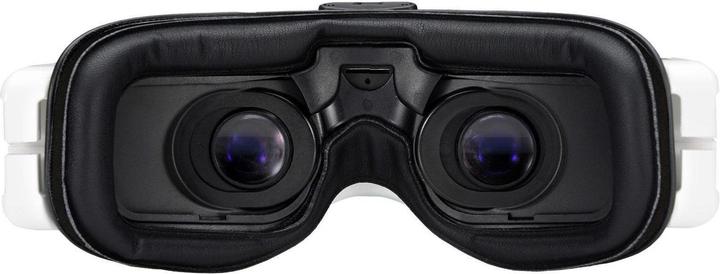

Display: Two Sony 0.5 OLED displays
Resolution: 1280 x 960
NTCS/PAL auto selecting
AV Mode 4:3
AV Mode 16:9
HDMI Mode 16:9
Audio: Stereo

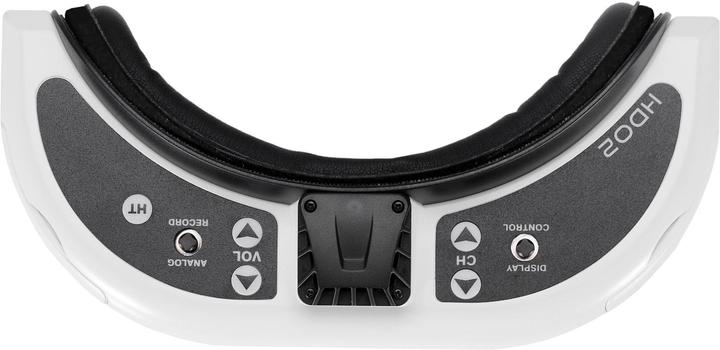

User controls: Channel Selection, Volume Control, Mode Selection, Display Control (Brightness and Contrast), DVR Control, Power Button / Fan Control
Electrical:
Power Supply: 7-13V input voltage (2S-3S Supply)
Power Consumption: TBD
Analog DVR: MicroSD support up to 32 GB
Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
File playback (native recording, no codec support)
Upgradeable via SD card
Battery: 7.4V, 1.8A 18650 battery compartment (optional)

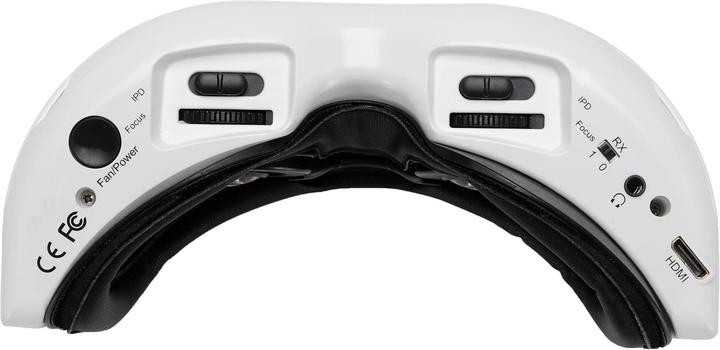

Interface: 3.5mm AV in/out port, Power input port, 3.5mm 3p earphone port, MicroSD, RF Module Bay, HT connector, 3 pin internal connection, Power Button
Mechanical: Ergonomically shaped headset with adjustable headband
Size: 169.2 x 80 x 45.5 mm
Weight: 206.8 g

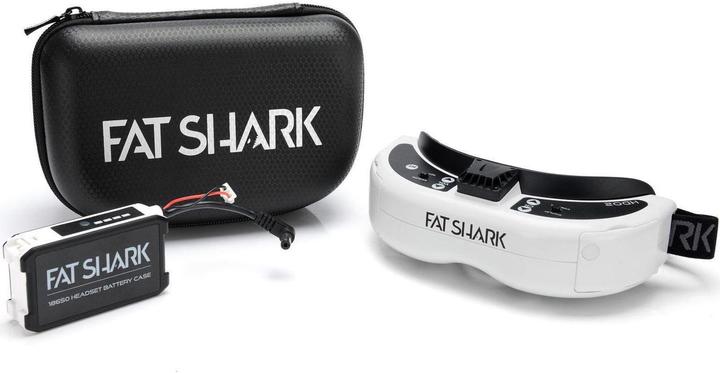

Included: 1x HDO2 Goggles, 1x 7.4V 18650 battery compartment, 1x carrying case, 1x lens cleaning cloth.
