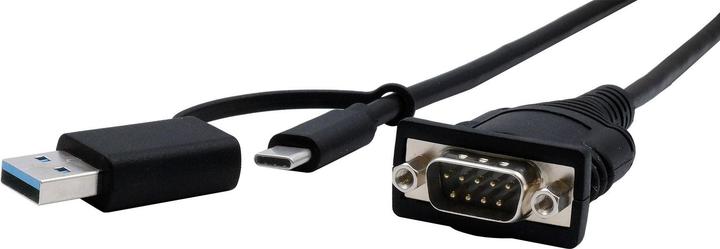

Exsys USB 2.0 with C+A connector to 1S serial RS-232 port, LED indicator, 0.5 metre cable
0.50 mDelivered between Tue, 19.5. and Wed, 20.5.
Only 2 pieces in stock at supplier
Only 2 pieces in stock at supplier
Free shipping starting at 50.–
Product details

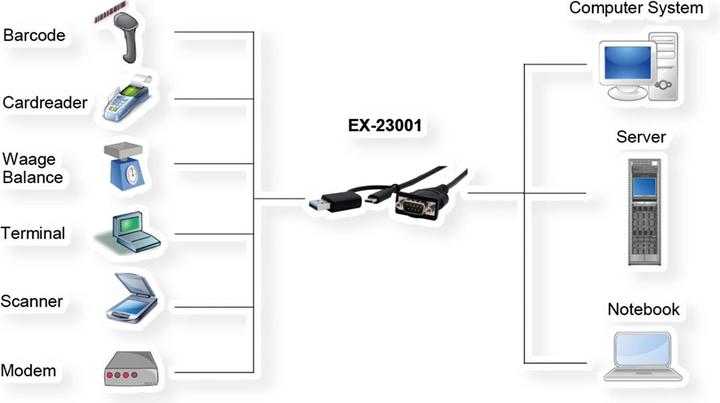

The USB 2.0 to RS-232 cable with C and A connectors provides a serial RS-232 high performance UART 16C550 output. It is designed to expand an additional serial output for PCs, workstations, or servers via the USB 1.1, 2.0, or 3.2 bus. With easy installation, there is no need to open the computer, and the EX-23001 can be installed while the system is running.
Interface: RS-232 V.24
16C550 FIFO buffer with 16 bytes
I/O addresses and interrupts are assigned by the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, and 2
Parity: none, even, odd, space, and mark
RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Powered by the USB bus (bus power)
Chipset: FTDI

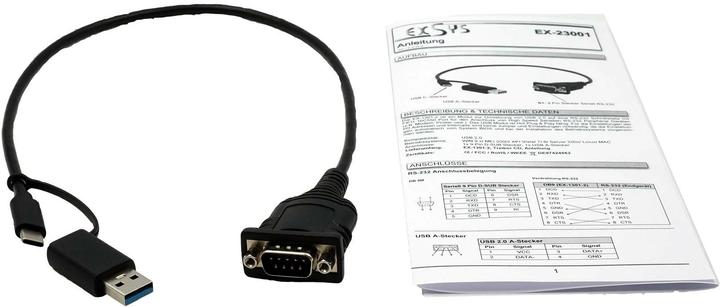

Included: EX-23001, manual.
Length | 0.50 m |
Documents |
Item number | 23214869 |
Manufacturer | Exsys |
Category | Interface cable |
Manufacturer No. | EX-23001 |
Release date | 26.9.2022 |
Sales rank in Category Interface cable | 113 of 1474 |
Cable colour | Black |
Cable connection | Connection (m/m) |
Quantity per package | 1x |
Plug type | Flat |
Cable design | Flat |
Connection B | RS-232 |
Connection A | USB-A, USB-C |
Country of origin | China |
CO₂ emissions | 6.76 kg |
Climate contribution | CHF 0.16 |
Length | 0.50 m |
Length | 22.60 cm |
Width | 16 cm |
Height | 3.80 cm |
Weight | 102 g |
Specifications may include unverified machine translations.
