Product details

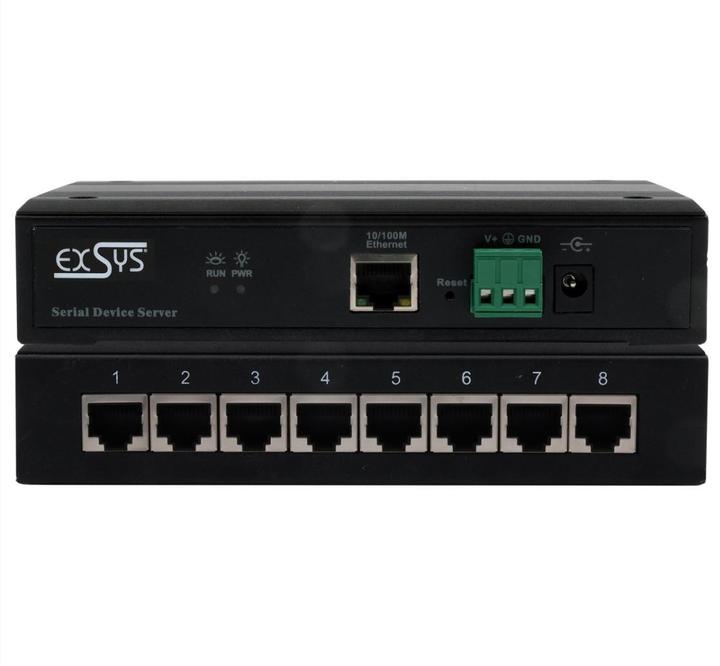

The EX-61008 is a multiprotocol RS-232/422/485 serial device server for integrating RS-232/422/485 serial devices, such as barcode scanners, weighing systems and payment terminals, into an IP-based Ethernet
network. The serial devices are connected to the network and are available for sharing on the subnet and the Internet. Extensive network protocols such as TCP Server, TCP Client, UDP, VCOM, Remote Pair Master Slave, Modbus Server, Modbus Client and SNMP are supported. In addition, serial devices with remote pair master-slave mode can communicate with each other via peer-to-peer mode without the need for an intermediate PC or conversion software. With the Virtual COM (VCOM) software available for download, a perfectly migrated virtual serial port can be created on Windows computers for each serial device.
Interface RS-232V.24/422/485 with 8 ports
Interface and operation mode can be defined individually for each port
Data bits: 5, 6, 7, 8 / Stop bits: 1, 2
Parity: None, Even, Odd
Signals:
RS-232: TXD, RXD, RTS, CTS, and GND
RS-422: TXD+, TCD-, RXD+ RXD-, GND
RS-485 2 wire: Data+, Data-, GND
Operating modes:
VCOM, MCP, TCP Server, TCP Client, UDP, Remote Pair mode, Modbus TCP Server, Modbus TCP Client, MQTT

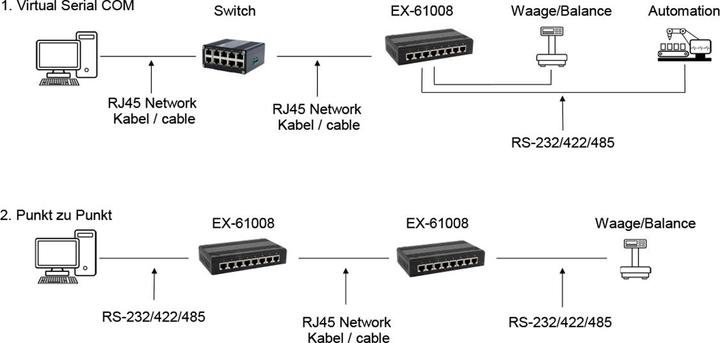

Point to point connection, no software needed
Virtual-COM software (download)

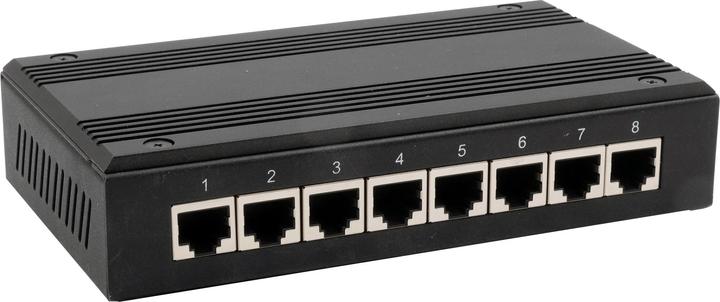

Robust metal housing

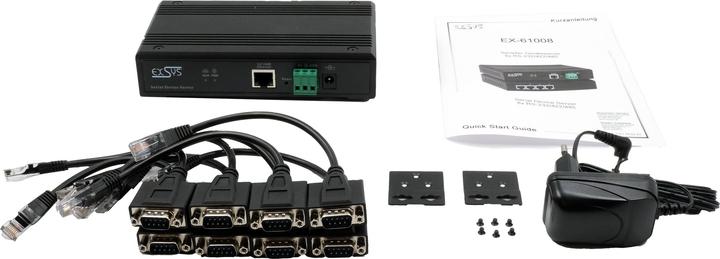

Delivery contents:
EX-61008, 8x cable adapter RJ45-DB9, power supply, wall mounting bracket, quick start guide.
Interface RS-232V.24/422/485 with 8 ports
Interface and operation mode can be defined individually for each port
Data bits: 5, 6, 7, 8 / Stop bits: 1, 2
Parity: None, Even, Odd
Signals:
RS-232: TXD, RXD, RTS, CTS, and GND
RS-422: TXD+, TCD-, RXD+ RXD-, GND
RS-485 2 wire: Data+, Data-, GND
Operating modes:
VCOM, MCP, TCP Server, TCP Client, UDP, Remote Pair mode, Modbus TCP Server, Modbus TCP Client, MQTT
Point to point connection, no software needed
Virtual-COM software (download)
Robust metal housing
Delivery contents:
EX-61008, 8x cable adapter RJ45-DB9, power supply, wall mounting bracket, quick start guide.
| Connection A | RJ45 |
| Connection B | RS-232, RS485 |
| Item number | 41203998 |
| Manufacturer | |
| Category | |
| Manufacturer no. | EX-61008 |
| Release date | 19.12.2023 |
| Maximum order quantity | 4 |
| Connection A | RJ45 |
| Connection B | RS-232, RS485 |
| Length | 32.70 cm |
| Width | 27.10 cm |
| Height | 13 cm |
| Weight | 1.10 kg |
Specifications may include unverified machine translations.
