Exsys GmbH USB 2.0 C male to serial RS-422/485 cable, Surge Protection (FTDI chip)

The USB-C to Serial EX-2346IS provides a serial RS-422/485 high-performance UART 16C550 interface with 15 kV ESD surge protection and 4 kV isolation. It is designed to connect serial devices to the USB-C port of a PC, server, or workstation. With easy installation at the USB port, there is no need to open the computer, and the converter can be installed while the system is running. The thumb screws can be replaced with the two included nuts if the connecting cable has screws. Additionally, a 9-pin adapter to a 5-pin terminal block is included. The cable offers the perfect solution for connecting barcode scanners, card readers, scales, and more.

The converter saves the COM port settings for the serial devices. This allows them to be automatically reassigned correctly after plugging in and unplugging – even when switching between different USB ports.

Interface: RS-422/485
15 kV ESD surge protection and 4 kV isolation
16C550 FIFO buffer with 16 bytes
I/O addresses and interrupts are assigned by the operating system
Data bits: 7 and 8
Stop bits: 1, 1.5, and 2
Parity: none, even, odd, space, and mark
Two signal configurations are possible:

• 4-wire RS-422/485 (TXD+/-, RXD+/-)
• 2-wire RS-485 (Data+/-, Data+/-)

Power supply via USB port - no external power supply required
LED indicators for RX and TX

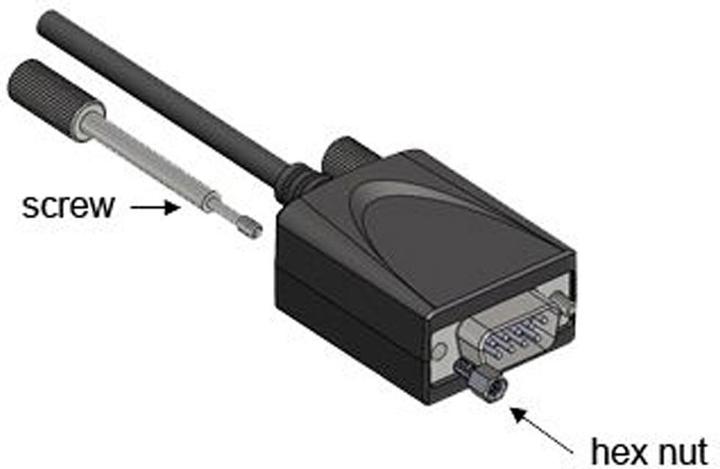

Replaceable screws with hex nuts
Chipset: FTDI

Package contents:
EX-2346IS, driver CD, 2x hex nuts, 9-pin socket to 5-pin TB adapter, manual.
