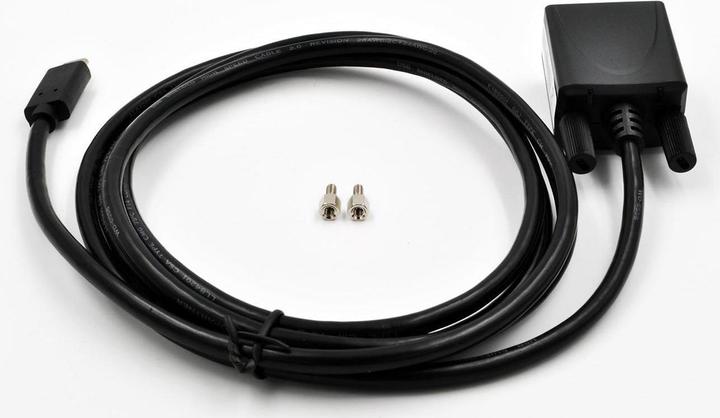

Exsys EX-2311-2F USB 2.0 to 1 x RS-232

The USB 2.0 to RS-232 cable with C connector EX-2311-2F provides a serial RS-232 high-performance UART 16C550 output. It is designed to expand a PC, workstation, or server with an additional serial output via the USB 1.1 or 2.0 bus. With easy installation, there is no need to open the computer, and the cable can be installed while the system is running. The EX-2311-2F features a 9-pin socket (DCE) and can be directly connected to the device. Two nuts are included, which can easily be replaced with the knurled screws if the connecting cable has screws.

Interface: RS232 V.24
FIFO Buffer: 16C550 with 16 bytes
I/O Addresses and Interrupts: assigned by the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
RS232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
LED indicators for RX and TX
Power supply from the USB bus (Bus Power)
Replaceable screws with hex nuts
Chipset: FTDI

Package Contents:
EX-2311-2F, driver CD, 2x hex nuts, manual.
