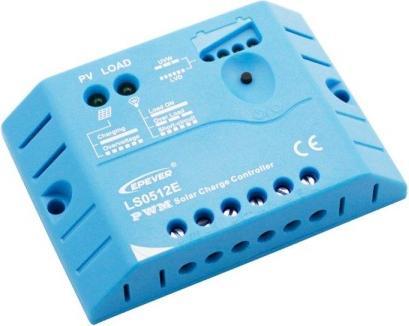

Epever LS0512E

PWM solar charge controller LS0512E 12 Volt 5 Amp. The LS-E economy solar charge controller is a new member of the LandStar family and is ideal for small solar installations, especially household systems.

Features:

• High efficiency PWM charging technology to increase battery life and improve solar yield
• Use of MOSFET as electronic switch, no mechanical switches or relays
• Intuitive LED indicators for battery voltage status
• 3 different battery types adjustable: Gel, AGM, or open lead acid
• Manual control of consumer output possible
• Temperature compensation for optimal charging and discharging of the battery
• User-friendly, comfortable, and conveniently adjustable

Electronic protection functions:

• Overload protection
• Short-circuit protection
• Battery deep discharge protection
• Battery reverse polarity protection

Technical data:

• Battery voltage: 12V
• Maximum charging current: 5A
• Maximum current at load output: 5A
• Maximum solar open-circuit voltage: 30V
• Weight: 0.07kg
• Dimensions: 92.8 x 65 x 20.2 mm
• Cable terminals: 2.5 mm²
• Operating temperature range: -35°C to +55°C
• Intrinsic current consumption: ≤ 6mA
• Protection class: IP30.
