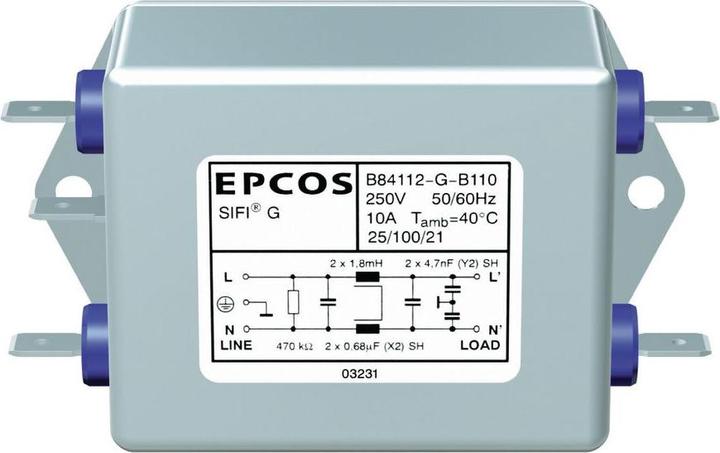

Epcos Mains filter, 10A, 250VAC, quick connection

The Epcos network filter is a highly advanced EMC filter device designed for use in various electrical applications. With a rated voltage of 250 VAC and a rated current of 10 A, this filter provides reliable performance and protects against electromagnetic interference. The inductance of 1.8 mH ensures effective filtering, while the capacitances of 680 nF (Cx) and 4.7 nF (Cy) guarantee optimal functionality. The network filter is suitable for operating temperatures ranging from -25 °C to 100 °C, making it versatile for different applications. The quick-connect technology allows for easy and fast installation, facilitating handling and integration into existing systems. With a flammability rating of UL 94 V-0, the filter meets high safety standards, making it ideal for industrial use.

• EMC filter for effective electromagnetic interference suppression
• Operating temperature range from -25 °C to 100 °C
• Quick-connect technology for easy installation
• Inductance of 1.8 mH for optimal filtering performance
• Flammability rating UL 94 V-0 for high safety standards.
