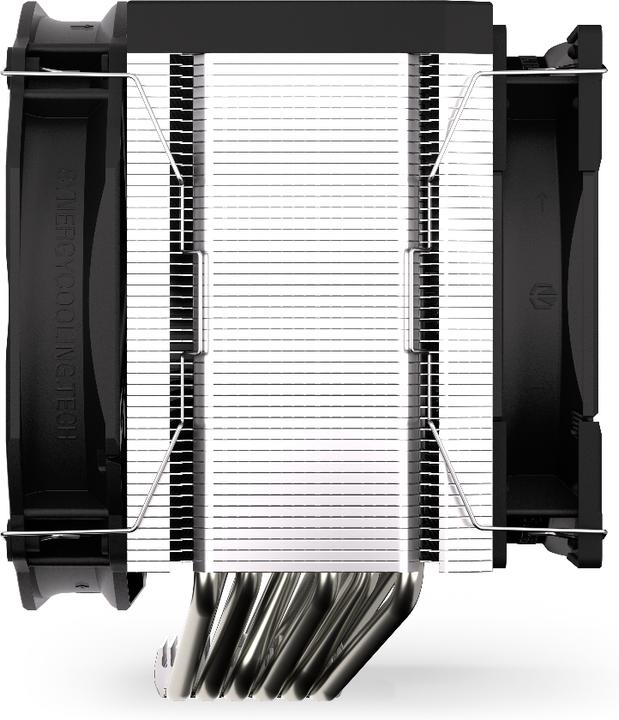

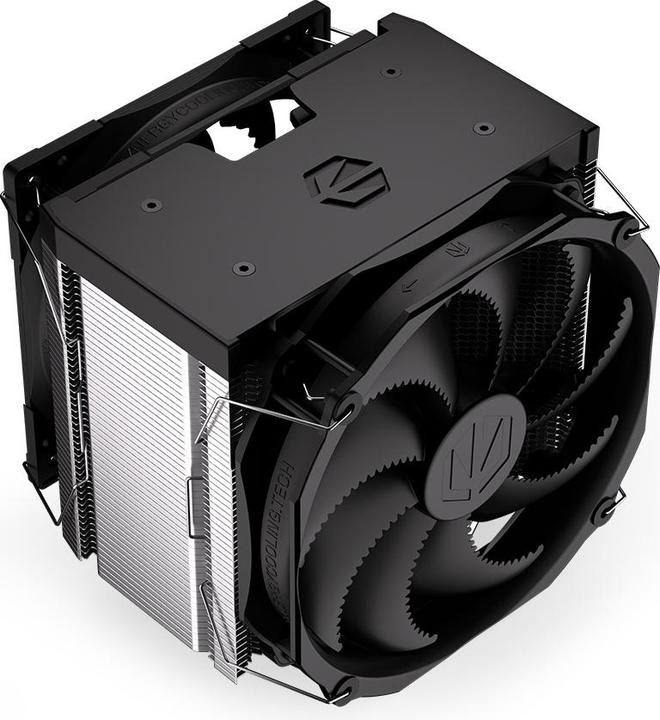

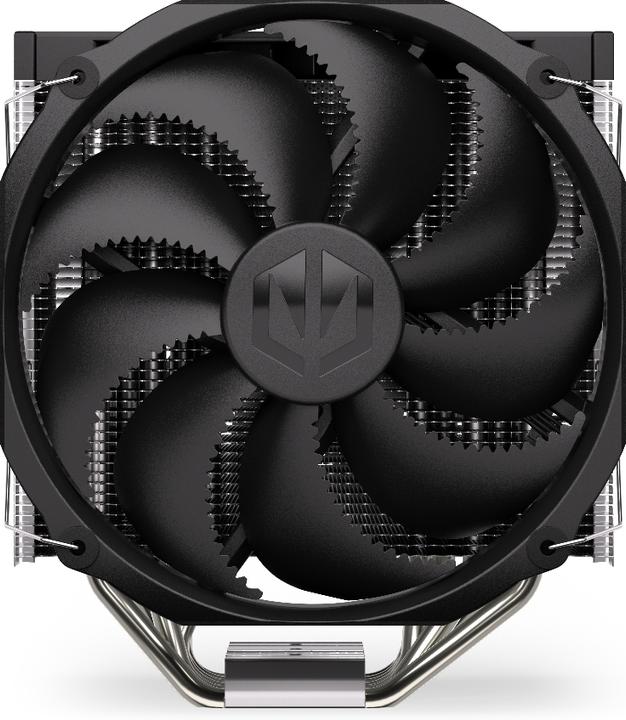

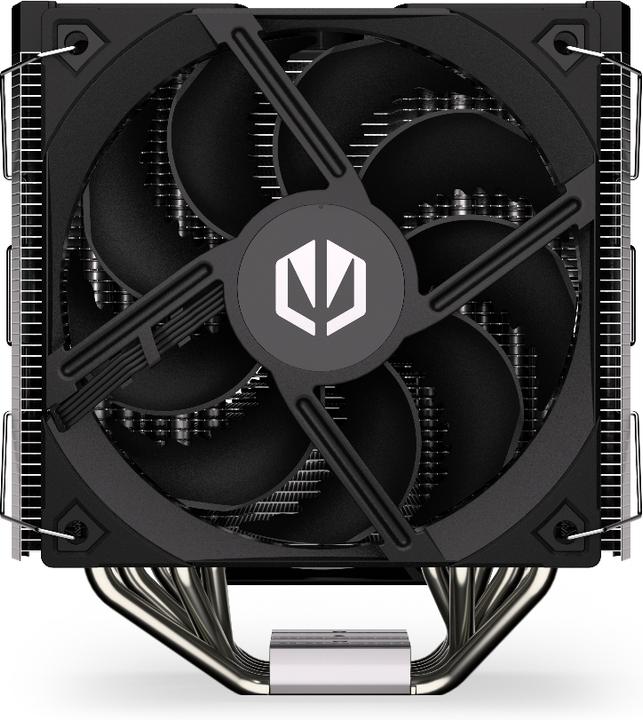

The Fortis 5 Dual Fan is one of those coolers that truly stands out. It keeps the CPU cool, remains quiet, and fits easily into most cases, even smaller ones where finding parts can be more challenging due to height restrictions. This is thanks to two fans: the Fluctus 140 mm and the Fluctus L120, which are mounted on a densely ribbed heatsink. This powerful combination is excellent for push/pull systems that further lower CPU temperatures. The Fortis 5 Dual Fan is compatible with the most common sockets and also offers extensive RAM compatibility. You can easily pair it with both newer and older CPUs.
Main Features
Performance
Recommended Placement: Processor
Type: Air Cooling
Fan Diameter: 120/140 mm
Supported Processor Sockets: LGA 1200, LGA 1366, LGA 1700, LGA 2011, LGA 2011-v3, LGA 2066, LGA 775, Socket AM2+, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2+
Fan Speed 2 (min.): 250 RPM
Fan Speed 2 (max.): 1400 RPM
Fan Speed (min): 250 RPM
Fan Speed (max): 1400 RPM
Mean Time Between Failures (MTBF): 100,000 h
Design
Product Color: Black
Number of Fans: 2 Fans
Number of Heat Pipes: 6
Performance
Thermal Design Power (TDP): 220 W
Weight and Dimensions
Heatsink Width: 15.9 cm
Heatsink Depth: 13.1 cm
Heatsink Height: 14.4 cm
Fan Dimensions (W x D x H): 140 x 25 x 140 mm
Dimensions Fan 2 (W x D x H): 120 x 25 x 120 mm
Included in Delivery
Mounting Kit: Yes
Installation Instructions: Yes.
Socket | AM2+, AM3, AM4, AM5, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1366, LGA 1700, LGA 2011, LGA 2011-v3, LGA 2066, LGA 775 |
Diameter | 120 mm |
Number of fans | 2x |
Max. TDP | 220 W |
power connector | 4-pin PWM |
Height (with fan) | 159 mm |
Item number | 23598570 |
Manufacturer | Endorfy |
Category | CPU coolers |
Manufacturer no. | EY3A009 |
Release date | 21.10.2022 |
External links |
Colour | Black |
Exact colour description | Black |
CPU cooler design | Single Tower |
Fan type | Top-Down Cooler |
Socket | AM2+, AM3, AM4, AM5, FM1, FM2, FM2+, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1366, LGA 1700, LGA 2011, LGA 2011-v3, LGA 2066, LGA 775 |
Cooler mounting | Retention module |
Supported fan sizes | 120mm, 140mm |
Number of heatpipes | 6 |
Diameter heat pipe | 6 mm |
Number of cooling fins | 159 |
Materials radiator core | Copper |
Material cooling fins | Aluminium |
Diameter | 120 mm |
Number of fans | 2x |
Maximum mountable fan | 2 |
Max. Speed | 1400 RPM |
Max. TDP | 220 W |
LED colour | without LED |
Fan bearing type | Fluid Dynamic bearing |
power connector | 4-pin PWM |
Power consumption | 2.40 W |
Voltage | 12 V |
Scope of delivery | Incl. thermal paste |
Country of origin | China |
CO₂ emissions | 133.22 kg |
Climate contribution | CHF 2.49 |
Width (with fan) | 144 mm |
Length (with fan) | 131 mm |
Height (with fan) | 159 mm |
Weight | 900 g |
Length | 25.90 cm |
Width | 18 cm |
Height | 14.30 cm |
Weight | 1.26 kg |
How often does a product of this brand in the «CPU coolers» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «CPU coolers» category returned?
Source: Digitec Galaxus
Although the Fortis 5 is just about the weakest cooler in this comparison according to measurements, it can even cope with the 120-watt Ryzen 7 9800X3D CPU without any problems. The 140-millimetre fan that Endorfy straps to the cooling tower remains quiet across its entire speed range; only the Dark Rock Pro 5 in quiet mode is even more restrained...
