Eltako Three-phase meter

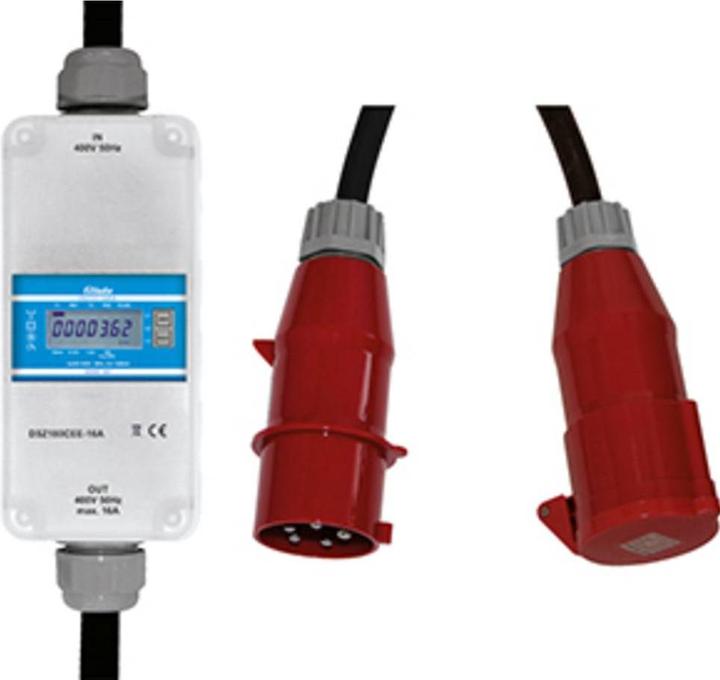

Eltako Mobile Three-Phase Meter DSZ180CEE-16

Manufacturer: Eltako
Description: Mobile Three-Phase Meter MID calibrated 16A
Type: DSZ180CEE-16
Meter Type: electronic
Rated Current (In): 10 A
Maximum Current (Imax): 80 A
Rated Voltage (Un) N-L: 230 V
Rated Voltage (Un) L-L: 400 V
Frequency: 50 Hz
Accuracy Class: B
Polarity: Four-Wire
Design: Direct Measurement
Energy Type: Active Power
Suitable for: Consumption
Reverse Lock: yes
Calibrated: yes
Approval: Measuring Instruments Directive
Display Type: digital
Width: 86 mm
Depth: 82 mm
Height: 180 mm
Interface Design: other
Number of Digits: 7
Protection Class (IP): IP54

Additional Details: Mobile three-phase meter with CEE plug 16A and CEE socket 16A. Suitable for indoor and outdoor use. Maximum current 16A, standby loss only 0.5 watts per path. Housing dimensions 180x86x82 mm, connection cable 1.5 m (including plug and socket). Accuracy class B (1%). This mobile three-phase meter measures active energy based on the currents flowing between the inputs and outputs. The self-consumption of a maximum of only 0.5 watts of active power per path is not measured and not displayed. The starting current is 40 mA. The display can only be read with power supply. However, the consumption is stored non-volatile and is immediately displayed again after a power failure. The digital display has 7 digits. Up to 99999.99 kWh, two decimal places are displayed; from 100000.0 kWh, only one decimal place is shown. The power consumption is indicated by a bar that blinks 100 times per kWh on the display. EAN: 4010312501863.
