Eltako Switching relay

3Ratings
BrandMore from Eltako
Delivered between Mon, 16.3. and Tue, 17.3.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Electric current output2

input voltage3

Number of poles2

Product details

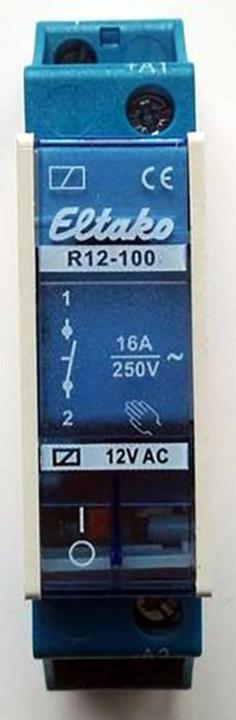

Eltako switching relay for Reihen-EB R12-100-12V
Manufacturer: Eltako
Designation: Switching relay for Reihen-EB
Type: R12-100-12V
Function: Other
Mounting type: DIN rail
Width in units of pitch: 1
Installation depth: 55 mm
Number of contacts as normally open: 1
Control voltage: 12 V
Control voltage type: AC
Frequency of control voltage: 50 Hz
Rated current: 16 A
Supply voltage: 230 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 2300 W
Max. fluorescent lamp load: 2300 VA
Max. fluorescent lamp load (duo circuit): 2300 VA
Max. fluorescent lamp load (parallel compensated): 2300 W
Fluorescent lamp load (parallel compensated): 500 VA
Max. switching current (cos phi: 0 VA)
Switching current (cos phi: 0.6): 10 A

Eltako switching relay for series-EB R12-100-12V: More details
Electromechanical switching relay with manual override and switch position indicator. Duty cycle 100%. Control power consumption 1.9 W. Contact distance 3 mm. Test voltage contact/contact 2000 V and test voltage control terminals/contact 4000 V.
EAN: 4010312200421.

Key specifications

Relay type
Switching relay
input voltage
12 V
Output voltage
12 V
Electric current output
16 A
Output current type
AC
Number of poles
1x

General information

Item number
17823890
Manufacturer
Eltako
Category
Relays
Manufacturer no.
22100011
Release date
10.12.2021

Relay properties

Relay type
Switching relay
input voltage
12 V
Output voltage
12 V
Electric current output
16 A
Output current type
AC
Switching function
Normally open
Number of closers
1x
Number of poles
1x
Max. Switching capacity
2.30 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
2.3 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
Switching relay for series EB 1S 16A

Product dimensions

Length
18 mm
Width
18 mm
Height
55 mm
Weight
100 g

Package dimensions

Length
9 cm
Width
6 cm
Height
2 cm
Weight
20 g
