ELSO Compact blind/roller shutter module for 12 drives DIN rail 12 PLE EHC

Delivered between Thu, 10.7. and Mon, 14.7.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

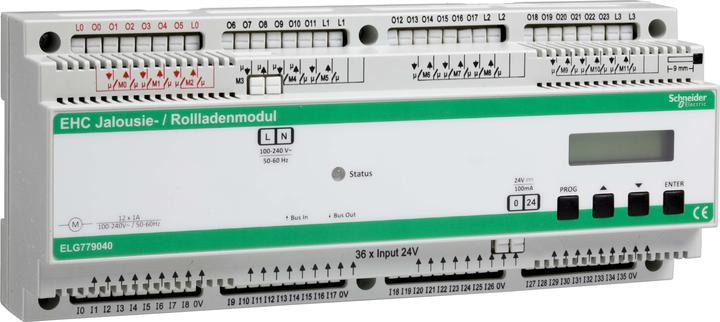

Elso roller shutter module EHC ELG779040

Manufacturer: Elso
Designation: Roller shutter module EHC expandable
Type: ELG779040
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Other
Radio bidirectional: No
Mounting type: REG
Width in subdivision units: 12
With bus coupling: Yes
Bus module removable: No
On-site/manual operation: Yes
With LED display: Yes
Number of inputs: 12
Switching current ohmic: 1 A
Max. switching capacity: 230 W
Max. number of shutter outputs: 12
Switching function: Yes
Current type: AC
Protection class (IP): IP20

Further details: Compact shutter/blind module for 12 drives DIN rail 12 PLE EHC. Blind/shutter module EHC, as an independent module, for controlling a maximum of 12 shutters, blinds, or awnings. Control with local push-buttons, as a group, and centrally; the local push-buttons are permanently assigned to the switching outputs. The groups (3) can be formed as required, with connection of wind, rain, twilight, and sun sensors, with integrated clock, with manual/automatic change-over, with feedback in. Connection with luminous marker module, clock, and sensor settings on display, 24 switching outputs 230 VAC, 1 A, motor load, maximum of 2 blind/roller shutter modules can be coupled (master/slave function), system expansion by means of expansion modules (maximum 1 input module and 2 output modules possible), mounting on DIN rail, 12 PLE.

Key specifications

Item number
23188609

General information

Manufacturer
ELSO
Category
UPS accessories
Manufacturer no.
ELG779040
Release date
22.11.2022

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Width
12 cm
