EKWB EK-Pro Manifold 2CPU 6GPU - Acetal

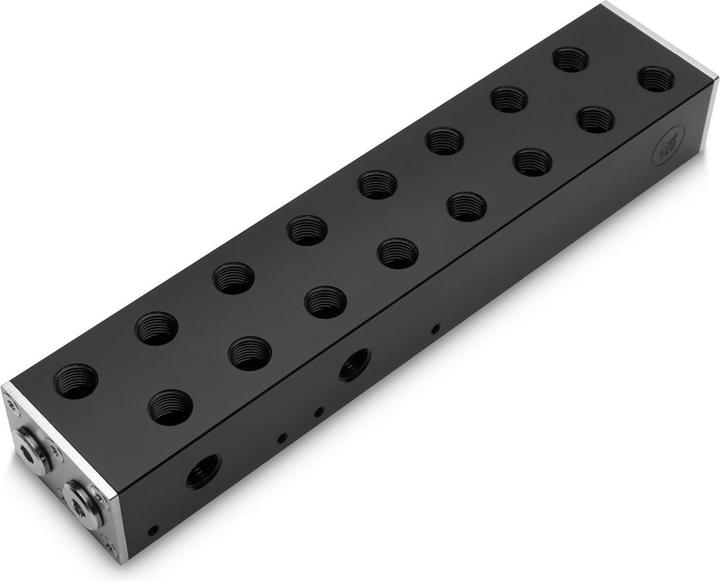

The EK-Pro Manifold is a specially designed distribution block for multiple water coolers in workstation systems. It provides perfect coolant distribution through the use of multiple G1/4-inch inlets and outlets. The EK-Pro Manifold 2CPU 6GPU can connect and supply water to two CPU and six GPU water blocks in parallel or semi-parallel setups.

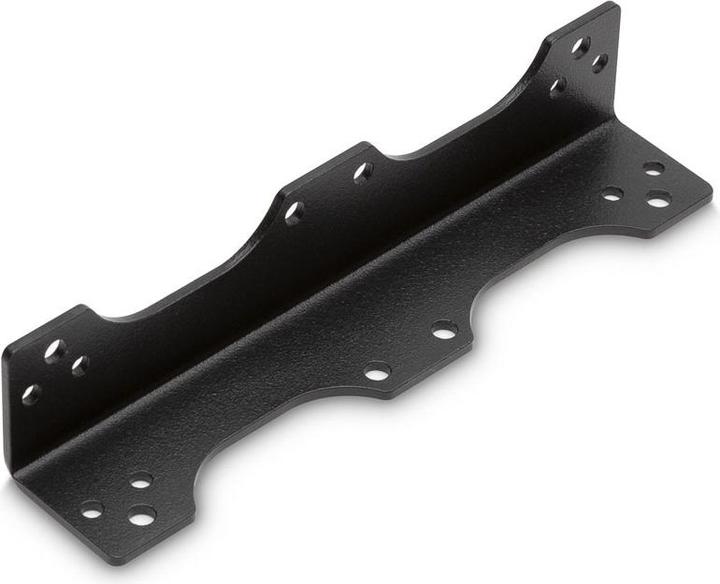

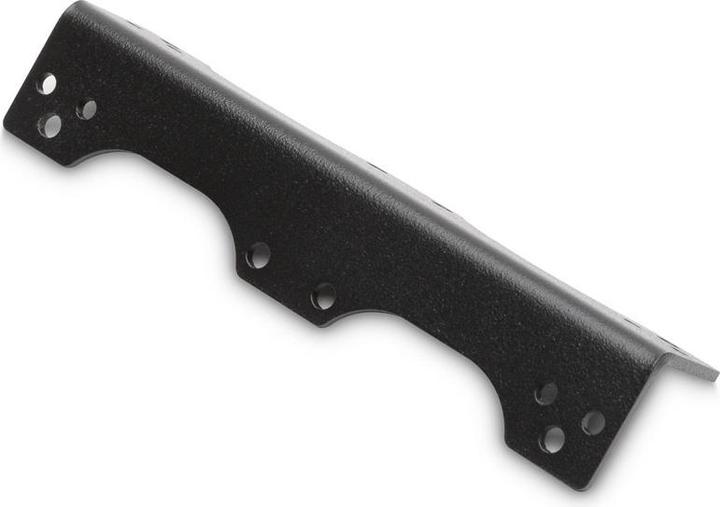

The block features a complete acetal body, stainless steel end caps, and nickel-plated brass plugs. Pre-assembled, it can be used directly. The EK-Pro Manifold comes with a universal mounting system that can be used in various scenarios. The steel mounting plate is equipped with mounting holes for 120mm and 140mm fan positions.

Technical details:

• Dimensions: 266 x 57 x 36 mm (L x W x H)
• Color: Black
• Material: Acetal, Metal
• Threads: 20x G1/4 inch
• Maximum number of CPUs: 2
• Maximum number of GPUs: 6
• Delivery includes:
• 1x EK Water Blocks EK-Pro Manifold 2CPU 8GPU
• 1x Screw and plug set
• 1x 6 mm and 2.5 mm hex key
• 1x Mounting frame

Note: Caution! Components of a water cooling system should only be used together with the same materials, otherwise corrosion and damage may occur. The distribution block does not serve as a reservoir. A total of 7 plugs are included in the delivery.
