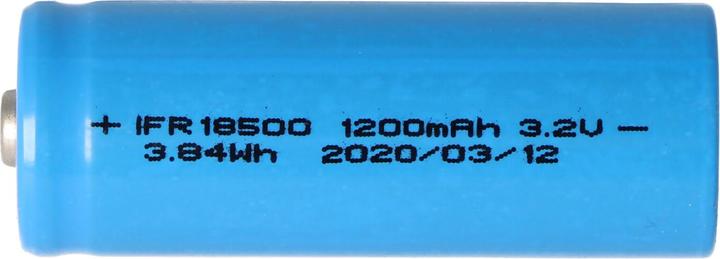

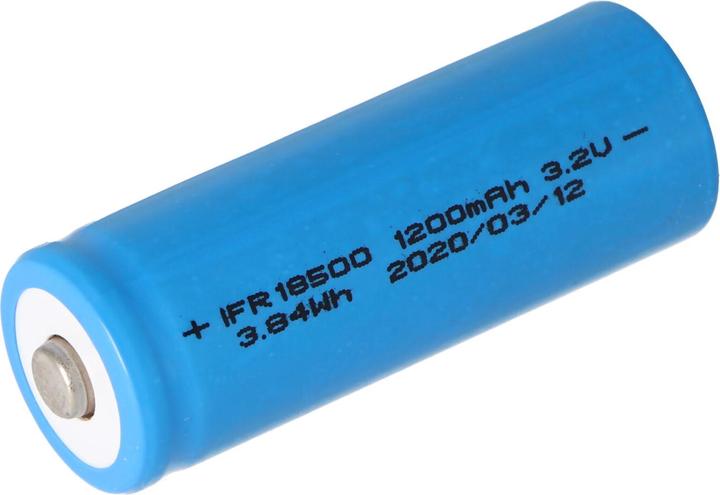

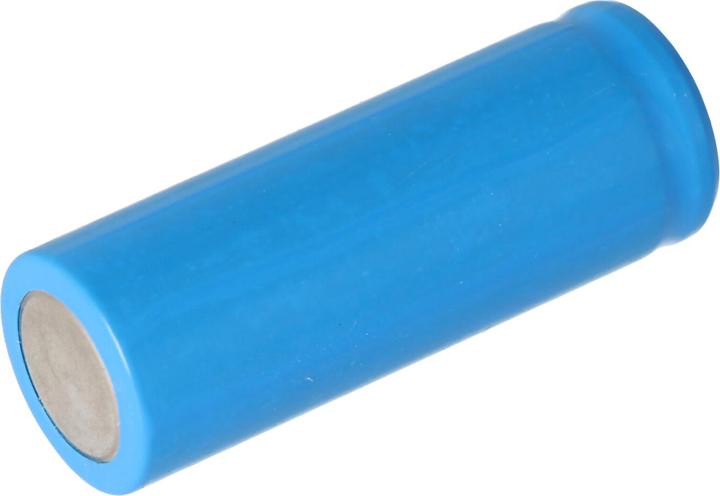

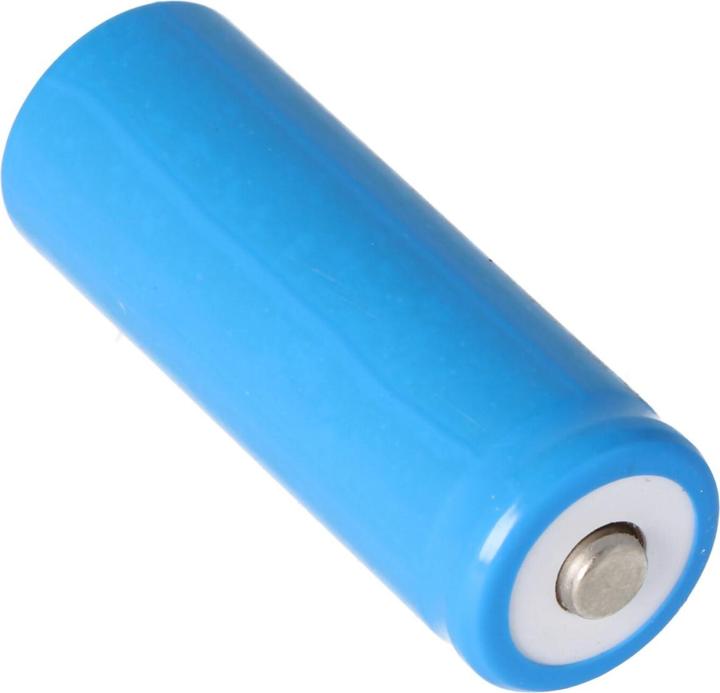

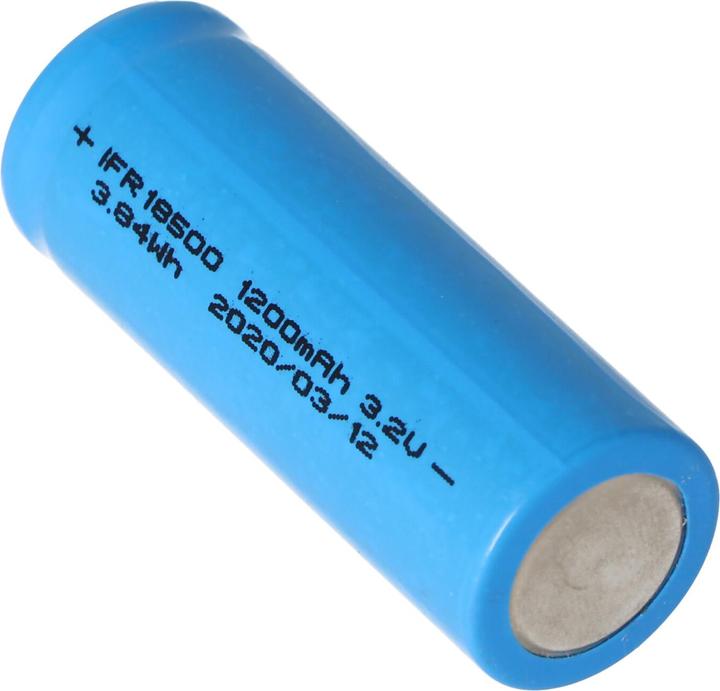

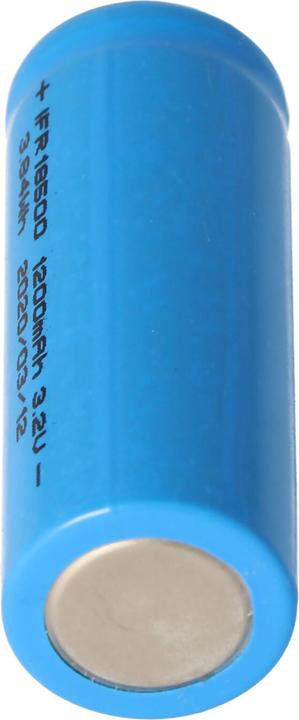

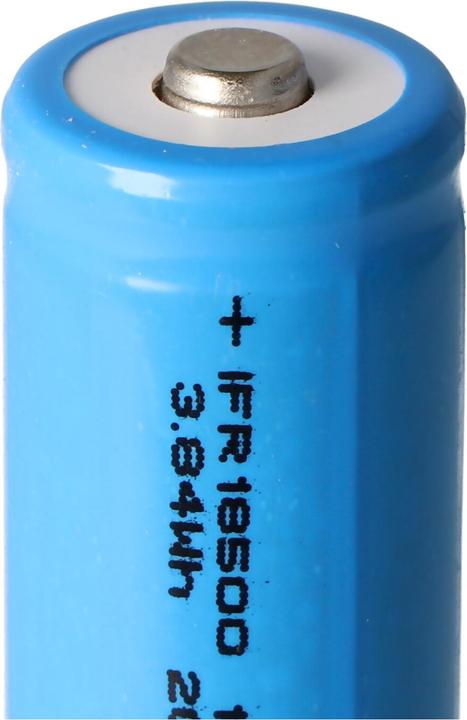

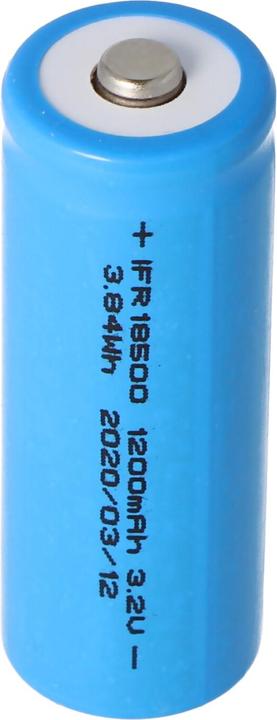

EIZfan Battery IFR 18500 LiFePo4 Button Top with head unprotected

Compared to the 3.7V lithium-ion or lithium-polymer batteries, 3.2 volt LiFePO4 batteries offer an alternative when large discharge currents, short charging times and high cycle stability with somewhat lower energy density are required.IFR 18500J Lithium iron phosphate LiFePO4 battery (positive terminal elevated, unprotected)High safety: due to the solid electrolyte and cell chemistry, LiFePO4 cells are considered intrinsically safe.Areas of application: solar lamps, industry, model making and diving lamps.Suitable chargers include: XTAR SP1, XTAR WP2H, XTAR VP2, Nitecore D4Capacity max. 1200mAh, Min. Capacity 1100mAh, Rated voltage 3.2 Volt, End of charge voltage 3.6V ± 0.05, End of discharge voltage 2.0V, Discharge current (constant) 3C 3300mA, Discharge current (pulse) 5C 5.5A, Positive terminal increasedChemical composition Lifepo4, Diameter 18.15mm ± 0.1, Height 50.7mm ± 0.2, Weight 30g ± 1, Charging method CC-CV Safety instructions: Lithium cells may only be operated with protection electronics! Please note that lithium cells may only be used by qualified personnel. Incorrect handling or short-circuiting can lead to fire or explosion. Further characteristics: Lithium iron phosphate batteries are thermally stable and are not subject to memory effect. They work on the basis of lithium and are characterised by a high energy density. Technical data for "IFR 18500 - 1200mAh 3.2V LiFePo4 battery (Button Top) unprotected, charging current normal 0.5C 550mA 2h, charging current fast 1C 1000mA 1.5h, operating temperature charging 0 ° C - 45 °C, operating temperature dischargeC - 45 °C, Operating temperature discharging -20 °C - 60 °CReplacement battery, Also suitable for the then Duracell Solar Lithium Phosphate Battery 18500 with 3.2 Volt and 1000mAh capacity, 18500 3.2V 884620029562, 0884620029562, BL 18500-1000.
