Product details

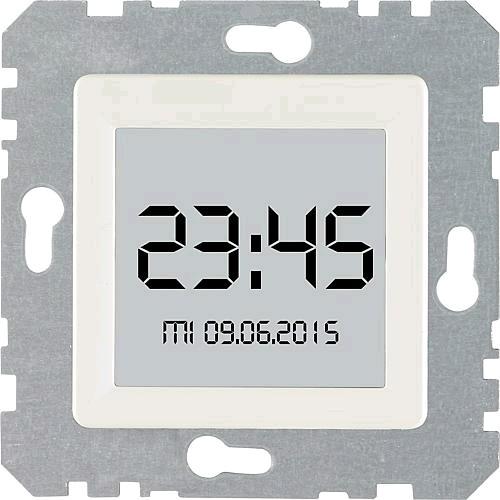

Venetian blind timer XL 50
Electronic digital time switch with a large touch screen and display of time and date. It allows for programming of daily and weekly schedules with two up and down switching times each. Features an Astro program for opening and closing times with a switching time shift of 60 minutes, and the option to combine set switching times. Includes a manual switching option with a stop function and jog mode, as well as holiday switching with random shifting of switching times by 1-15 minutes.
It has a connection for an optional sun/twilight sensor, with sun and twilight functions that include adjustable brightness values and delay time. The turning angle and turning angle time are adjustable for blind control. The timer automatically changes for winter/summer time, with a motor running time adjustable up to 180 seconds and a power reserve of 240 minutes. It features two extension inputs for on-off 230V, screw terminals of 0.5-2.5mm², and a combi central disc of 50x50mm. Rated IP20.
Technical data
EAN: 4027236034513
Product group: Other switch ranges
Manufacturer: EGB
Supplier article number: 70 W
Colour: White
Switching contact: 230V/3A.
