Efest Rechargeable battery IFR14500 - AA, Flat Top (without head) flat positive terminal

1 pcs., 400 mAh, Rechargeable battery
Delivered between Thu, 15.5. and Wed, 21.5.
Only 1 item in stock at third-party supplier
Supplied by

Product details

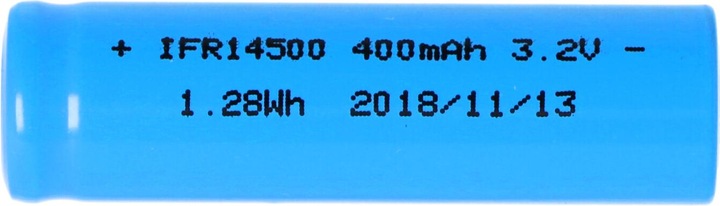

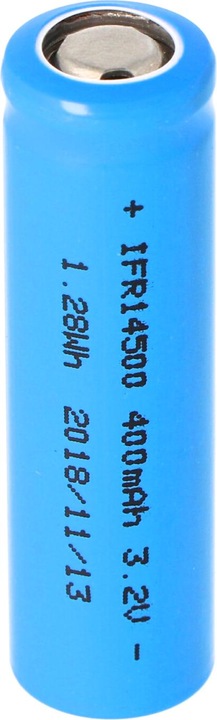

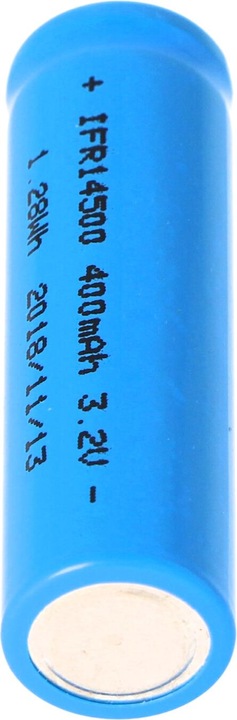

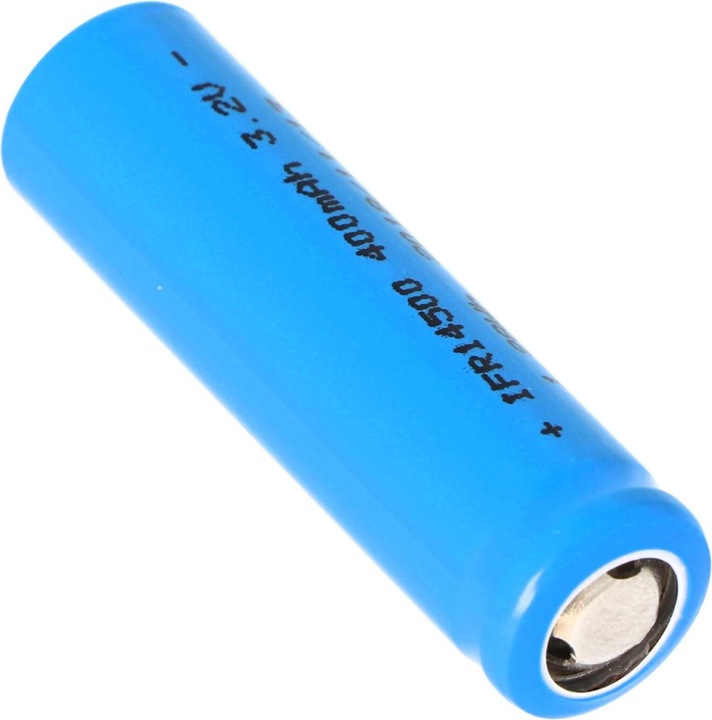

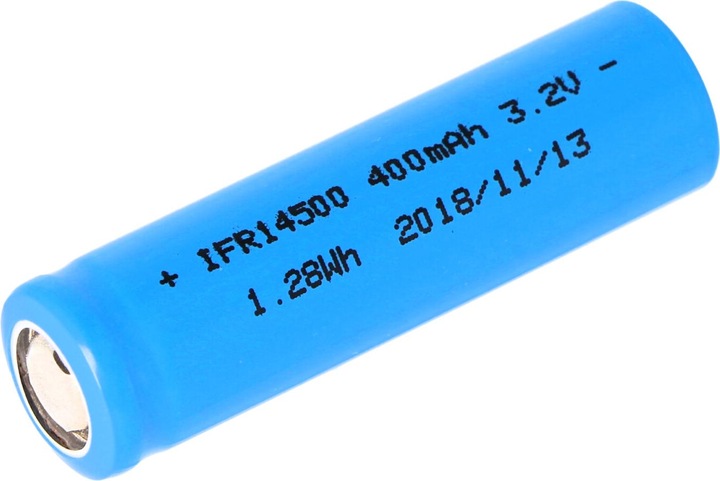

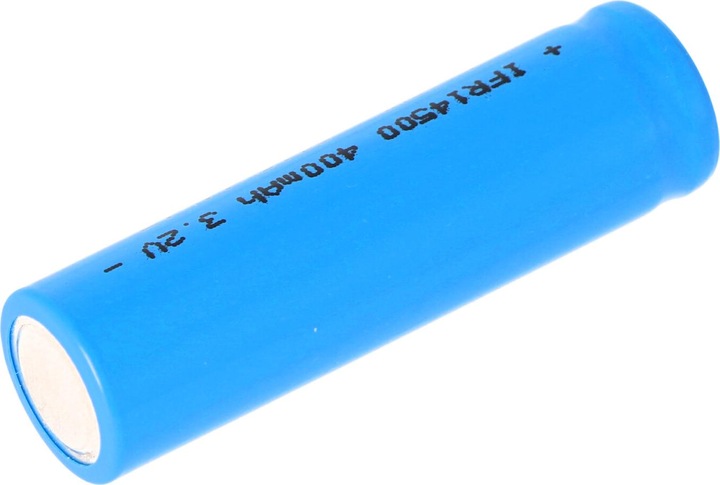

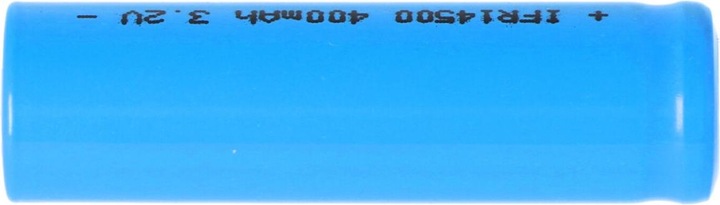

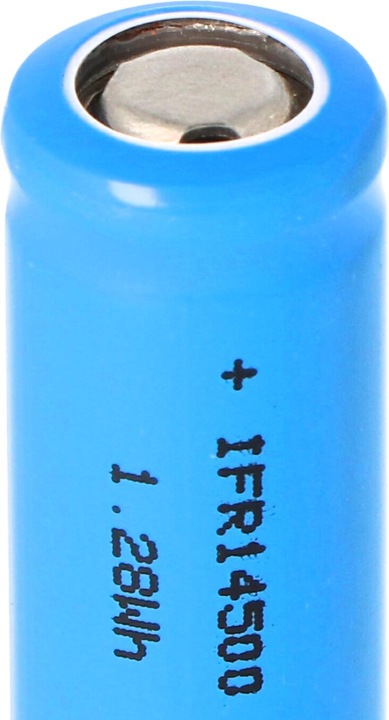

IFR14500 - 400mAh LiFePo4 Battery 3.2V

Application area: Solar lamps, LED applications, model building, industry.
Capacity: 400mAh
Min. capacity: 350mAh
Nominal voltage: 3.2V
Charge termination voltage: 3.6V ±0.05
Discharge termination voltage: 2.5V
Watt-hours: 1.28Wh
Max. charge current: 0.4A
Charge current: 0.1 - 0.4A
Positive terminal: flat (Flat Top)
Protection: none
Diameter: 14.2mm ± 0.15
Height: 49.8mm ± 0.35
Weight: 25g ± 1
Charging method: CC-CV

Additional features:
Lithium iron phosphate batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Note: Lithium cells should only be used with protective electronics!

Safety notice:
Please note that lithium cells may only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Technical data for "IFR14500 - 400mAh AA LiFePo4 Battery 3.2V":
Notes: Charging lithium batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 3.65 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 3.5 volts, as this significantly increases their lifespan or number of charge cycles (potentially up to doubling). Only lithium chargers with a charge up to 3.65V should be used for charging. Furthermore, batteries and accumulators should not be disposed of in household waste!.

Key specifications

Items per sales unit
1 pcs.
Rechargeable batteries
AA / LR6 / LR06 / Mignon / R6 / R14505
Accumulator type
Rechargeable battery
Item number
14117429

General information

Manufacturer
Efest
Category
Battery charger
Manufacturer no.
AKT-100112
Release date
3.11.2020

Battery properties

Accumulator type
Rechargeable battery
Battery type
LiFePO4
Voltage
3.20 V
Capacity
400 mAh
Items per sales unit
1 pcs.
Power capacity
1.28 Wh

battery declaration

Battery category
Device batteries

Charger properties

Rechargeable batteries
AA / LR6 / LR06 / Mignon / R6 / R14505

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
25 g

Ingredients and instructions for use

Ingredients
IFR14500 - 400mAh LiFePo4 battery 3,2VApplication: Solar lamps, LED applications, modelling, industry,Capacity (mAh)400mAhMin. capacity (mAh)350mAhNominal voltage (Volt)3,2VFinal charge voltage (Volt)3,6V ±0,05EntFinal charge voltage (Volt)2,5VWatt hours1,28WhMax. Charge current (Ampere)0.4AL Charge current (Ampere)0.1 - 0.4APlus pole (structure)flat (Flat Top)Protectionnot available Diameter (mm)14.2mm ± 0.15Height (mm)49.8mm ± 0.35Weight (g)25g ± 1Charging methodCC-CVOther featuresLithium iron phosphate batteries are thermally stable and are not subject to a memory effect.They work on the basis of lithium and are characterised by a high energy density.Note: Lithium cells may only be operated with protective electronics!Safety note:Please note that lithium cells may only be used by qualified persons.incorrect handling or short circuits can lead to fire or explosion.Technical data for "IFR14500 - 400mAh AA LiFePo4 solar battery 3.2V "Notes: Charging lithium batteries requires a special charger that charges the batteries using a special charging process. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 3.65 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 3.5 volts, as this significantly increases the service life or number of charging cycles (possibly up to double). Only lithium chargers with a charge of up to 3.65V may be used for charging. e.g: XTAR VP2, XTAR SP1, XTAR WP2H, Nitecore D4, Furthermore, rechargeable batteries and batteries do not belong in household waste! Please dispose of them as prescribed by law in the municipal collection centres or in the [usually green] containers provided for this purpose by retailers.
