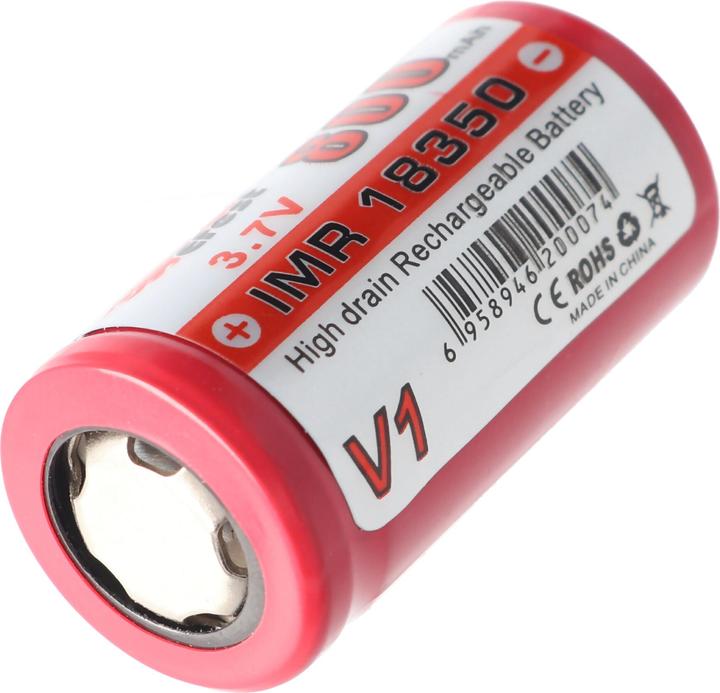

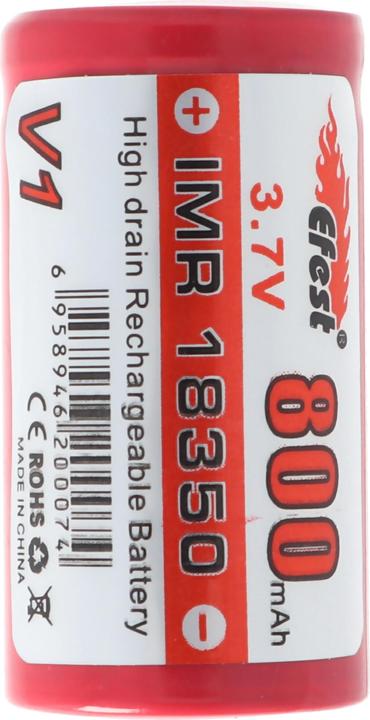

Efest IMR 18350 V1 (Pluspol flach)

A powerful battery cell developed by Efest, made from a safe chemical composition (Lithium-Manganese). The manganese does not react with lithium, which gives these cells a high level of intrinsic safety. Specifically designed for battery carriers and flashlights.

Efest IMR 18350 V1 (Flat top, unprotected)
Capacity 800mAh
Minimum capacity measured at 3A 670mAh
Nominal voltage 3.7V
Charge termination voltage 4.2V ± 0.05V
Discharge termination voltage 2.5V
Calculated internal resistance 0.09 Ohm
Flat top
No protection
Chemical composition LiMn (IMR)
Diameter 18.30 mm ± 0.1 mm
Height 34.85 mm ± 0.1 mm
Weight 21 g ± 1 g
Charging method CC-CV

Safety notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical specifications for "Efest IMR 18350 V1 - 800mAh 3.7V Li-Ion (Flat top)":

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and number of charge cycles (potentially doubling them). Only lithium-ion chargers should be used for charging.
