Efest Battery IMR 18490 V1

A powerful battery cell specifically designed for battery carriers and flashlights, featuring lithium-manganese. The manganese does not react with lithium, which gives these cells a high level of intrinsic safety.

Efest IMR 18490 V1 (Flat Top)
Capacity: 1100 mAh
Min. Capacity: 1050 mAh
Nominal Voltage: 3.7 V
Charge Termination Voltage: 4.2 V ± 0.05 V
Discharge Termination Voltage: 2.50 V
Calculated Internal Resistance: 0.07 Ohm
Flat Top
Chemistry: LiMn (IMR)
Protection Circuit PCB: None

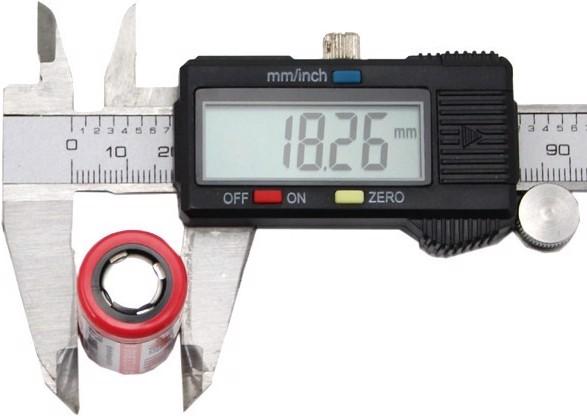

Diameter: 18.3 mm ± 0.15 mm

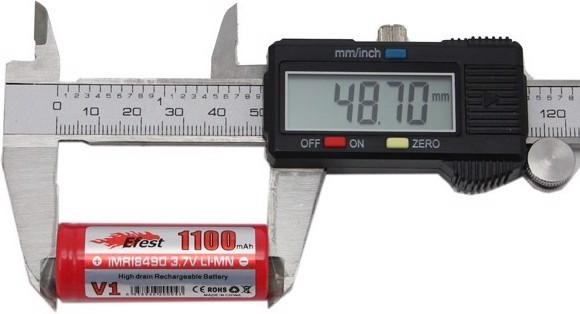

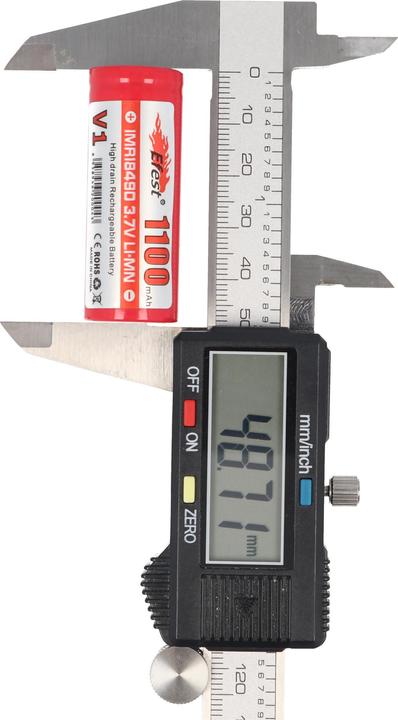

Height: 49.0 mm ± 0.15 mm
Weight: 34 g ± 1 g

Safety Instructions: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical Data for "Efest IMR 18490 V1 - 1100 mAh, 3.7 V"
Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advisable to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and the number of charge cycles (potentially doubling it). Only lithium-ion chargers should be used for charging. However, inexpensive chargers often have the disadvantage of not shutting off safely after the charging process is complete, continuing to charge the batteries with a small current, which can be dangerous.
