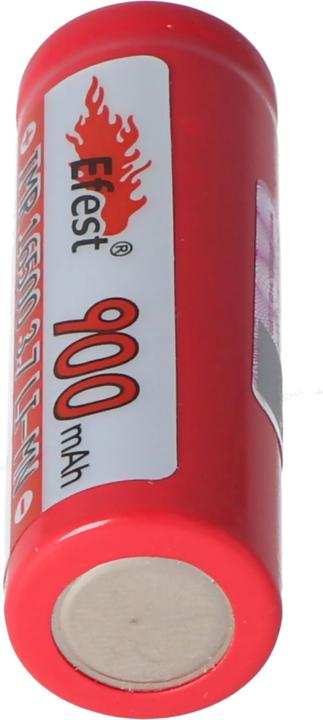

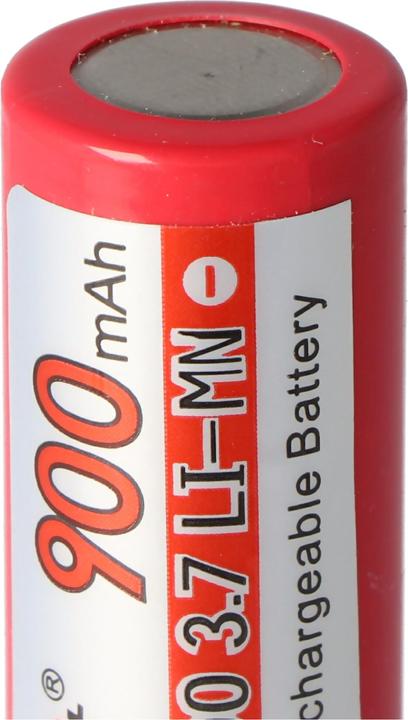

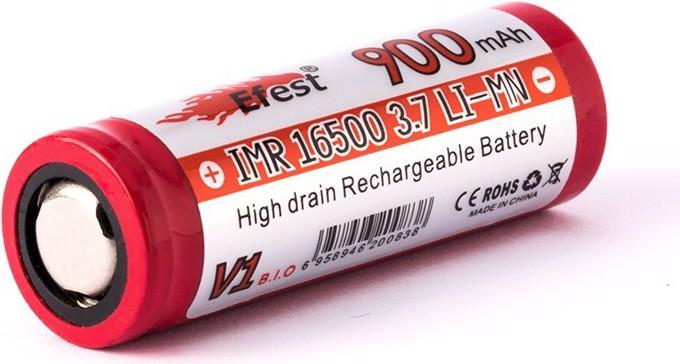

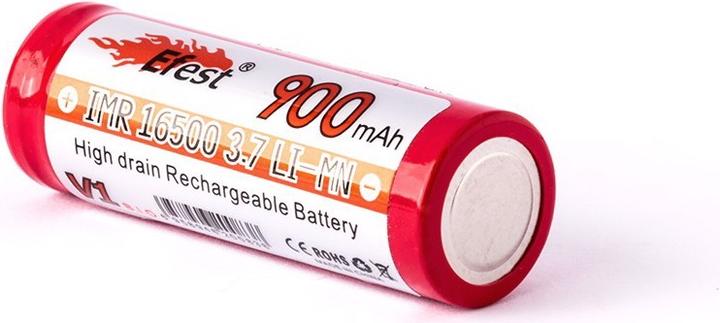

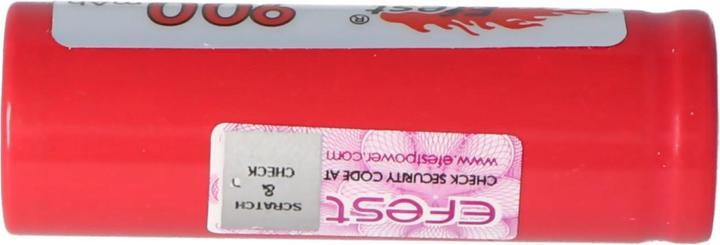

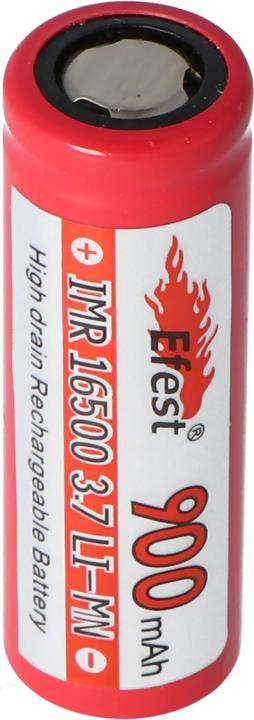

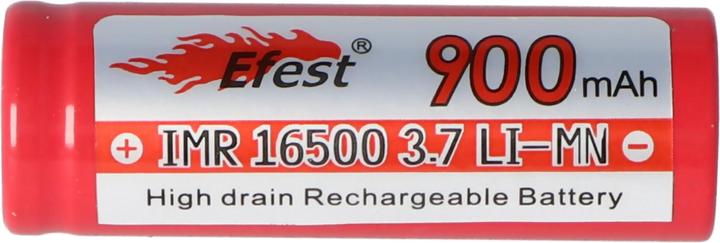

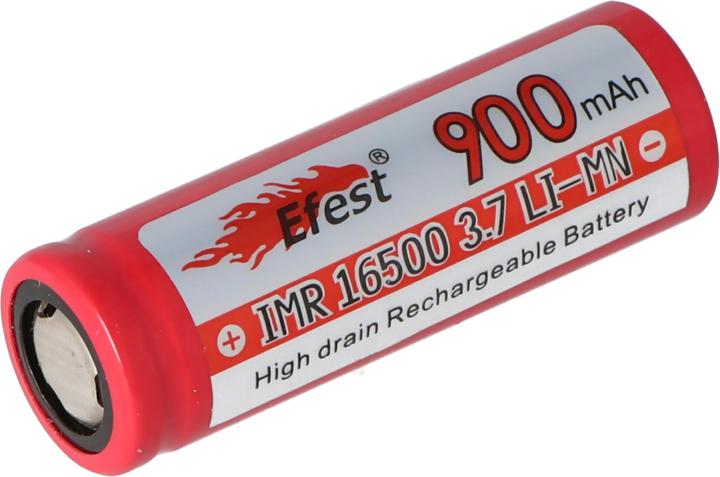

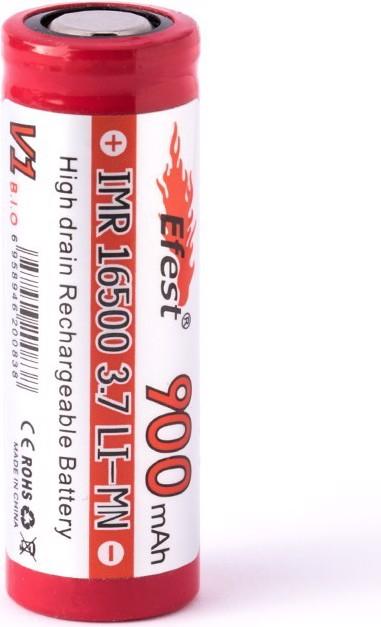

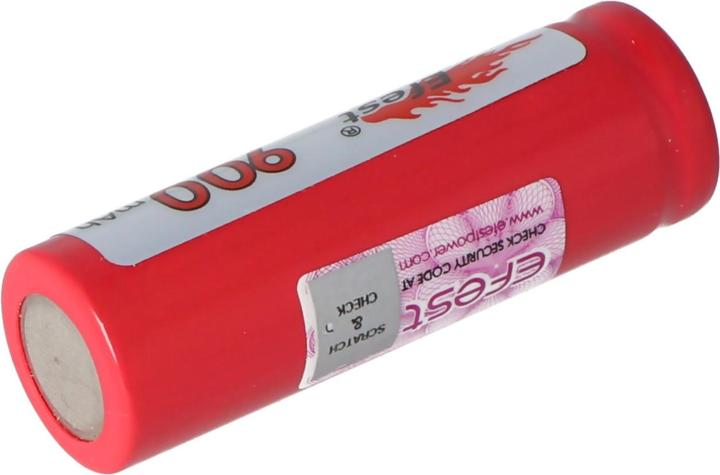

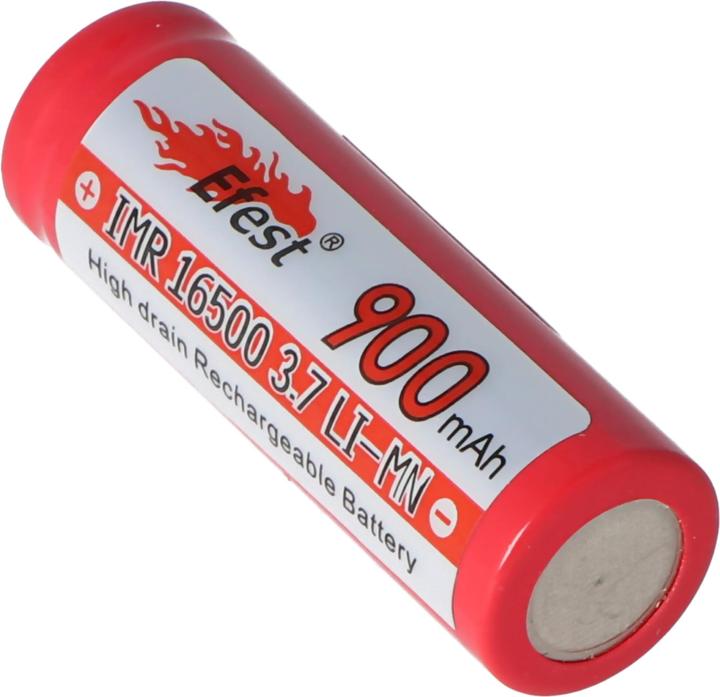

Efest Akku IMR 16500 Pluspol flach

A rechargeable Li-Ion battery cell with low self-discharge and low internal resistance. Ideal for model building, LEDs, etc. Dimensions: 50.05 x 16.6 mm. Efest IMR 16500 unprotected (Flat Top).

Technical specifications:

• Type: Li-Ion
• Capacity: 900 mAh
• Min. Capacity: 850 mAh
• Nominal voltage: 3.6 V - 3.7 V
• Charge termination voltage: 4.2 V ± 0.05 V
• Discharge termination voltage: 2.75 V
• Charge current: 0 A - 0.7 A
• Max. charge current: 1 A
• Max. discharge current constant/pulse: 6 C = 7 A / 10 A
• Composition (chemistry): LiMn
• Protection circuit BMS electronics: none

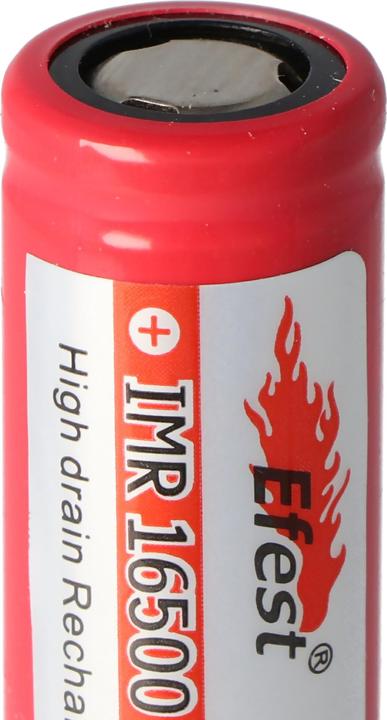

• Positive terminal (design): flat (Flat Top)
• Diameter: 16.60 mm ± 0.05 mm
• Height: 50.05 mm ± 0.10 mm
• Weight: 38 g ± 0.01 g
• Charging method: CC-CV

Safety notes: Lithium cells should only be operated with protective electronics (deep discharge, short circuit, and overcharge protection). Please note that lithium cells should only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate based on lithium and are characterized by high energy density.

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.25 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and the number of charge cycles (potentially up to doubling). Only lithium-ion chargers should be used for charging.
