Efest Akku IMR 14650

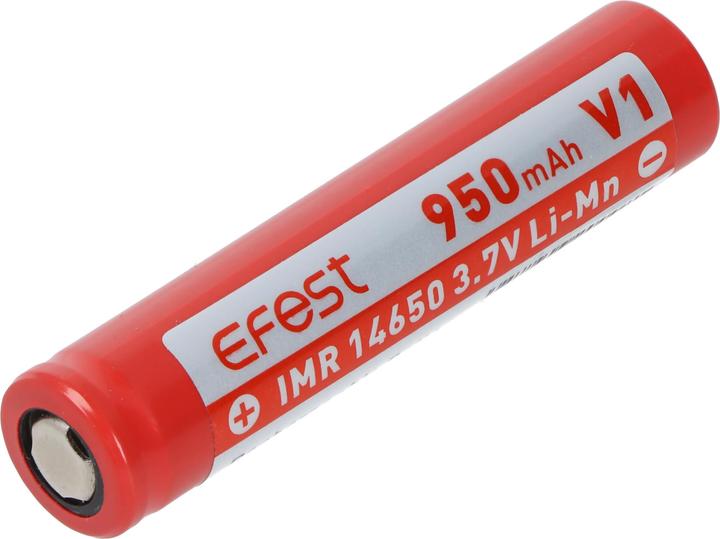

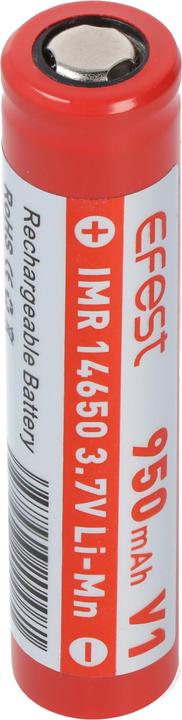

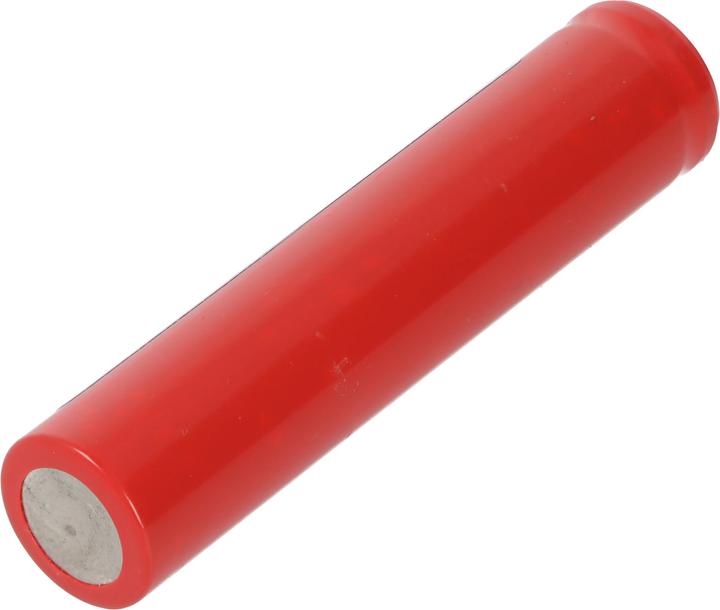

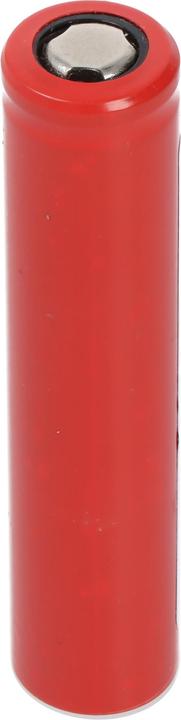

Efest IMR 14650 - 950mAh 3.6V - 3.7V Lithium-Ion Battery

Efest IMR 14650 with 950mAh

3.7 Volt Lithium-Ion Battery

A high-performance cell developed in collaboration with Efest, featuring a safe chemical composition based on lithium manganese. The manganese does not react directly with the lithium, which gives these cells a high level of inherent safety.

Technical Specifications

Capacity 950mAh, Nominal Voltage 3.7 Volt
Charge Voltage 4.2V ±0.05, Discharge Voltage 2.75V
Protection Circuit BMS not present, Constant Discharge Current 8A
Charging Current Slow 0 - 0.5A / 3.5h, Fast Charging Current 1A / 2.5h
Positive Terminal Flat (Flat Top), Chemistry LiMn (IMR)
Diameter 14.00mm ±0.1, Height 65.10mm ±0.1, Weight only 27g ±1

Always observe safety precautions: LiMn lithium cells should only be operated with special protective electronics! Please note that LiMn lithium cells should only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion. LiMn lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.
