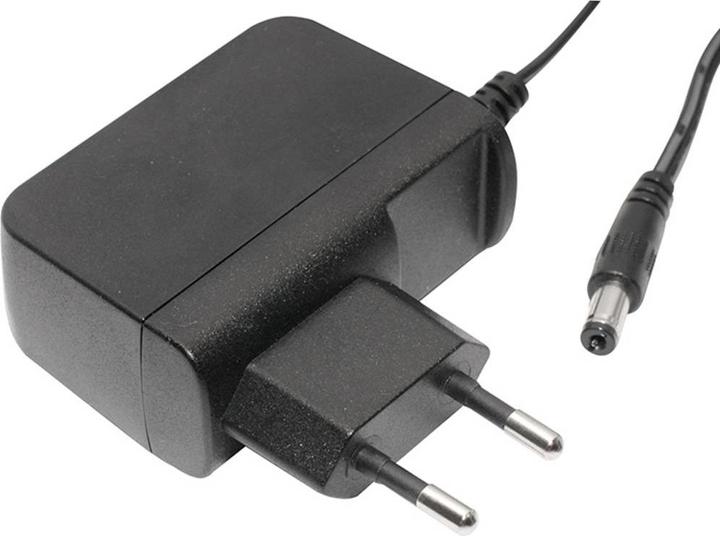

Edac Power Electronics EA1005AHES501 Plug-in power supply, fixed voltage 5 V/DC 1.2 A

Thanks to their very compact dimensions of 55 x 25 x 55 mm, the power supplies are ideal for applications with limited space as well as for mobile applications, as they weigh only 70 g. The plug-in power supplies are equipped with a 5.5 x 2.1 mm barrel connector on the DC side as a standard connection. A variety of other versions with DC connectors are available upon request. The power supplies represent a cost-effective solution for all applications powered by external power supplies. Their quality meets high industrial standards, complying with the EMC requirements of EN55032 Class B and certified for electrical safety according to IEC/EN 62368-1. Additionally, they conform to the latest requirements of DOE Energy Levels VI and ERP (EU) 2019/1782. This results in a high average efficiency of up to 86.8% across the entire power range and a standby consumption of less than 0.075 W. According to their IP protection class, the series is intended for indoor applications. Their DC output features protection against overload and overvoltage; after resolving a fault condition, an automatic restart occurs.
