Eaton Tripp Lite Series SRWF4U

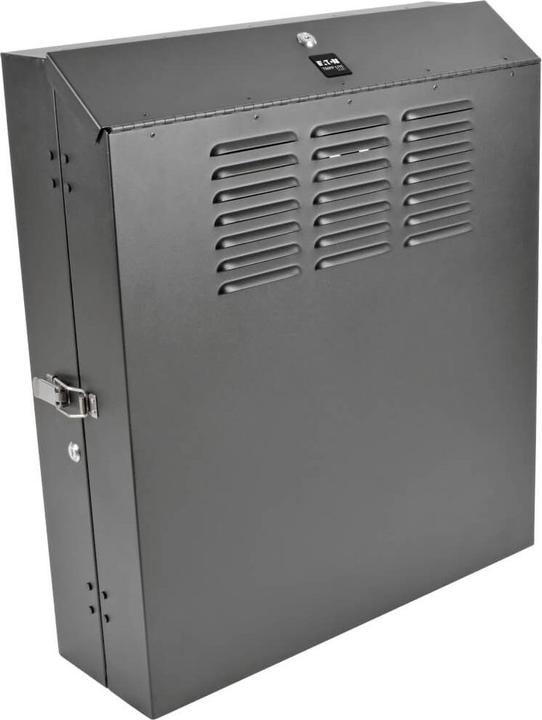

The depth-adjustable 4U server cabinet SmartRack SRWF4U with a flat profile is designed to accommodate 19-inch racks according to EIA standards for network cabling cabinets, suitable for placement in retail stores, classrooms, back offices, and other areas with limited floor space where equipment needs to be securely, neatly, and unobtrusively stored. The enclosure is made of high-performance steel with a durable black powder coating and has a maximum load capacity of 68 kg.

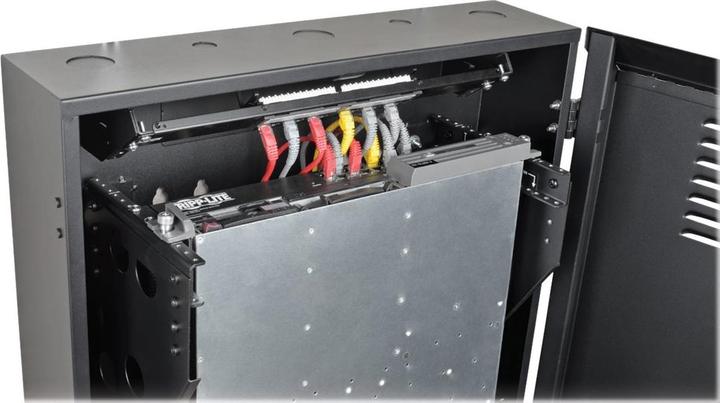

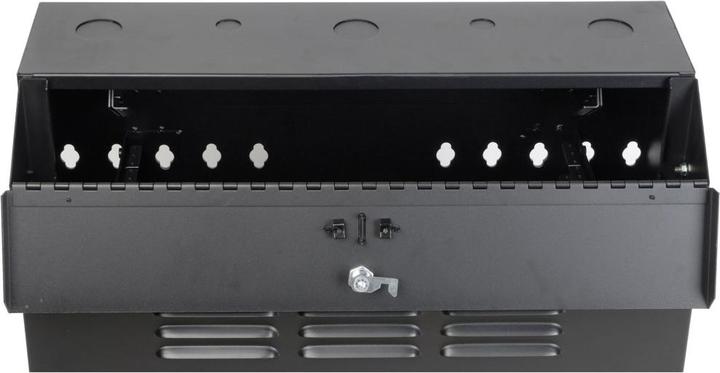

Since the flat cabinet is mounted vertically, it protrudes only eight inches from the wall while housing equipment with a depth of up to 20 inches, including network switches and patch panels. In addition to the 4U server cabinet space, it also includes a pull-out 2U mounting bracket at the top of the enclosure for patch panels with a depth of up to 2.5 inches.

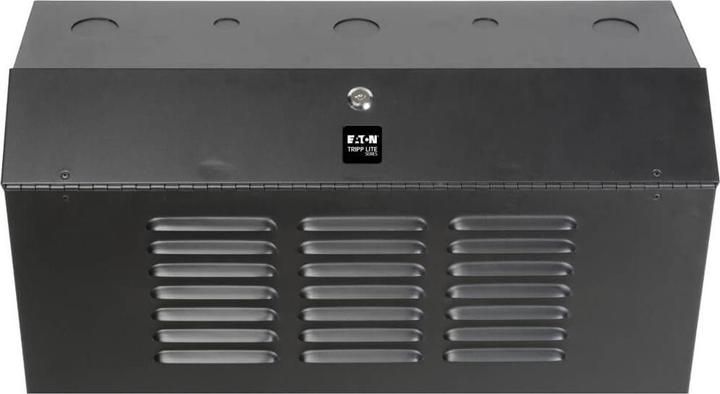

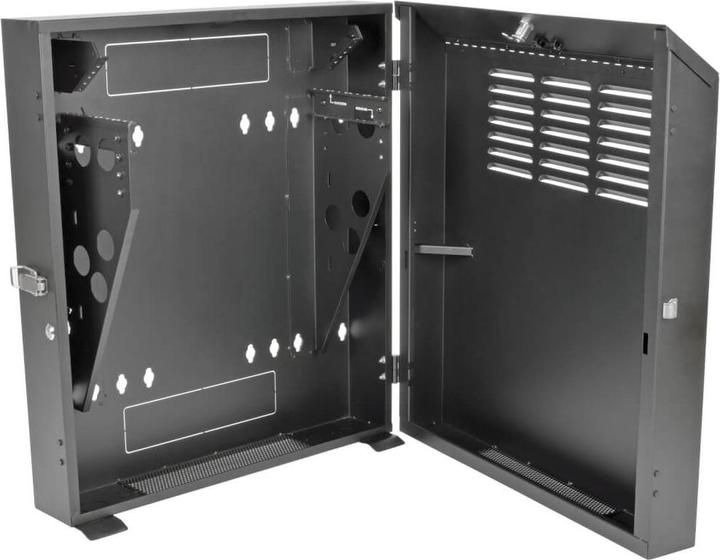

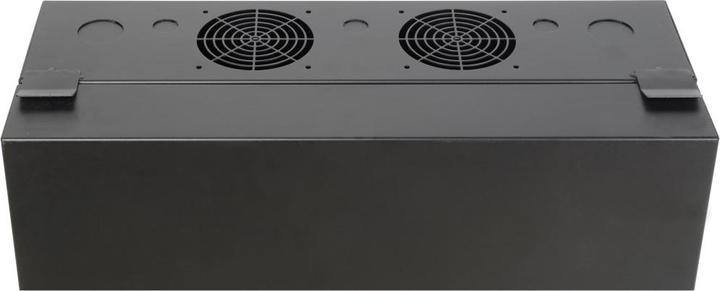

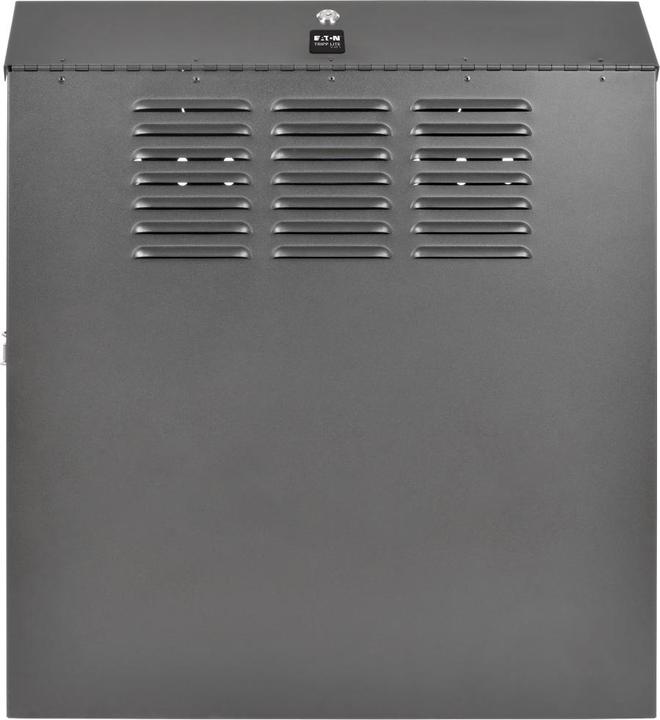

The top plate and front door are securely locked to prevent damage, tampering, or theft. The cabinet is ventilated, allowing air to flow freely and keeping the equipment cool. The front door is reversible and can be opened to the left or right. Convenient openings at the top and bottom allow for easy cable management.

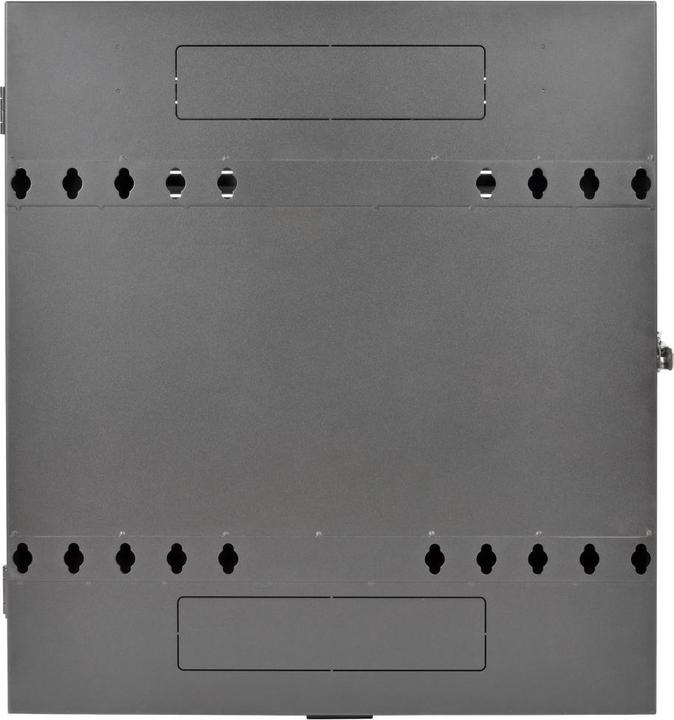

The SRWF4U is delivered fully assembled and ready for wall mounting. Installing the equipment is straightforward and easy using M6, M12, or M24 compatible threaded holes.
