Eaton Tripp Lite Series PDU Switched 7.4kW 230V 16 C13 2 C19 2 IEC309 32A Blue Cords 2U - Power Distribution

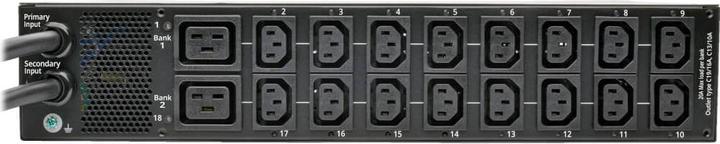

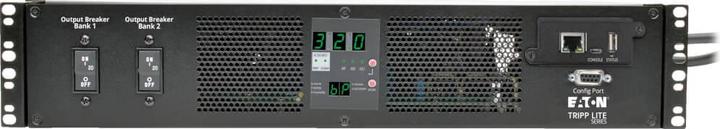

The switched single-phase automatic transfer switch PDU PDUMH32HVATNET with 7.7 kW for 200-240 V (ATS-PDU) offers remote monitoring of power supply and enables redundant power supply for network devices with non-redundant power supply configurations. It is ideally suited for data centers and server rooms. The installation is done in 2U 19-inch racks according to EIA standards. It features 18 switched outlets (16 C13 and two C19 outlets) in two load banks, each protected by a 20 A circuit breaker.

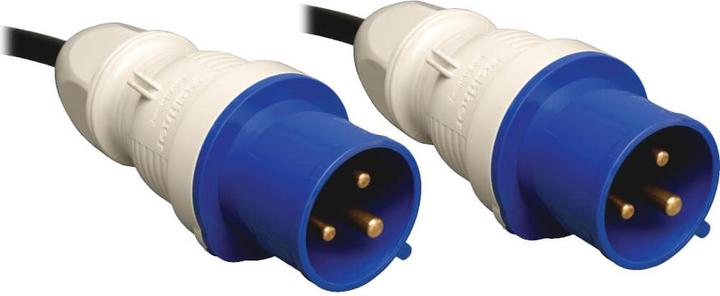

Three-meter-long dual input cables with blue IEC309 32 A (2P+E) connectors are used to connect a separate single-phase 230 V primary and secondary power source. The PDU continuously evaluates the power quality of both input sources. The automatic TRIAC transfer switching (Dynamic Solid State) allows the PDU to switch to the secondary source within 1-5 milliseconds if the primary source fails or becomes unstable, ensuring that your connected devices operate without interruption.

Integrated network management interface of the LX platform. The Java-free HTML5-based LX platform network interface allows full remote access for monitoring the PDU status and email notifications via a secure web browser, SNMP, Telnet, or SSH. It supports automatic detection of 10/100 Mbit/s for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring features. Supported protocols include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, and NTP.
