Eaton Tripp Lite Series 3.2-3.8kW Single-Phase Switched PDU with LX Platform Interface, 200-240V Outlets

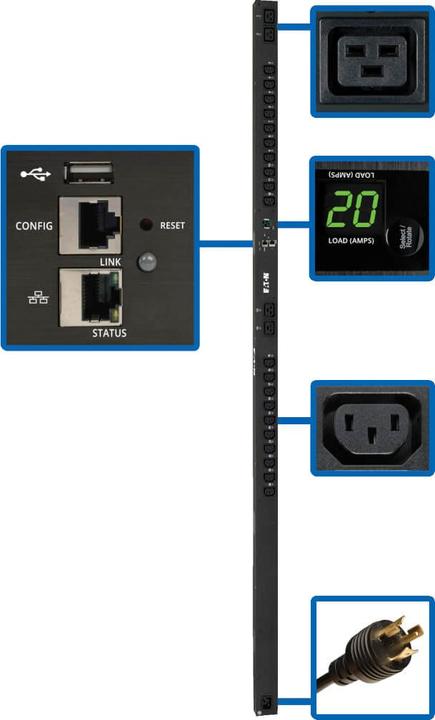

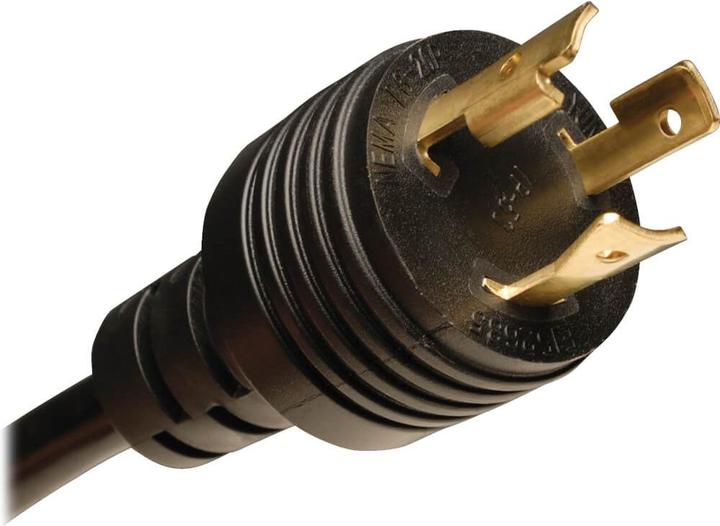

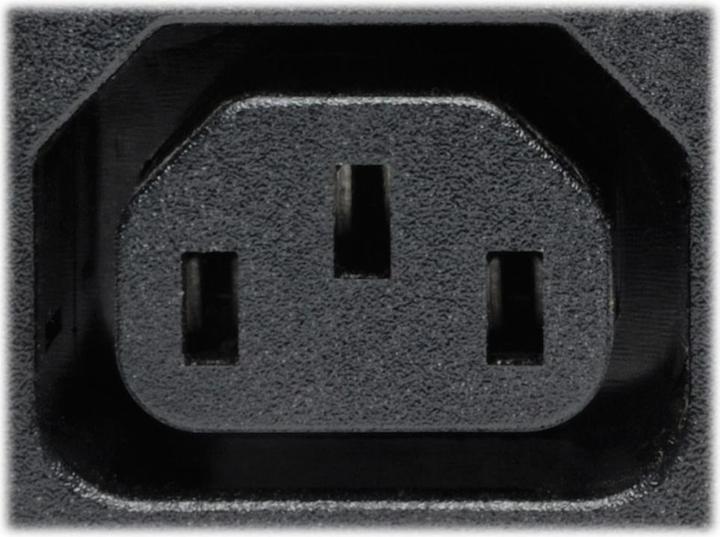

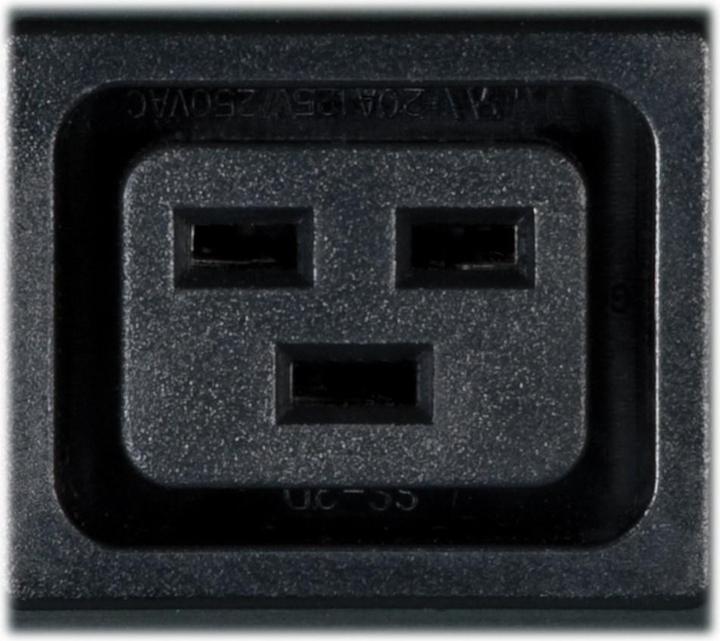

The single-phase switched PDU PDUMV20HVNETLX with 3.3-3.7 kW offers advanced network control and remote monitoring of power supply, with the ability to turn each outlet on and off, reboot, or lock the power supply. It is recommended for any IT or industrial application and features 24 switched outlets (20 C13 and 4 C19 outlets) with integrated plug-locking sleeves to prevent accidental disconnection of cables. A 3.05 m long cable with a NEMA L6-20P plug connects the C20 input of the PDU to a compatible AC source, generator, or protected UPS.

The integrated Java-free HTML5-based LX platform network interface allows full remote access for monitoring the PDU status and email notifications via a secure web browser, SNMP, Telnet, or SSH. It supports automatic detection of 10/100 Mbps for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring features. Supported protocols include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, and NTP.

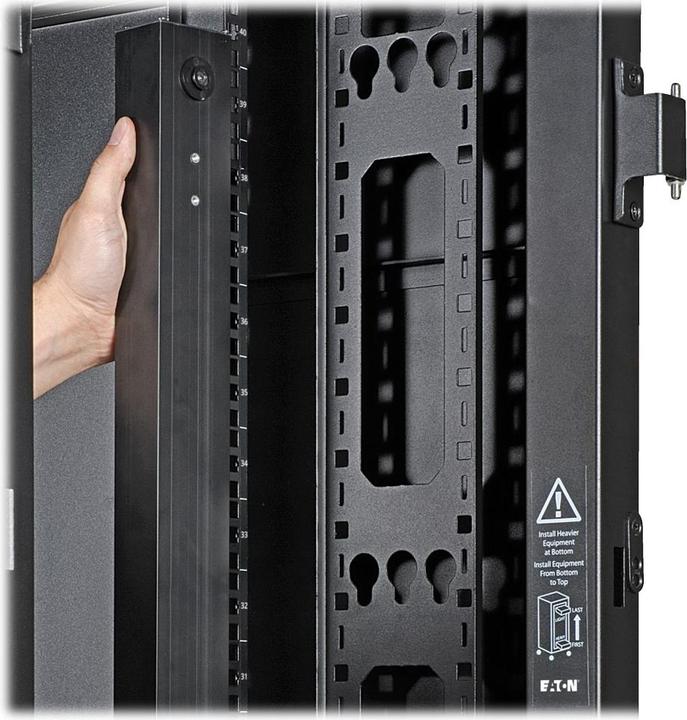

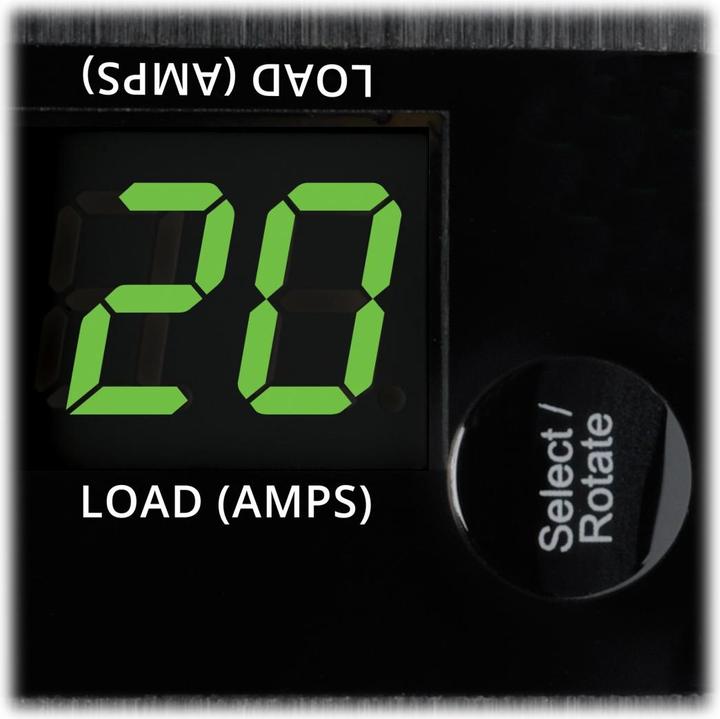

With a digital ammeter, you can monitor the load of each bank in real-time to ensure it remains well below the maximum capacity, eliminating the risk of overload. The vertical PDU can be mounted in 0-HE 19-inch racks according to EIA standards using the included tool-less mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the device with rear-facing outlets for better airflow or equipment access.
