Eaton SmartRack 16U Low-Profile Vertical-Mount Wall-Mount Half-Height Server Rack Enclosur

The depth-adjustable SRWF16U38 SmartRack® 16U rack enclosure with a flat profile and server depth for vertical wall mounting is designed to accommodate 19-inch rack devices according to EIA standards for network cabinets, retail stores, classrooms, back offices, 2-post racks, and other areas with limited floor space where equipment needs to be securely, neatly, and unobtrusively placed. The cabinet is made of high-performance steel with a durable black powder coating and has a maximum load capacity of 181.4 kg.

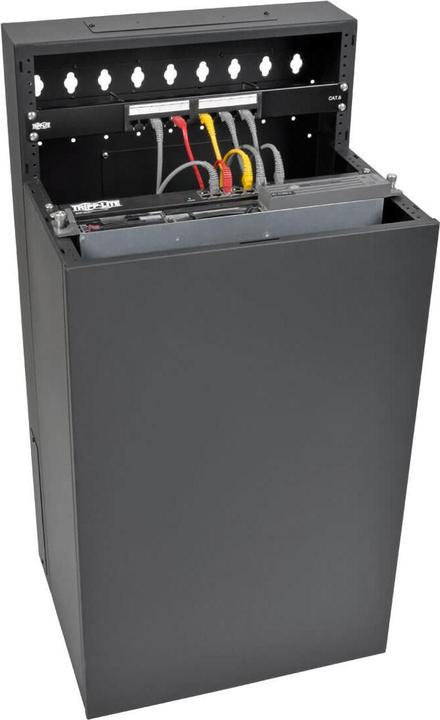

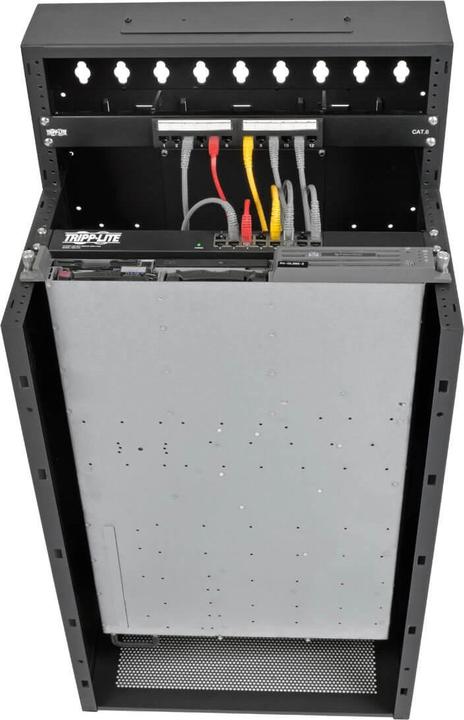

Since the flat cabinet is mounted vertically, it only protrudes 24 inches from the wall while accommodating devices up to 35 inches deep, including 1U servers, UPS systems, battery packs, and switches. In addition to 12U of rack space in the primary mounting area, it also includes a 4U mounting space at the top of the enclosure for patch panels.

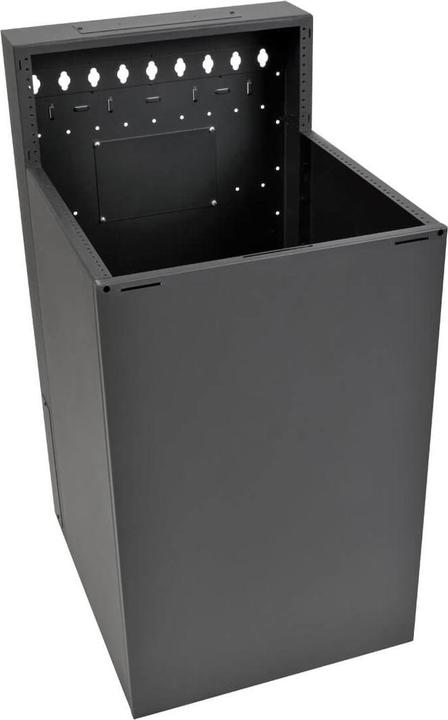

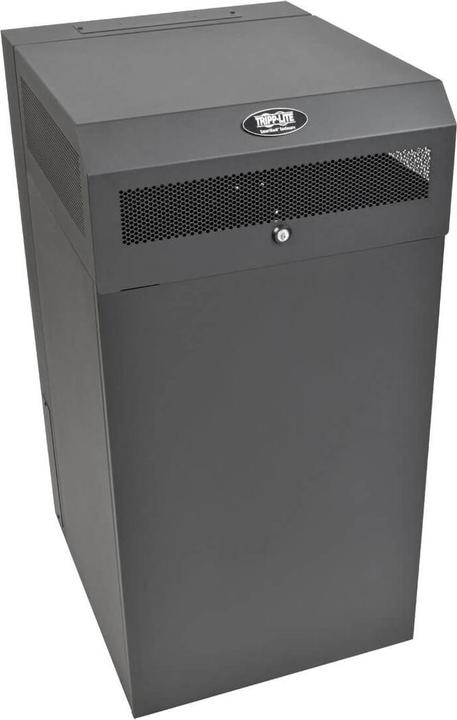

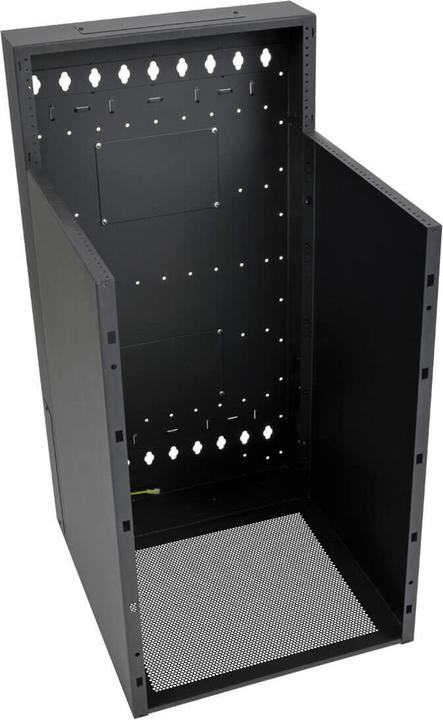

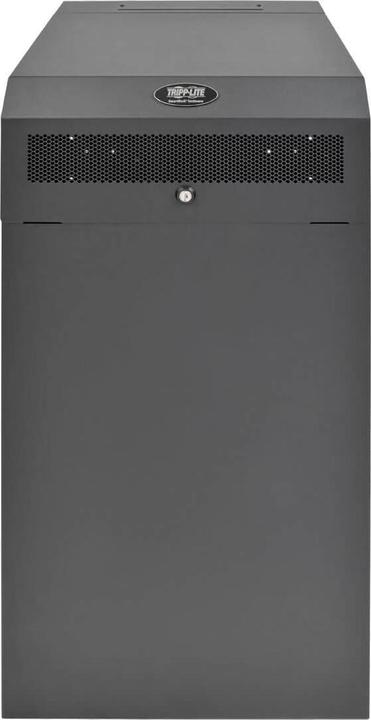

The top cover and front panel are removable to allow quick access to equipment. The cover can be securely locked with the included keys to prevent damage, tampering, or theft. The ventilated cabinet allows for free airflow and keeps the equipment cool. Convenient openings at the top, bottom, and sides enable easy cable management.

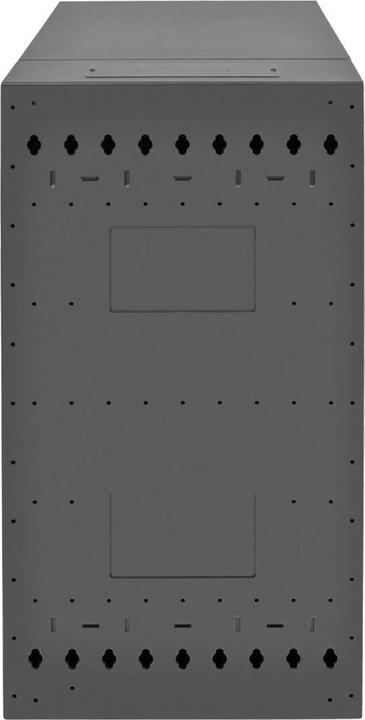

The modular design of the SRWF16U38 allows you to disassemble the cabinet for wall mounting with user-provided mounting hardware in minutes. Mounting holes are spaced 40 cm apart for standard wall stud screws. Installing equipment is straightforward with threaded holes that support 12-24 mounting in 2-post racks.
