Product details

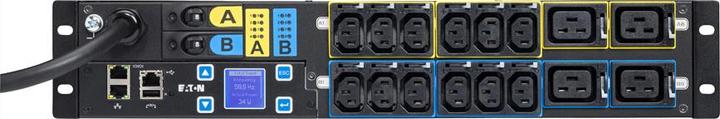

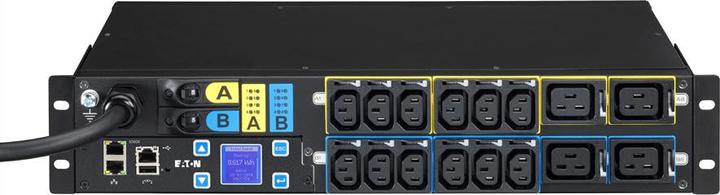

Eaton Power Distribution Unit EMAH28
Manufacturer: Eaton
Designation: Power Distribution Unit 16A, 1 Phase
Type: EMAH28
Mounting dimensions (standardized): other
Mounting direction: horizontal/vertical
Electrical connection: connection cable with plug
Type of electrical connection: C20
Cable length: 3 m
Number of C13 sockets: 8
Width: 203 mm
Height: 445 mm
Depth: 43 mm
Supply voltage: 230 V
Network disturbance filter: no
Switchable: yes
SNMP: yes

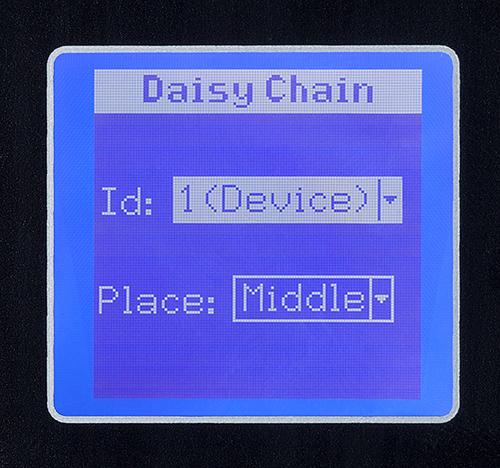

With display: yes
Eaton Power Distribution Unit EMAH28: additional details

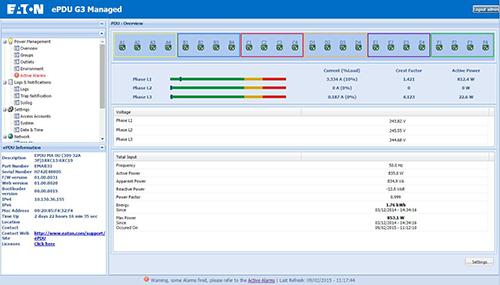

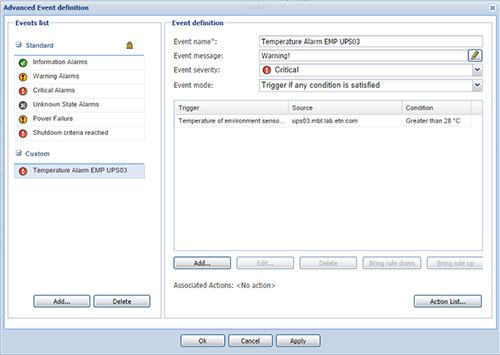

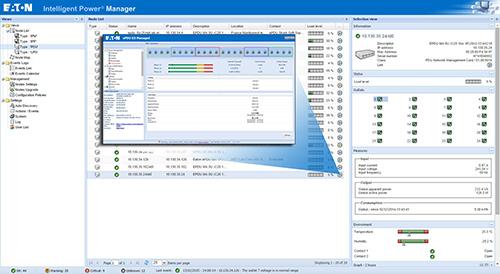

Eaton ePDU G3 Managed enables secure remote control as well as remote rebooting, allows measurement collection for devices on A and B feeds, input and phase measurement, current measurement at the circuit breaker, circuit breaker status monitoring, Level 3 PUE measurements, measuring equipment on A and B feeds, as well as switching on and off (chained ePDUs required), output sequencing control to avoid high inrush currents and start devices in the correct order, high security with user access control, password protection, and SSL configurable to 1024 or 2048 bits, IEC plug retention system secures all IEC plugs, 60 °C operating temperature, color-coded outputs and branch circuits for easy load balancing, Eaton's hydraulic/magnetic load break switches with touch protection, low-profile form factor: 52 mm wide x 53 mm deep for most models, mass configuration and updates available via Intelligent Power Manager software, single pane monitoring of many ePDUs and UPSs as part of the power supply chain, and gentle shutdown of equipment via Intelligent Power Manager software, installation: button mounting on rear and sides + variable mounting system.
EAN: 3553340696206.
