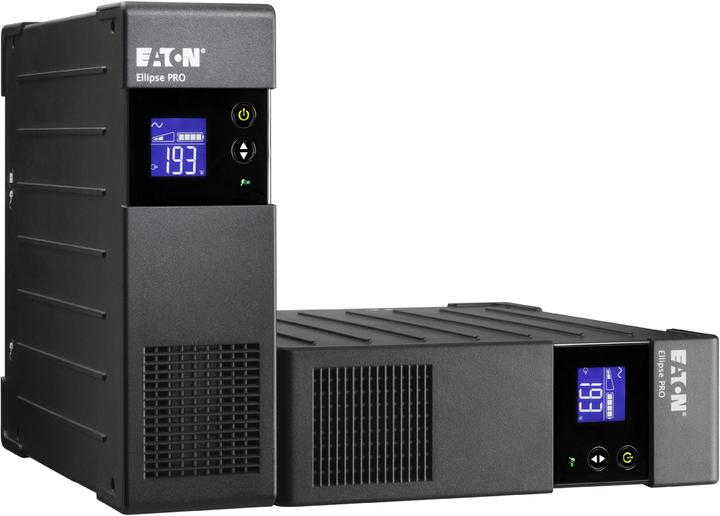

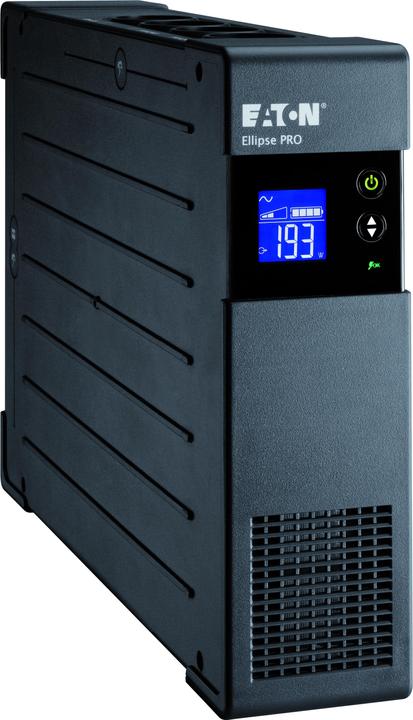

Eaton Ellipse PRO 1600 IEC

1035 VA, 1000 W, Line-interactive UPS
3Ratings
BrandMore from Eaton
Delivered between Tue, 9.12. and Wed, 10.12.
10 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

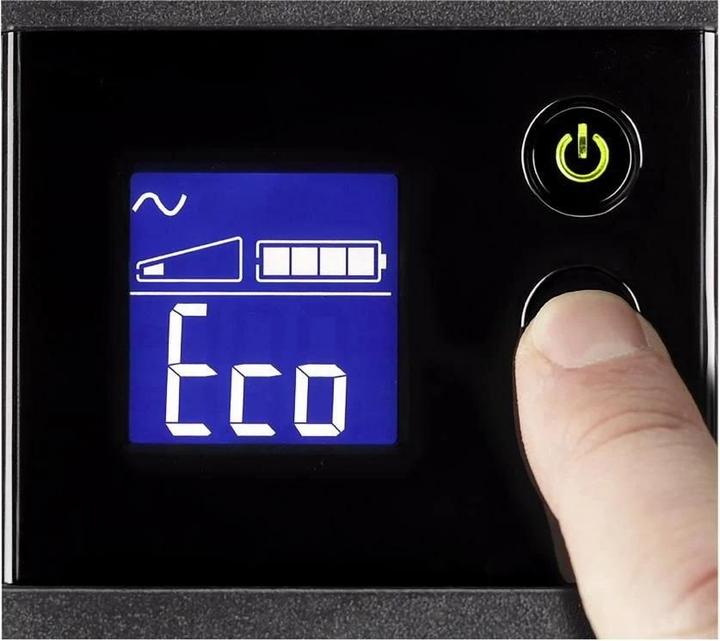

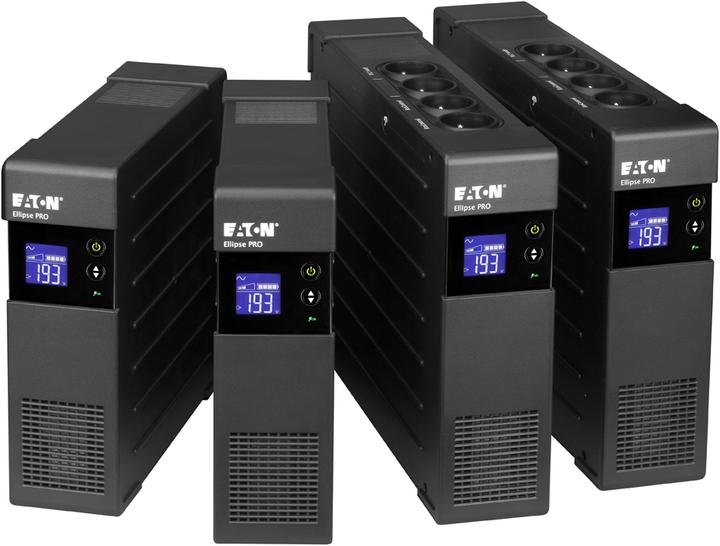

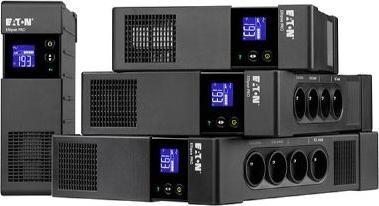

The Eaton Ellipse PRO 650-1600VA is a line-interactive UPS specifically designed to protect workstations with demanding applications. The Ellipse PRO features an LCD display for real-time status monitoring and measurements. It also includes EcoControl sockets that enable energy savings of up to 20 percent, as well as Advanced Surge Reduction (ASR) – surge protection – in accordance with the requirements of the IEC 616431-1 standard.

Key specifications

Model
Desktop

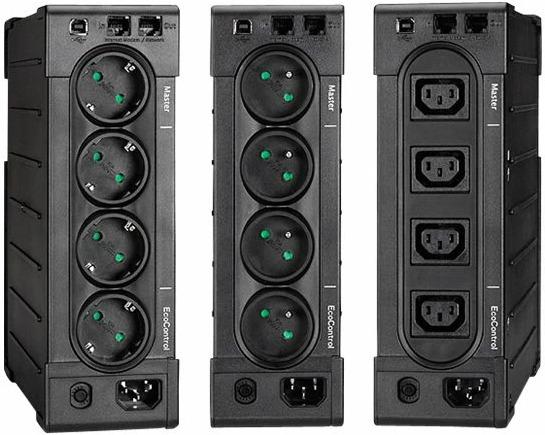

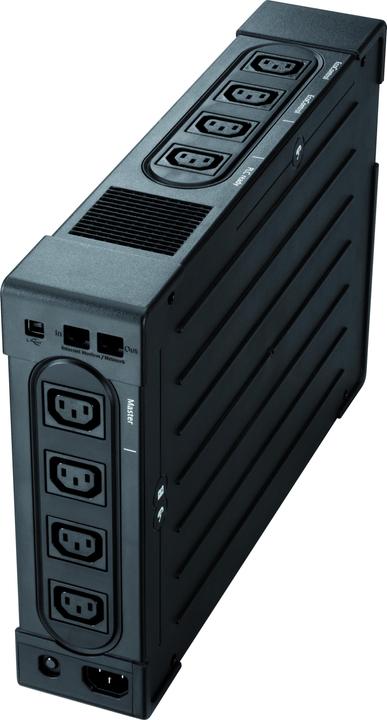

Plug type
C13
Scope of application
Server room
Operating time at full load
2 min
Item number
10053983

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
ELP1600IEC
Release date
17.11.2022
External links
Manufacturer's site (de)
May include power adapter
Yes

UPS properties

UPS type
Line-interactive UPS
Power output
1000 W
Output power capacity
1035 VA
Model
Desktop

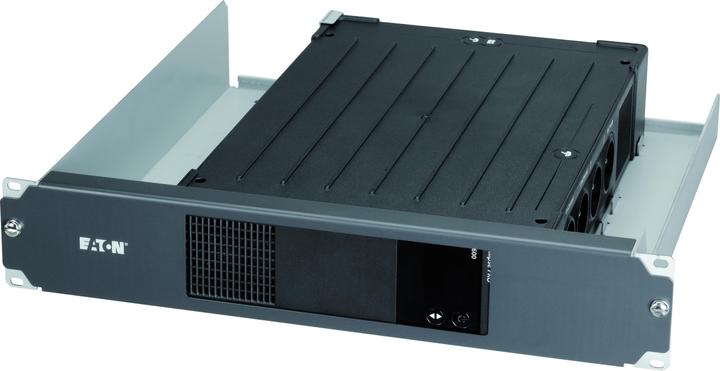

Rack Unit
2U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection, Protection for 1000BASE-T, Protection for 100BASE-T, Protection for Modem/Fax/DSL

Application range

Scope of application
Server room

Connector plug

Plug type
C13

Connections

USB ports
USB-A
Network connections
RJ45 (1x)

Mains supply properties

input voltage
150 - 285 V
output voltage
230 V
Input frequency
50 - 60 Hz
Output frequency
50 Hz
overvoltage protection
600 J

Operating conditions

Maximum operating temperature
35 °C
Operating temperature
0 - 35 °C
Operating humidity
0 - 95%
Max. noise level
27 dB

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
2 x
Battery weight per cell
2500 g
Voltage
150 V
Capacity
9 Ah
Power capacity
1000 Wh

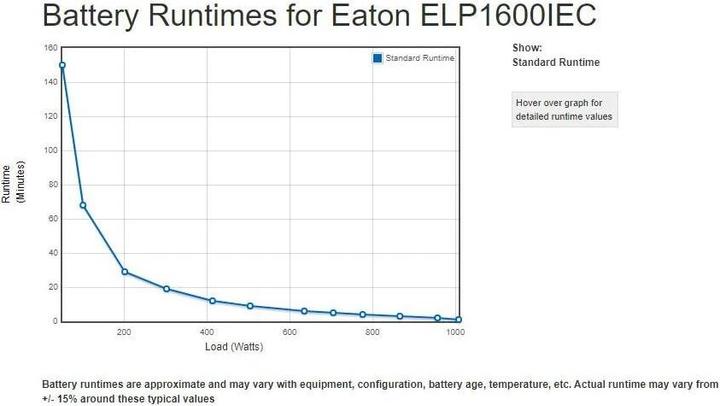

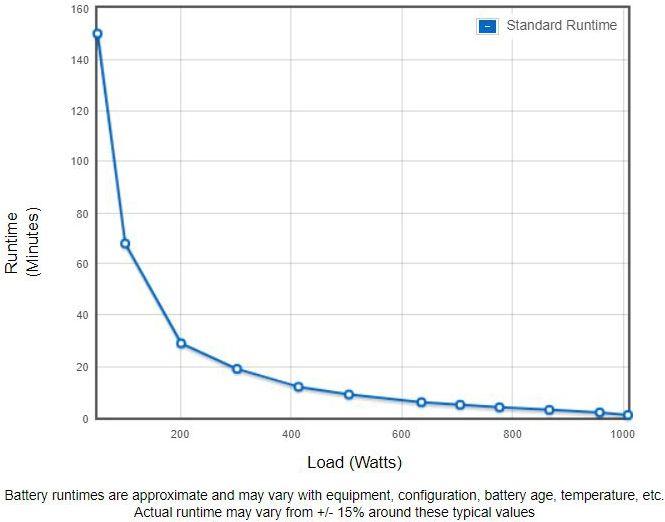

Operating time at full load
2 min
Operating time at half load
9 min

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Cable set, Manual, Software, Software CD, UPS, USB cable
Items per sales unit
1 x

Product dimensions

Height
275 mm
Weight
11.30 kg
Width
82 mm
Length
390 mm

Package dimensions

Length
49 cm
Width
14.50 cm
Height
33 cm
Weight
13 kg
