Eaton Ellipse PRO 1600 DIN

1600 VA, 1000 W, Line-interactive UPS
Ratings
Delivered between Fri, 25.7. and Wed, 30.7.
More than 10 pieces in stock at supplier
free shipping

Product details

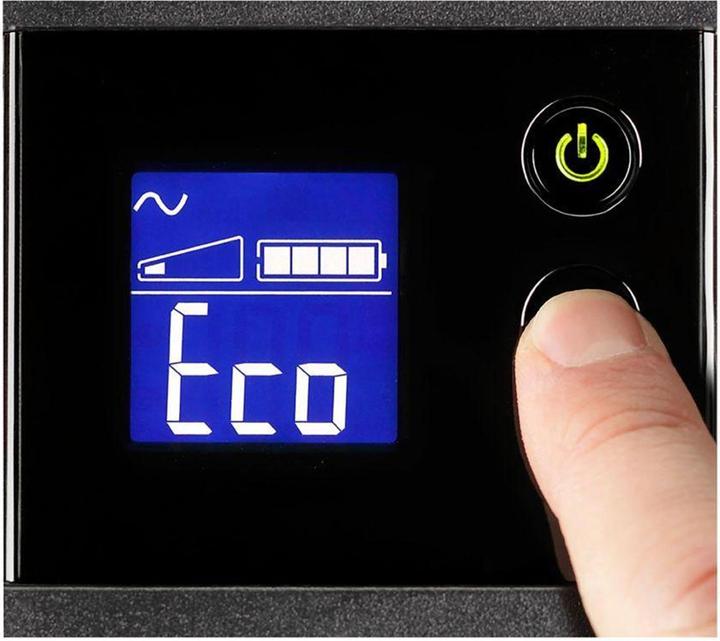

The Eaton Ellipse PRO 650-1600VA is a line-interactive UPS specifically designed to protect workstations with demanding applications. The Ellipse PRO features an LCD display for real-time status monitoring and measurements. It also includes EcoControl outlets that allow for energy savings of up to 20 percent, as well as Advanced Surge Reduction (ASR) – surge protection in accordance with the requirements of the IEC 61643-1 standard.

Key specifications

Operating time at full load
9 min
Model
Desktop
Scope of application
Server room
Plug type
C14
Item number
9962912

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
ELP1600DIN
Release date
22.10.2018
External links
Manufacturer's site (de)
May include power adapter
Yes

UPS properties

UPS type
Line-interactive UPS
Power output
1000 W
Output power capacity
1600 VA
Model
Desktop
Rack Unit
2U

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Server room

Connector plug

Plug type
C14

Connections

Connections
Ethernet, USB 2.0
USB ports
USB-A
Network connections
RJ45 (1x)
Data ports
PS/2 (1x)

Mains supply properties

input voltage
150 - 285 V
output voltage
230 V
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz

Operating conditions

Maximum operating temperature
35 °C
Operating temperature
0 - 40 °C

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
2 x
Battery weight per cell
2500 g
Voltage
150 V
Capacity
9 Ah
Operating time at full load
9 min
Operating time at half load
9 min

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Cable set, Software, UPS
Items per sales unit
1 x

Product dimensions

Height
275 mm
Weight
11.30 kg
Width
82 mm
Length
390 mm

Package dimensions

Length
49 cm
Width
33.50 cm
Height
15 cm
Weight
12.42 kg

30-day right of return
24 Months Warranty (Bring-in)
