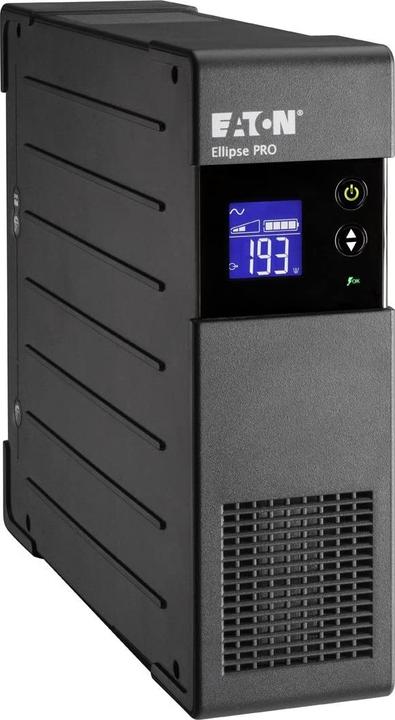

Eaton Ellipse PRO 1200 FR

The Eaton Ellipse PRO 650-1600VA is a line-interactive UPS specifically designed to protect workstations with demanding applications. The Ellipse PRO features an LCD display for real-time status monitoring and measurements. It also includes EcoControl outlets that allow for energy savings of up to 20 percent, as well as Advanced Surge Reduction (ASR) surge protection, in accordance with the IEC 616431-1 standard requirements.

Key Features:

• Energy management
• Output power capacity (VA): 1200 VA
• Output power: 750 W
• Input operating voltage (min): 165 V
• Input operating voltage (max): 285 V
• Output operating voltage (min): 220 V
• Output operating voltage (max): 240 V
• Power supply - input frequency: 50/60 Hz
• Emergency Power Off (EPO): Yes

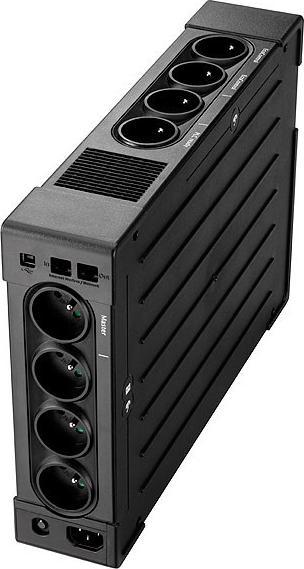

• Connectivity: Number of AC outlets: 8
• AC outlet types: Type E (FR)
• Plug: C14 coupler
• Modem (RJ-11) port: 1
• Number of USB 2.0 ports: 1
• Number of Ethernet LAN (RJ-45) ports: 1

Technical Details:

• Form factor: Rackmount/Tower
• Rack mountable.
