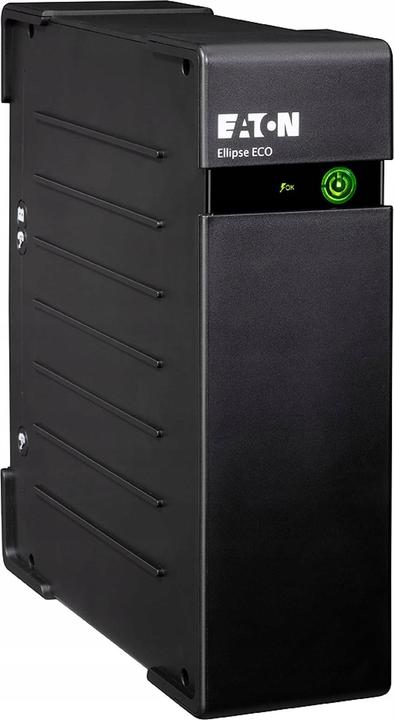

Eaton Ellipse ECO 1600 FR USB

1600 VA, 1000 W, Standby UPS
Ratings
BrandMore from Eaton
Delivered between Sat, 26.7. and Fri, 8.8.
More than 10 items in stock at supplier
free shipping

Product details

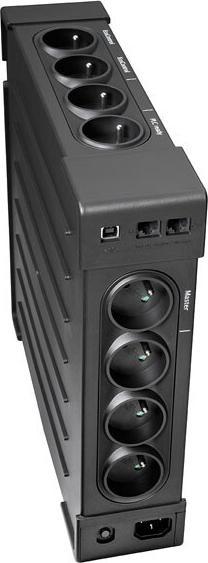

Short info: Eaton Ellipse ECO 1600 FR USB - UPS - AC 230 V - 1 kW - 1600 VA - USB - Output Connectors: 8 - Black Group UPS & Power Supplies Manufacturers Eaton Part no. No. EL1600USBFR Model Eaton Ellipse ECO 1600 FR USB EAN/UPC 3553340621611 Product Description: Eaton Ellipse ECO 1600 FR USB - UPS - 1 kW - 1600 VA Device Type UPS - external Weight 7.8 kg Input voltage AC 230 V Output voltage AC 220/230/240 V Power capacity 1 kW / 1600 VA Input connectors 1 x power IEC 60320 C14 Output connectors 4 x power 3-pin (France/Belgium) (UPS and surge) 4 x power 3-pin (France/Belgium) (surge) Battery Lead acid Network USB Color Black System requirements Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7 Dimensions (width x depth x height) 8.1 cm x 31.2 cm x 30.5 cm Detailed Details General Equipment Type UPS - external Color Black Power Supply Input voltage AC 230 V Input voltage range.

Key specifications

Model
Desktop
Scope of application
Server room
Plug type
CEE 7/4
Item number
15802215

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
EL1600USBFR
Release date
6.5.2021
External links
Manufacturer's site (de)

UPS properties

UPS type
Standby UPS
Power output
1000 W
Output power capacity
1600 VA
Model
Desktop
Rack Unit
2U

UPS functions

UPS protection functions
Overvoltage protection, Protection for Modem/Fax/DSL

Application range

Scope of application
Server room

Connector plug

Plug type
CEE 7/4

Connections

Connections
RJ11, RJ45
USB ports
USB-A
Network connections
RJ11 (1x), RJ45 (1x)

Mains supply properties

input voltage
161 - 284 V
output voltage
220 - 240 V
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
VRLA
Battery size
Device specific
Number of cells
2 x
Battery weight per cell
2510 g
Voltage
230 V
Operating time at half load
11 min

Origin

Country of origin
China, Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
USB cable - external
Items per sales unit
1 x

Product dimensions

Height
305 mm
Weight
7.80 kg
Width
81 mm
Length
312 mm

Package dimensions

Length
36 cm
Width
14 cm
Height
39 cm
Weight
8.50 kg
