Eaton 9SX3000 Uninterruptible Power Supply (UPS) Double Conversion (Online) 3 kVA

2700 VA, 3000 W, Online double converter UPS
Ratings
BrandMore from Eaton
Delivered between Thu, 10.7. and Fri, 18.7.
Only 3 items in stock at supplier
free shipping

Product details

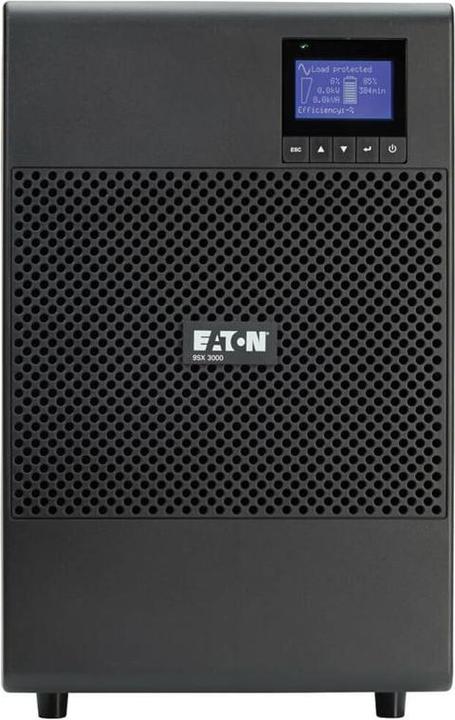

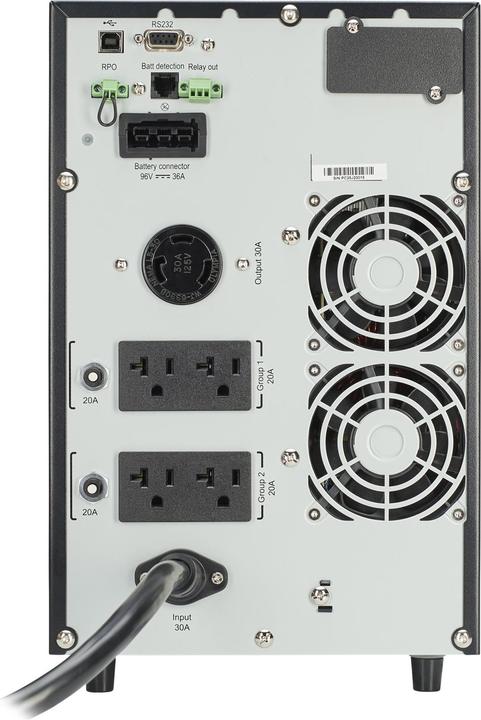

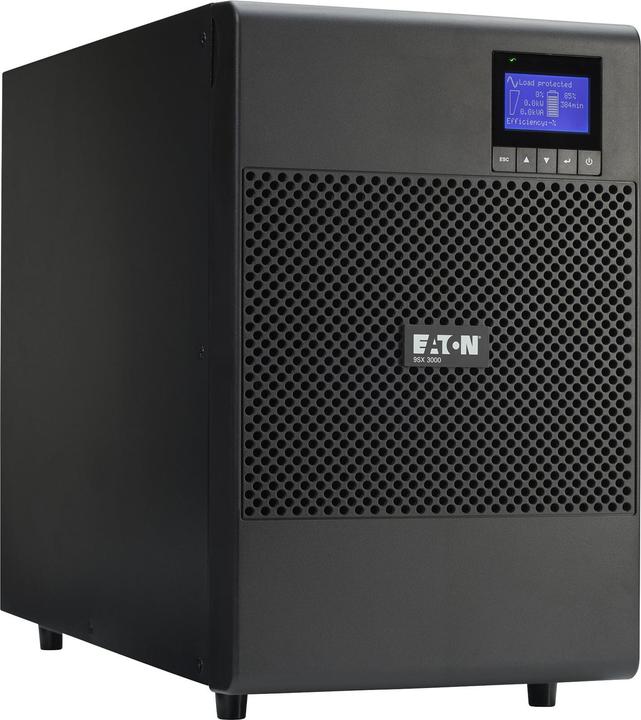

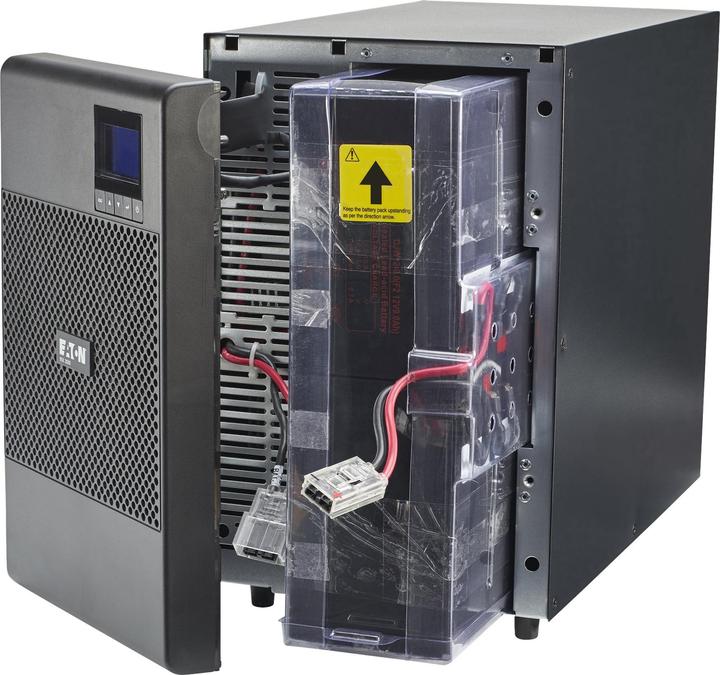

Eaton 9SX 3000 Tower 120VAC version. The Eaton 9SX protects critical applications from unpredictable power problems such as computer failure, data loss, or work interruption by providing clean uninterruptible power. A graphical, multi-language display offers extensive, easy configuration options. The Eaton 9SX increases battery life through active battery management (ABM). It features Class 1 (VFI-SS-111) online double conversion technology, a power factor of 0.9, RS232 and USB interfaces, one relay output, and a terminal block for remote power off/EPO. It also includes HotSwap batteries and an MS slot for communication cards (network, relay, or ModBus) with multiple load segments. Included in delivery: UPS, cable set, software.

Key specifications

Operating time at full load
6 min
Model
Desktop
Scope of application
Server room
Plug type
NEMA L5-30P
Item number
21174581

General information

Manufacturer
Eaton
Category
UPS
Manufacturer no.
9SX3000
Release date
13.6.2022

UPS properties

UPS type
Online double converter UPS
Power output
3000 W
Output power capacity
2700 VA
Model
Desktop
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Server room

Connector plug

Plug type
NEMA L5-30P

Connections

Connections
RS-232, USB
USB ports
USB-A
Data ports
RS-232 (1x)

Mains supply properties

Electrical safety
Due to the high power, this device requires a socket outlet fused with 16 amperes (type 23). If no suitable socket is available, the conversion must be carried out by an authorised installer.
input voltage
60 - 144 V
output voltage
120 V
Input frequency
40 / 70 Hz
Output frequency
50 - 60 Hz
Efficiency full load
89 %
Efficiency battery operation
89 %

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Operating humidity
0 - 95%
Max. noise level
50 dB

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
4 x
Battery weight per cell
800 g
Voltage
120 V
Operating time at full load
6 min
Operating time at half load
15 min

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

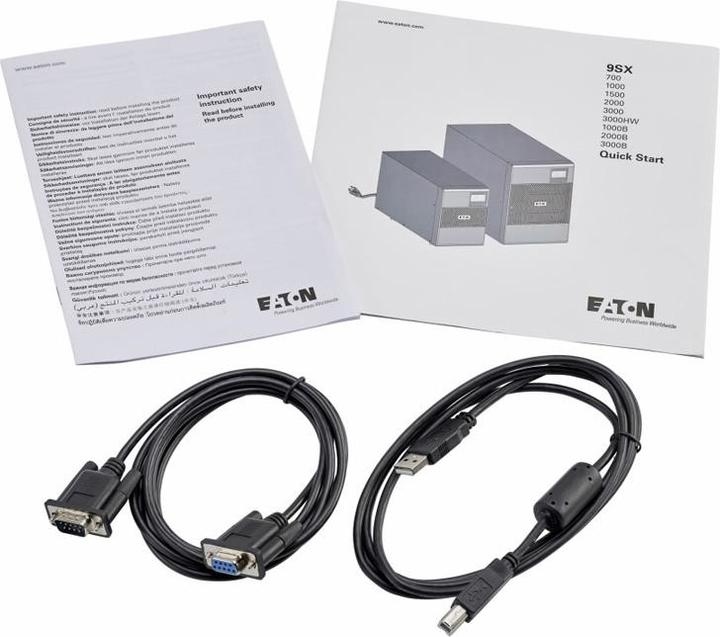

Instruction manual, RS-232 Cable
Items per sales unit
1 x

Product dimensions

Height
346 mm
Weight
33.40 kg
Width
214 mm
Length
412 mm

Package dimensions

Length
57 cm
Width
32 cm
Height
49.40 cm
Weight
38.20 kg
