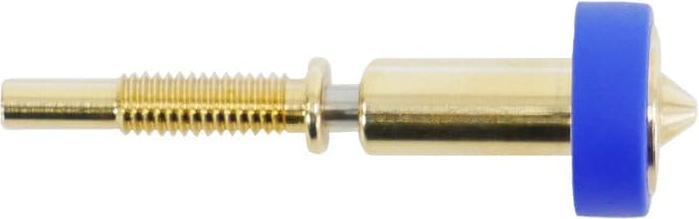

E3D Online E3D RapidChange Revo Nozzle Assembly High Flow Boxed 0.6mm

E3D Revo High Flow Nozzles

3D printing with high throughput is just a 30-second nozzle change away! Achieve high-flow results thanks to the optimized internal nozzle geometry, all while maintaining the same form factor as a standard E3D Revo. High Flow Nozzles can be used with your existing 40W HeaterCores to maximize your flow rate with standard printing materials.

How does it work? Unlike our previous E3D High Flow Hotends (Volcano and SuperVolcano), the Revo High Flow retains the same form factor as the standard Revo HotEnds; this means you won't need to modify your existing mounts and fan ducts! Revo High Flow utilizes a unique, custom internal geometry to increase the surface area for improved heat transfer to the filament.

Additional nozzle sizes: Revo High Flow allows for higher flow rates for the existing nozzle sizes of 0.40 mm, 0.60 mm, and 0.80 mm, and expands your arsenal with nozzle sizes of 1.00 mm, 1.20 mm, and 1.40 mm.

Volumetric flow rate (based on printing with PLA at 220°C):

• For 0.40 mm nozzles, the volumetric throughput increases by 38% (18 mm³/s)
• For 0.60 mm nozzles, the volumetric throughput increases by 57% (22 mm³/s)
• For 0.80 mm nozzles, the volumetric throughput increases by 64% (28 mm³/s)
• 1.00 mm nozzles have a volumetric throughput of 35 mm³/s
• 1.20 mm nozzles have a volumetric throughput of 37 mm³/s
• 1.40 mm nozzles have a volumetric throughput of 37 mm³/s.
