Dragino LWL02 LoRaWAN Water Leak Sensor Node 868MHz

2Ratings
BrandMore from Dragino
Delivered Mon, 17.8.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

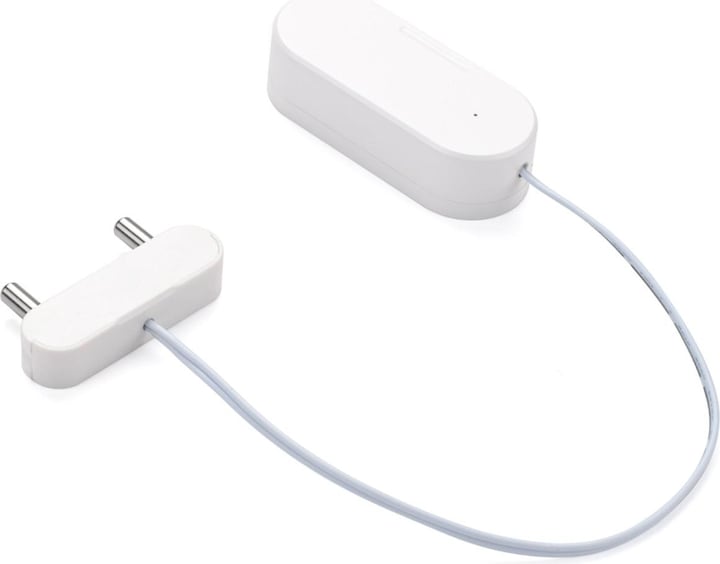

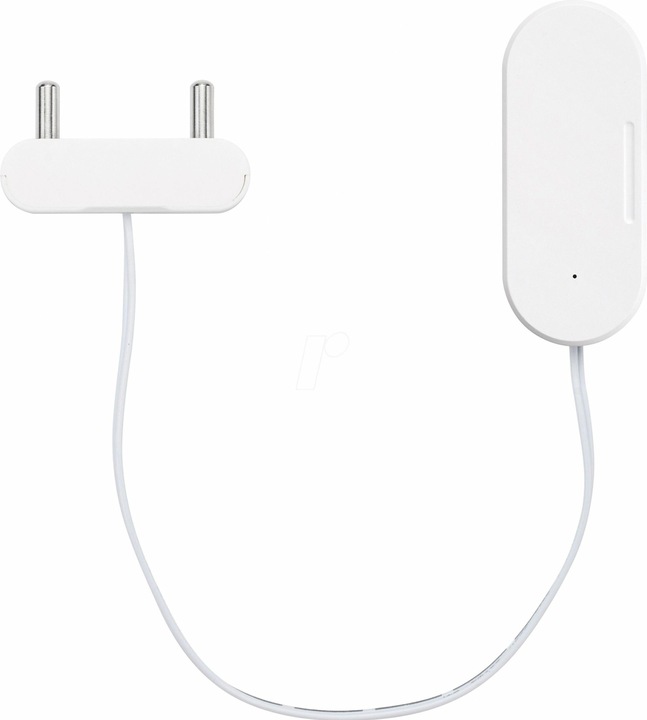

The Dragino LWL02 is a LoRaWAN water leak sensor. It detects water that is present between the measurement contacts and sends the status over the LoRaWAN network. The LWL02 is a small sensor with dimensions of just 69.2 x 29.2 x 15 mm. It is powered by two standard AAA batteries (not included) and is designed for long-term use. This allows for the transmission of approximately 16,000 to 70,000 uplink packets, corresponding to a battery life of two to ten years. The LWL02 periodically sends data, both daily and upon detection of any water leak event.

Each LWL02 comes pre-installed with a set of unique keys for LoRaWAN registrations. Thus, the sensor can be activated with a one-time key on TheThingsNetwork.

Application examples for the LWL02 LoRaWAN water leak sensor:

  • Wireless alarm and security systems
  • Home and building automation
  • Industrial monitoring and control

Technical details:

  • Manufacturer: Dragino
  • Manufacturer SKU: LWL02-EU868
  • Battery operated: 2xAAA
  • Uplink: periodic and upon detection of water
  • Downlink: for changing configuration
  • SX1262 LoRa Wireless Modem
  • LoRaWAN v1.0.3 Class A
  • Frequency: 868 MHz
  • Very low power consumption
  • AT commands for setting parameters
  • Dimensions: 69.2 x 29.2 x 15 mm
  • Weight: 55 g

Delivery includes:
1x LWL02 LoRaWAN water leak sensor Node 868 MHz (batteries not included).

Key specifications

connector plugs
2-pin (not mainboard)

General information

Item number
24874721
Manufacturer
Dragino
Category
Water cooling monitoring
Manufacturer No.
LWL02-EU868
Release date
24.3.2023

Sensor Properties

connector plugs
2-pin (not mainboard)

Origin

Country of origin
China, Germany

Voluntary climate contribution

CO₂ emissions
2.11 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
1x LWL02 LoRaWAN Water Leak Sensor Node 868MHz (batteries not included)

Product dimensions

Length
69.20 mm
Width
40 mm
Height
15 mm
Weight
85 g
