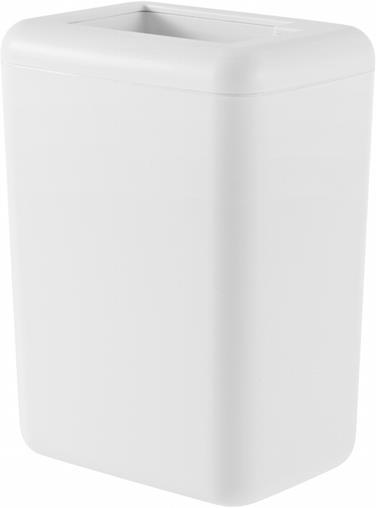

DJI Phantom 3 Battery Warmer

The heater for the Phantom 3 Intelligent Battery is used to preheat the battery in air temperatures from -20℃ to 5℃. It uses the current from the battery to warm the Intelligent Battery to the optimal operating temperature from 5℃ to 35℃. This ensures the safety and performance of the aircraft.

Application:
1. place a fully charged and switched off battery in the warmer.
2. turn the battery on and let it warm up for 5-10 minutes (time varies depending on air temperature). Always keep an eye on the battery.
3. switch the battery off while it is still in the warmer and give it 3 extra minutes to warm up evenly.

Clues:

About 3% to 7% of the battery power is used for warming up.
A three-stage overheating protection mechanism prevents overheating. The warmer is automatically deactivated at temperatures via 35℃, with additional failure limits at 50℃ and 98°C.
Once the desired temperature has been reached, the battery should be switched off to avoid unnecessary draining of the battery. Begin use immediately after removing the battery from the heater.

Technical data:
Intended battery: PH3-4480mAh-15.2V
Air temperature for application: -20℃ to 5℃
Temperature of the switch-off mechanism: 35±5℃
Nominal power: ＜30 W
Input power: 12-17.4 VDC
Input current: ＜1.72 A
