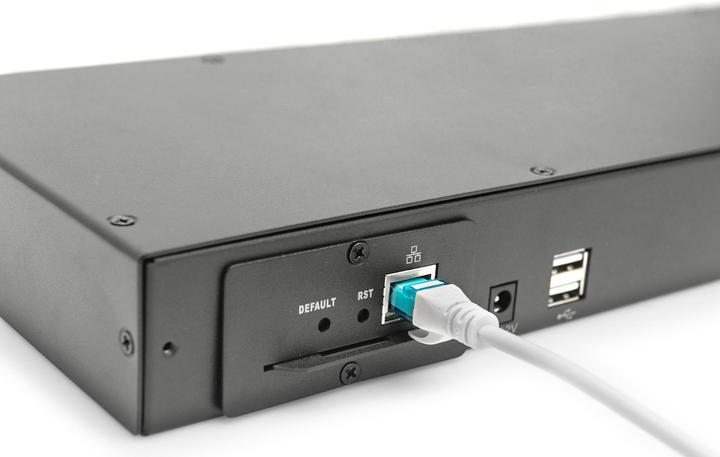

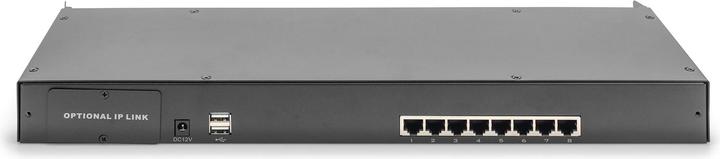

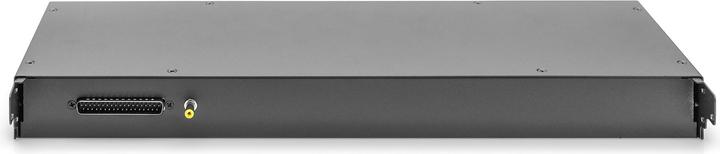

Digitus Cat.5 KVM module 8-port for modularized KVM console

The modular DIGITUS Cat.5 KVM Switch offers a variety of individual configuration options, allowing customization to suit the console's application area. This makes the console cost-effective and enables it to be upgraded or modified with additional modules at any time. The flexible configuration ensures a high level of future-proofing for the console. The modular Cat.5 KVM Switch allows for the connection of up to 8 servers via USB or PS/2 as well as VGA through a Cat.5 adapter with a range of up to 60 meters.

For operation, the DIGITUS 17-inch or 19-inch modular console, keyboard, and the corresponding Cat.5 adapter are required.

Highlights:

• Modular Cat.5 KVM Switch
• Connects up to 16 servers
• Space-saving housing with 1U height
• Compatible with KVM consoles DS-72210 and DS-72211
• No additional software required

Product Type:

• Plug/Connector
• ear-category (ElectroG): relevant, Category 6: small devices of IT and telecommunications technology, Small devices of IT and telecommunications technology B2C

Shipping:

• WEEE: 71839861

Basic Properties:

• Color: Black
• Height: 45 mm
• Length/Depth: 148.4 mm
• Width: 445 mm
• Weight: 3.15 kg

Technical Description:

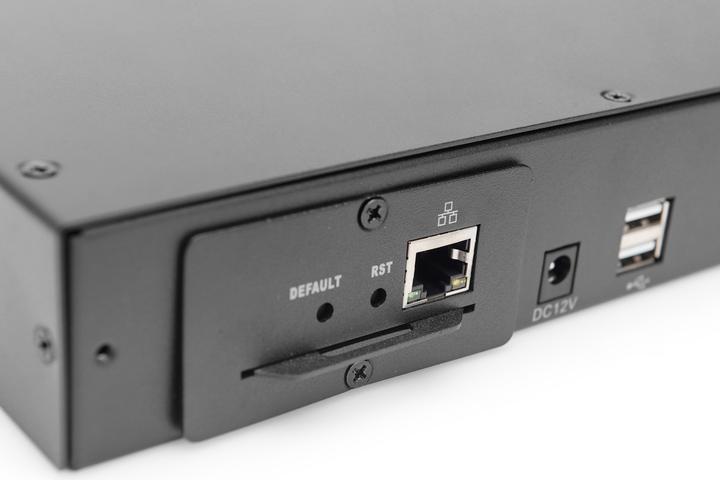

Remote access via IP with the optional IP module DS-51000-1; Remote power wake-up at the target computer; Expansion possible through cascading; Resolution dependent on the console used; Hot-plug support; Keyboard and mouse emulation for error-free computer booting; Autoscan (5 to 90 seconds, selectable); Compatible with USB 2.0 specification.

Delivery Contents:

• Modular Cat.5 KVM Switch, 8-Port
• Quick start guide
• Mounting materials
• 8 x Cat. 5 Dongle CAT 5 KVM module, 8-Port for modularized KVM console.
