Future-oriented standards and high-end quality for your network.

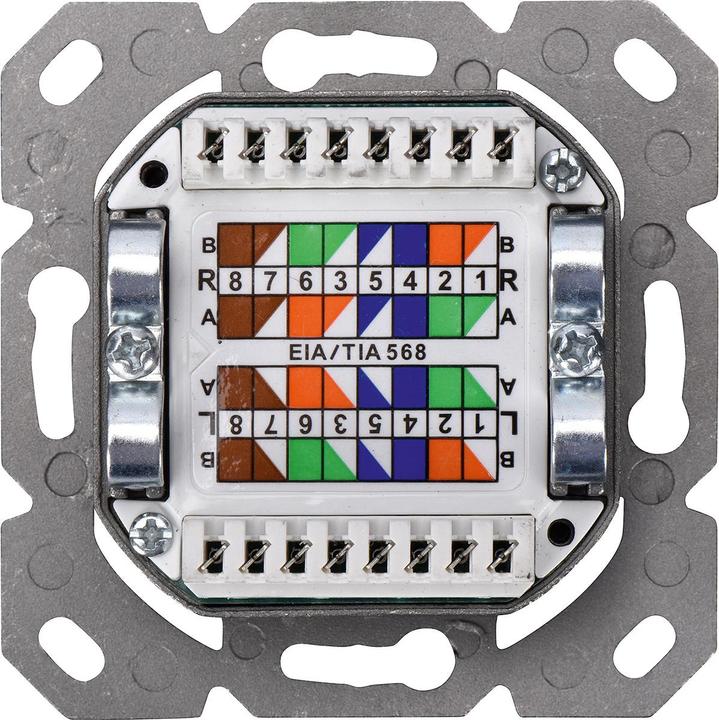

The CAT 6A data sockets from DIGITUS are design-compatible with all common switch programs. They are certified according to CAT 6A ANSI/TIA 568 and ISO/IEC 11801, EN 50173, and feature 2 shielded RJ45 sockets. Cable installation is done via LSA strips, color-coded according to EIA/TIA 568 A and B.
Number of cans | 1 x |
Area of use | Inside |

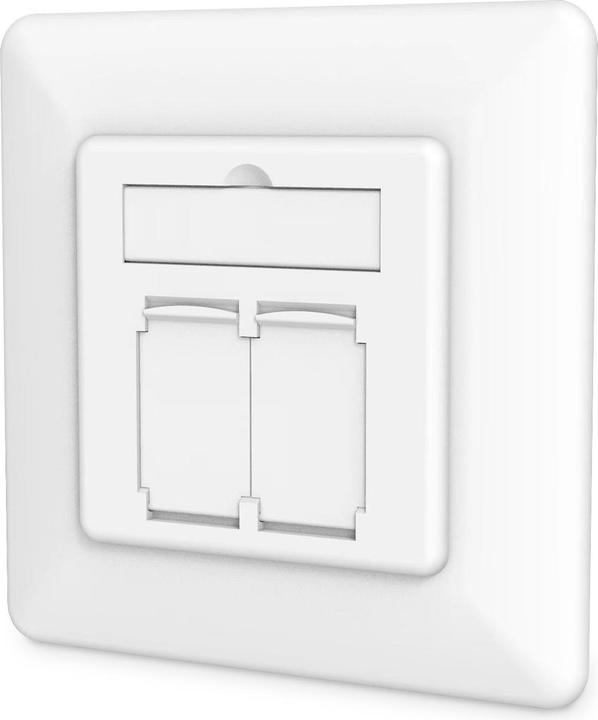

Exact colour description | White RAL9003 |
Mounting type | Flush-mounted |
Item number | 10291586 |
Manufacturer | Digitus |
Category | Sockets |
Manufacturer no. | DN-9008-1 |
Release date | 27.9.2017 |
Sales rank in Category Sockets | 18 of 1499 |
External links |
Colour | White |
Exact colour description | White RAL9003 |
Material group | Metal |
Material | Die-cast metal housing |
Socket type | Network socket |
Series | Standard Due |
Number of cans | 1 x |
Protection type (IP code) | IP20 |
Nominal voltage | 1000 V |
Area of use | Inside |
Mounting type | Flush-mounted |
connector type | Screw connection |
Additional properties | Window |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 9 cm |
Width | 8 cm |
Height | 8 cm |
Weight | 200 g |
Length | 8.90 cm |
Width | 8.80 cm |
Height | 6.60 cm |
Weight | 164 g |
