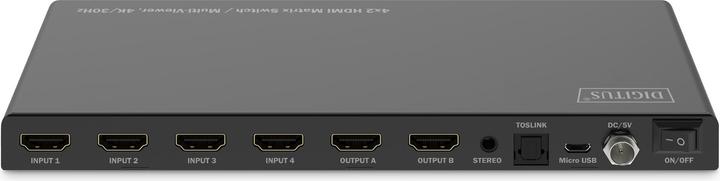

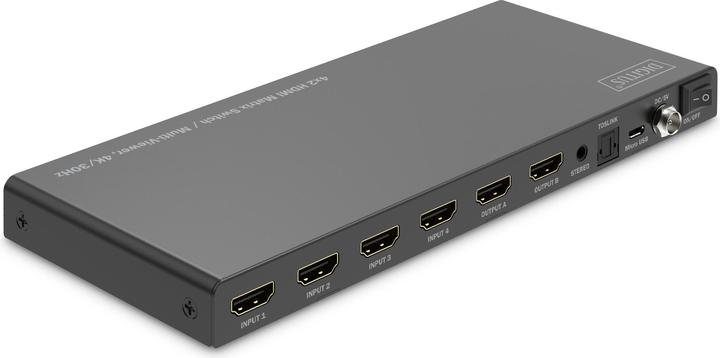

The DIGITUS® 4x2 HDMI Matrix Switch / Quad Multi-Viewer allows for easy switching between up to 4 HDMI sources and 2 playback devices, enabling you to distribute your media content independently. Switch conveniently between signal sources via remote control, directly on the device, or through RS232 control. The multi-viewer function offers 6 modes for individual display of sources (split-screen, PIP) on output A or A & B in parallel. Audio signals can also be extracted and played separately via Toslink or 3.5 mm stereo connection. It supports resolutions of up to 4K/30Hz, and the HDMI output resolution can be individually adjusted using a scaler.
Switch Box Type | HDMI Matrix Switch |
Connectable devices (input) | 4 |
Connectable devices (output) | 2 |
Main device port | HDMI |
Video connections | HDMI IN (4x), HDMI OUT (2x) |
Audio Connections | Jack 3.5mm (1x) |
Exact USB ports | Micro USB-A 2.0 (1x) |
Item number | 45662620 |
Manufacturer | Digitus |
Category | Switch box |
Manufacturer no. | DS-55345 |
Release date | 14.5.2024 |
Sales rank in Category Switch box | 51 of 1201 |
External links | |
May include power adapter | No |
Connectable devices (input) | 4 |
Switch Box Type | HDMI Matrix Switch |
Connectable devices (output) | 2 |
Max. picture resolution | 3840 x 2160 pixels |
HDMI version | 1.4 |
Max. data transfer rate | 1275 MB/s |
Refresh rate | 30 Hz |
Main device port | HDMI |
Video connections | HDMI IN (4x), HDMI OUT (2x) |
Audio Connections | Jack 3.5mm (1x) |
USB ports | Micro USB-A |
Exact USB ports | Micro USB-A 2.0 (1x) |
Data ports | IR Out (1x) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece, External mains adapter, Wireless remote control |
Length | 9.10 cm |
Width | 21.40 cm |
Height | 1.85 cm |
Weight | 450 g |
Length | 29.90 cm |
Width | 24 cm |
Height | 6.20 cm |
Weight | 900 g |
