DigiTOOLS TP-580TXR Transmitter

1Ratings
Delivered between Thu, 10.7. and Tue, 15.7.
More than 10 pieces in stock at third-party supplier
Supplied by
JACOB DE
free shipping

Product details

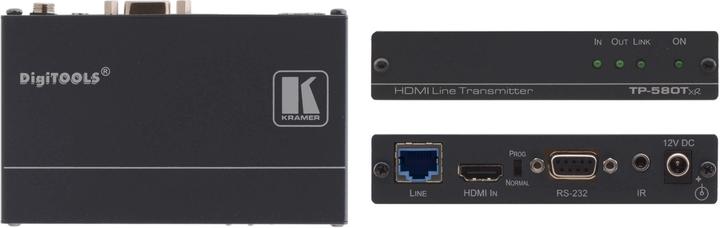

The TP-580TXR is an extended range, HDBaseT twisted pair transmitter for HDMI, bidirectional RS-232, and IR signals. The TP-580TXR inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580RXR receiver.

  • Max. data rate: 10.2Gbps (3.4Gbps per graphic channel).
  • HDTV compatible.
  • HDCP compliance.
  • HDBaseT technology.
  • HDMI support: Deep Color, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC.
  • 3D pass-through.
  • EDID pass-thru: Passes EDID signals between the source and display.
  • 2K and 4K support.
  • Bidirectional RS-232 and IR interface: Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit.
  • System range: Up to 130m (430ft) in normal mode; up to 180m (590ft) in ultra mode (1080p @60Hz @24bpp) when using BC-HDKat6a cables.
  • Cable: For optimum range and performance using HDBaseT, use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution, source, and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
  • Indicators: Status LEDs for input, output, link, and power.
  • Compact DigiTOOLS: 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter.

Key specifications

Switch Box Type
HDMI splitter
Main device port
HDMI, RS-232
Video connections
HDMI (1x)
Audio Connections
HDMI (1x)
Item number
23788670

General information

Publisher
Kramer
Category
Switch box
Manufacturer no.
50-80021190
Release date
19.4.2021
External links
Manufacturer's site (de)

Switch box properties

Switch Box Type
HDMI splitter
Max. picture resolution
3840 x 2160 pixels
Max. data transfer rate
425 MB/s

Connection main unit

Main device port
HDMI, RS-232

Connection to external devices

Video connections
HDMI (1x)
Audio Connections
HDMI (1x)
Data ports
RS-232 (1x)
Network connections
RJ45 (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Optional

Product dimensions

Length
7.60 cm
Width
12 cm
Height
2.40 cm
Weight
600 g

Package dimensions

Length
16.20 cm
Width
12.50 cm
Height
8.90 cm
Weight
660 g

30-day right of return
24 Months Warranty (Bring-in)
